GL-D0660XDZ-M
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

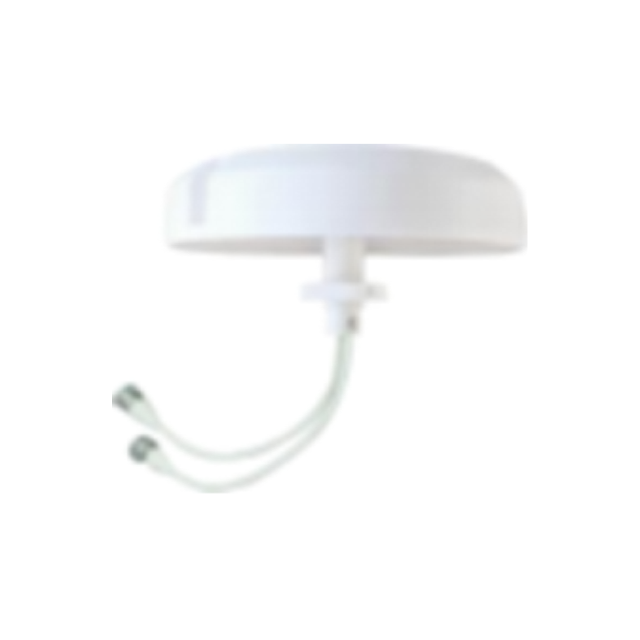

Item | Indoor Ceiling Antenna |
PN | GL-D0660XDZ-M |
Frequency Range (MHz) | 617-960/1710-2700/3300-3800/4900-6000 |
Polarization | Horizontal |
Passive Intermodulation | @2×43dBm ≤-150dBc |
V.S.W.R | ≤2.0 |
Gain (dBi) | 4/5/6/6 |
RF Connector | 2*4.3-10F |
Dimension（mm） | Φ207×56 |
Product introduction
1. Ultra-Wideband Frequency Coverage
Supporting 617–960MHz, 1710–2700MHz, 3300–3800MHz, and 4900–6000MHz, this antenna enables multi-network operation with a single indoor ceiling-mounted solution.
2. Optimized for Indoor Wireless Coverage
Designed specifically for indoor environments, the antenna provides consistent signal distribution, making it ideal for large buildings and distributed antenna systems (DAS).
3. Low PIM Performance for High-Quality Signals
With passive intermodulation ≤ -150dBc (@2×43dBm), the antenna minimizes interference and ensures clean, reliable signal transmission in high-density wireless systems.
4. Stable Horizontal Polarization
The horizontal polarization design enhances signal consistency and compatibility with modern indoor communication networks.
5. Compact Ceiling-Mount Design
With a compact size of Φ207 × 56 mm and dual 4.3-10 female connectors, the antenna supports easy installation while maintaining high RF performance.
Application scenarios
Indoor distributed antenna systems (DAS)
Wireless coverage in office buildings
Shopping malls and commercial centers
Transportation hubs and public venues
Indoor multi-band communication systems
FAQ
Q: What frequency range does this ceiling antenna support?
A: It supports 617–960MHz, 1710–2700MHz, 3300–3800MHz, and 4900–6000MHz, covering a wide range of wireless bands.
Q: Is this antenna suitable for indoor use only?
A: Yes, it is specifically designed for indoor ceiling-mounted applications.
Q: What is the maximum gain of this antenna?
A: The antenna provides gain levels of 4/5/6/6 dBi, depending on the operating frequency band.
Q: What polarization does this antenna use?
A: The antenna uses horizontal polarization.
Q: Why is low PIM important for indoor systems?
A: Low PIM reduces signal interference, improving overall network quality and performance in high-density indoor environments.
Q: What RF connectors are available on this antenna?
A: The antenna is equipped with 2 × 4.3-10 female connectors.
