Internal vs External WiFi Antenna: Which Should You Choose?

Choosing the wrong WiFi antenna can easily ruin an otherwise great product. Put an internal antenna in the wrong place, and a battery or metal casing will block your signal entirely; pick the wrong external antenna, and it becomes a fragile component that snaps during shipping or causes unexpected cable attenuation.

Antenna selection isn't just about aesthetics—it directly dictates signal range, enclosure materials, cable losses, and compliance testing costs. Read this guide to  master the key engineering metrics, placement rules, and trade-offs you need to pass FCC/CE testing on the first try and select the exact antenna architecture your hardware demands.

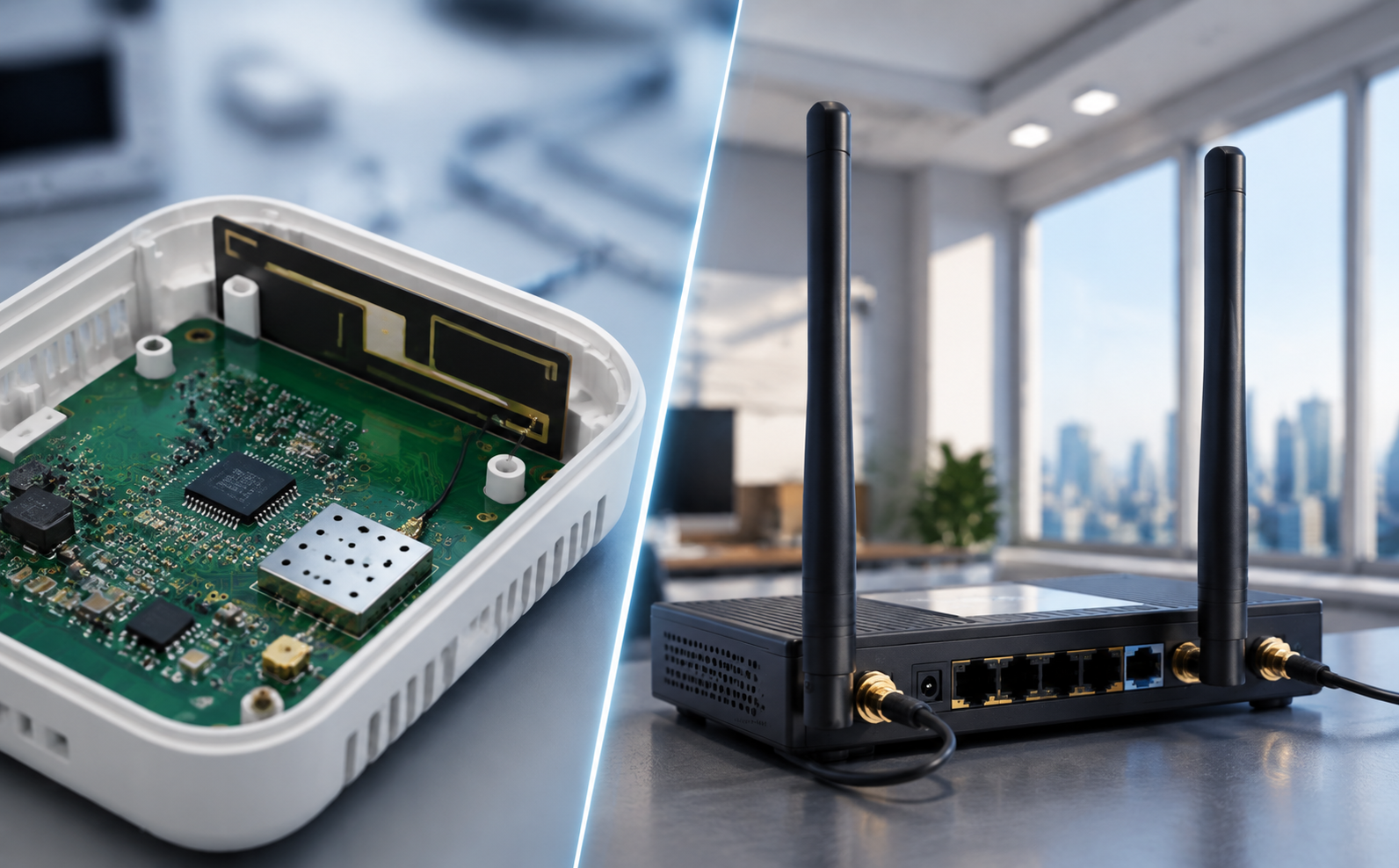

Internal vs External WiFi Antennas: Key Differences

The divide between internal and external WiFi antennas is a simple trade-off: internal antennas sacrifice raw RF performance for compact design, while external antennas isolate radiating elements from board noise to maximize signal range and quality.

Physical Structure & Design

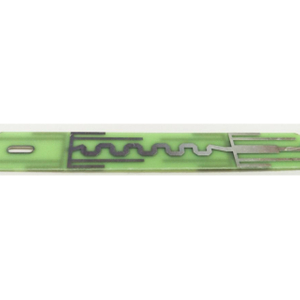

Internal WiFi Antennas: Fabricated as thin copper PCB traces, flexible FPC strips, or stamped brass plates. They are stuck directly onto the inner plastic housing or clipped inside screen bezels, connecting to the motherboard via fragile, micro-coaxial U.FL/IPEX connectors with low-loss thin cables (such as 1.13mm coax).This design minimizes physical footprint but limits the spatial separation required for dense multi-stream WiFi MIMO arrays.

External WiFi Antennas: Consist of half-wave copper dipole elements or PCB rods enclosed in protective plastic shells (radomes). They screw directly onto the outer metal chassis using standardized RP-SMA (Reverse Polarity SMA) or N-Type threaded connectors, isolating the radiating element from the densely packed interior electronics.

Signal Range

Internal WiFi Antennas: Constrained by compact enclosure spaces, built-in PCB/FPC antennas offer lower gain (1.5 dBi to 3.0 dBi). At 2.4 GHz, elements must use folded meandered traces that induce self-canceling electromagnetic fields and dielectric losses, cutting radiation efficiency to 40%–60%. At 5 GHz/6 GHz, higher frequency signals face heavy attenuation directly through device enclosures.

External WiFi Antennas: Leveraging larger physical apertures, external dipole rods achieve higher gain ratings of 5.0 dBi to 9.0+ dBi. Their physical size accommodates full quarter-wave 2.4 GHz elements maintaining 85%+ efficiency, while their higher gain compensates for severe 5 GHz/6 GHz path loss by "flattening" the spherical wave into a wide horizontal plane—extending reach up to 50% farther.

Signal Quality

Internal WiFi Antennas: Placed right next to noisy chips, memory modules, and power lines, internal antennas suffer from constant board-level electromagnetic interference (EMI). This internal noise floor can raise interference by 3 to 6 dB and drop Signal-to-Noise Ratio (SNR) below 20 dB, leading to higher packet retransmissions and a 15% to 30% reduction in real-world throughput.

External WiFi Antennas: Positioned outside the casing, external antennas maintain physical isolation from internal board noise. Operating in a cleaner RF environment, they keep the noise floor low (often below -95 dBm), preserve an SNR above 30 to 35 dB, and reliably capture faint signals from distant devices. This interference-free environment allows the router to lock onto maximum WiFi connection speeds

Directional Flexibility

Internal WiFi Antennas: Fixed permanently inside the plastic chassis, internal PCB/FPC antennas offer no physical adjustability. Their orientation is entirely bound to the device's placement, preventing users from manually fine-tuning coverage toward weak signal zones. This leaves spatial optimization entirely to the router's automated WiFi Beamforming.

External WiFi Antennas: Featuring 90° adjustable hinges and 360° rotating joint mounts, external dipole rods allow users to physically change each antenna's angle. Users can set them vertically for single-floor layouts or angle them at 45°/90° for multi-story propagation. This straightforward physical adjustment makes it easier to establish strong links with distant WiFi clients and enhances multi-stream MIMO coverage across different floors.

Maintenance & Upgrades

Internl WiFi Antennas: Fixed inside the enclosure via U.FL/IPEX micro-coaxial connectors, internal antennas offer zero field serviceability. Replacing damaged wiring requires opening the chassis, and the fragile connectors are rated for only 10–30 mating cycles. This non-upgradable design prevents increasing antenna gain to accommodate higher client density or evolving WiFi standards.

External WiFi Antennas: Utilizing standard threaded connectors (such as RP-SMA or N-Type), external antennas allow field technicians to easily replace factory omnidirectional rods with high-gain directional or multi-band antennas. This modular flexibility lets administrators upgrade antenna hardware to support higher WiFi bands or resolve line-of-sight obstructions without replacing the host device.

Feature	Internal WiFi Antennas	External WiFi Antennas
Design Footprint	Hidden / Zero volume	Visible rods
Gain & Range	Low gain (1.5–3.0 dBi)	High gain (5.0–9.0+ dBi)
Interference (SNR)	SNR < 20 dB	SNR 30–35+ dB
Adjustability	Fixed angle	90° tilt / 360° swivel
Upgradability	Internal / Non-upgradable	Threaded ports / Swappable

Where Are Internal and External WiFi Antennas

Commonly Used?

What Makes Internal WiFi Antennas Indispensable?

While external antennas easily win on raw signal range, internal antennas are technically non-negotiable. Beyond clean aesthetics, they solve three critical hardware constraints that external rods physically cannot address:

Space & Form Factor Gatekeeping: Devices like smartphones, laptops, and true wireless earbuds have zero physical clearance for external mounts. Compact FPC/PCB antennas are the only way wireless connectivity can exist in ultra-thin electronics.

Structural Durability & Waterproofing: Protruding antenna rods act as stress points—a minor drop can easily snap the connector or damage the interior circuit board. Internalizing the antenna inside a sealed plastic or composite shell enables shock resistance and IP67/IP68 dust and waterproofing.

Multi-Antenna Array Management: Modern WiFi devices use multiple antennas simultaneously (MIMO technology). Hanging 4 to 8 external rods off a sleek Mesh node or ceiling AP creates massive clutter and physical interference, whereas internal designs easily tile multiple antenna traces around the device perimeter.

Common Use Cases

External WiFi Antennas (Prioritizing Maximum Coverage & Field Serviceability):

• High-Performance & Gaming Gateways: Multi-band flagship routers and central ISP gateways built to push signals through thick concrete walls and across multi-story homes.

• Desktop Workstations & Modular Expansion: Desktop PCs, PCIe network expansion cards, and motherboards where external leads are necessary to transmit signals beyond heavy metal chassis shielding.

• Industrial & Transportation Telematics: Factory automation hubs, agricultural vehicle gateways, and fleet telemetry units operating in high-vibration or high-EMI environments.

• Outdoor & Long-Range Wireless Bridges: Point-to-point wireless link systems, outdoor directional APs, and security camera gateways requiring high-gain coverage over large geographical areas.

Internal WiFi Antennas (Prioritizing Form Factor & Integrated Design):

• Ultra-Portable & Wearable Consumer Electronics: Smartphones, tablets, laptops, smartwatches, and VR headsets, where space is tightly constrained.

• Smart Home & Residential Mesh Systems: Mesh satellite routers, robot vacuums, and smart locks. Built-in antennas give Mesh nodes uniform 360-degree signal without needing users to aim antenna rods, while keeping vacuums and locks fully dust- and waterproof.

• Commercial & Enterprise Indoor APs: Office tile-ceiling APs and hotel in-wall gateways. Internalizing antennas lets the device mount completely flat against ceilings or walls without taking up physical space or getting bumped.

• Compact IoT & Edge Devices: POS card readers, smart electric meters, and medical sensors housed in small, sealed plastic boxes.

When Should You Choose an Internal or External WiFi Antenna?

Choosing between an internal and external WiFi antenna comes down to a simple 3-step decision flow based on your primary hardware constraints:

Step 1: Is the device metal-encased or ultra-compact (phone/wearable)?

YES → Choose Internal Antenna (FPC/PCB antenna)

NO → Proceed to Step 2

Step 2: Do you need maximum range, wall penetration, or detachable upgrades?

YES → Choose External Antenna (RP-SMA Dipole antenna)

NO → Proceed to Step 3

Step 3: Is IP67/IP68 waterproofing or flat ceiling/wall mounting required?

YES → Choose Internal Antenna (Integrated antenna)

NO → Choose External Antenna for the best cost-to-performance ratio

Quick Selection Checklist

Go with Internal Antennas (PCB / FPC) when:

• Strict form-factor constraints: Ultra-compact space (smartphones, wearables).
• Environmental sealing: Dustproof and waterproof requirements (IP67/IP68 smart locks, outdoor sensors).
• Flush mounting: Flat ceiling or wall installation without protruding parts (enterprise APs).
• Zero-user adjustment: Plug-and-play 360° spatial coverage without manual rod adjustments (Mesh satellite nodes).

Go with External Antennas (RP-SMA) when:

• Performance first: Maximum range, line-of-sight distance, and heavy wall penetration (gaming routers, long-range APs).
• Metal shielding: The wireless board is enclosed inside a metal chassis (desktop PCs, industrial control boxes).
• Field upgradeability: Antenna replacement or upgrade without opening the chassis (field-serviceable gear).

Asialeren provides WiFi antenna solutions, including 2.4GHz and 5.8GHz antennas for routers, access points, IoT devices, and industrial applications. Our products support various designs from compact embedded devices to high-performance wireless

systems.

Explore WiFi Antenna Solutions →

Key Engineering Considerations When Designing for Internal vs. External Antennas

Selecting an antenna architecture is only the first decision. During layout and mechanical design, teams must resolve four critical RF physics trade-offs that dictate real-world product reliability.

Clearance & Spatial Isolation

The Design Challenge: WiFi antenna radiating elements require sufficient metallic-free space to minimize near-field distortion and maintain radiation efficiency.

Internal Setup (PCB / FPC): Requires a dedicated copper-free keep-out zone on the mainboard. If space constraints force metallic battery covers, LCD cables, or shielding cans close to the antenna area, engineers can use plastic foam standoffs to increase the physical distance between the FPC antenna and surrounding components, or re-tune the impedance matching circuit to compensate for frequency shifts caused by nearby metal structures and enclosure materials.

External Setup (Dipole Rods): Reduces dependency on internal keep-out areas, freeing up PCB space and physically separating the antenna from board-level noise sources. However, antenna placement, grounding reference, and enclosure materials still need to be considered to maintain optimal RF performance.

Cable Loss

The Design Challenge: Managing signal line attenuation as WiFi transitions to higher 5 GHz and 6 GHz (WiFi 6E/7) bands.

Internal Setup (Direct-to-Board): Connects via direct PCB traces or ultra-short pigtails, eliminating heavy line attenuation for high-frequency, short-range connections.

External Setup (Chassis Bulkhead): Relies on internal micro-coaxial cables and SMA connectors, where cable loss at high frequencies can negate antenna gain. There is no need to awkwardly shift the main RF chip location; simply keep internal pigtail runs short (preferably under 10 cm), or upgrade from standard 1.13 mm micro-coax to lower-loss 1.37 mm or 1.48 mm micro-coax cables for 5 GHz/6 GHz operation.

MIMO Isolation

The Design Challenge: Maintaining high signal isolation (>15–20 dB) and low correlation between multi-stream antenna elements (2x2 to 8x8 MIMO).

Internal Setup (Space-Constrained): Cramming multiple elements inside a tight housing forces mutual coupling and signal cross-talk. Maintain a physical separation of at least 6 cm for 2.4 GHz (or at least 3 cm for 5 GHz). If layout space is too tight to meet these distance thresholds, arrange adjacent antennas in perpendicular orientations (90°cross-polarization—i.e., one vertical and one horizontal), or place a row of grounded copper vias between PCB traces to act as a physical shield.

External Setup (Physically Separated): Bypasses chassis boundary limits entirely, allowing engineers to easily space out physical ports to achieve high spatial separation across multiple streams.

Regulatory Compliance

Engineering Challenge: During FCC and CE certification, manufacturers need to balance time-to-market requirements with laboratory testing costs and compliance risks.

Internal Solution (Customized Radiation Pattern): Customized antennas can affect radiation patterns and SAR performance. Changes to the enclosure design may also impact the final test results. Therefore, the mechanical design should be finalized early, and pre-tested FPC antenna solutions should be preferred to simplify SAR evaluation and reduce certification risks.

External Solution (Modular Certification Approach): External antennas with standard RP-SMA connectors can improve design flexibility and simplify antenna replacement. However, the selected antenna’s actual gain (dBi), antenna type, and installation method must comply with the wireless module’s FCC/CE certification requirements; otherwise, additional evaluation or retesting may still be required.

FAQ

Why does my internal antenna pass RF testing but suffer signal drops inside the final plastic housing?

This is caused by dielectric loading and antenna detuning from the enclosure. Plastic materials, adhesives, and nearby components can shift the antenna’s resonant frequency away from its tuned band. To avoid this, perform final RF impedance matching (π-network tuning) with the device fully assembled in the production enclosure, not only on an open PCB.

Can I convert an internal WiFi antenna design to an external antenna on an existing PCB?

Yes, but it requires RF matching network modifications. You must disconnect or bypass the internal antenna trace/FPC matching component, solder an IPEX/U.FL connector to the RF trace output, and run a micro-coaxial pigtail to an external RP-SMA bulkhead port. Note that altering the RF trace path changes impedance matching and invalidates any existing FCC/CE modular certifications.

How do I choose between an FPC sticker antenna and a custom PCB trace antenna for internal designs?

Use a PCB trace antenna if unit cost is your absolute primary metric and you have sufficient free PCB real estate. Choose an FPC sticker antenna if your board space is tightly constrained, as FPC allows flexible 3D placement inside plastic housings (e.g., sticking to enclosure walls) and provides pre-tuned performance with significantly lower initial RF development risk.

How do I select the right IP waterproof rating for an external Wi-Fi antenna?

Match the rating to your installation environment:

IP65: Standard rain and splashes (sheltered outdoor APs, urban gateways).

IP67: Heavy storms, standing water, or temporary flooding up to 1m (harsh outdoor IoT, marine decks, industrial Wi-Fi bridges).

IP68: Continuous water pressure or harsh washdowns (high-pressure washdown facilities, specialized marine/coastal gear).

For projects requiring reliable wireless performance in different environments, selecting the right antenna design, frequency range, and protection level is essential.
