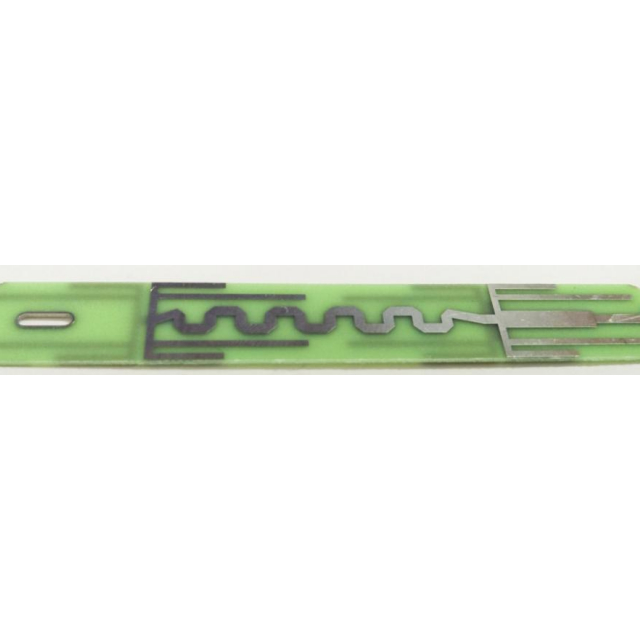

700-2700MHz 3dBi FPC Antenna with IPEX Connector

Product introduction

1. Wide Frequency Coverage (700-2700MHz)

Supports 2G, 3G, 4G/LTE, and IoT bands across a broad 700-2700MHz range, making it a versatile solution for global wireless communication standards.

2. Compact & Flexible FPC Design

The ultra-thin flexible printed circuit (FPC) construction (13.5x95mm) allows easy integration into space-constrained devices, wearables, and enclosures with curved or uneven surfaces.

3. Low VSWR for Efficient Transmission

With VSWR ≤1.5, this antenna minimizes signal reflection and power loss, ensuring reliable connectivity and stable RF performance.

4. Multiple Connection Options

Available with IPEX connector for plug-and-play integration or welding terminals for permanent, cost-effective assembly, offering flexibility for different production needs.

5. Reliable Power Handling

Supports up to 20W maximum input power, suitable for most cellular modules, routers, and IoT devices without risk of overdriving.

Application scenarios

IoT & M2M Devices

4G LTE Routers & Gateways

Telematics & Vehicle Tracking

Wearable Technology

Home Automation & Security

FAQ

Q:What frequency bands does this antenna cover?

A:It covers 700MHz to 2700MHz, including major 2G, 3G, 4G LTE bands (e.g., B1, B3, B5, B7, B8, B20, B28, B40), as well as some 5G sub-6GHz bands.

Q:What is the gain of this antenna?

A:The antenna provides 3dBi peak gain, offering reliable performance for embedded applications where moderate gain is sufficient.

Q: Is the antenna flexible?

A:Yes, it is made of flexible printed circuit (FPC) material, allowing it to bend and conform to curved surfaces inside devices.

Q: What connector options are available?

A:You can choose between an IPEX (U.FL) connector for easy connection to modules, or welding pads for direct soldering onto a PCB.

Q: What is the size of the antenna?

A:The antenna measures 13.5mm wide by 95mm long, making it very compact for internal placement.

Q: What is the maximum input power?

A:The antenna can handle up to 20W of input power, suitable for most cellular and IoT transmitters.
