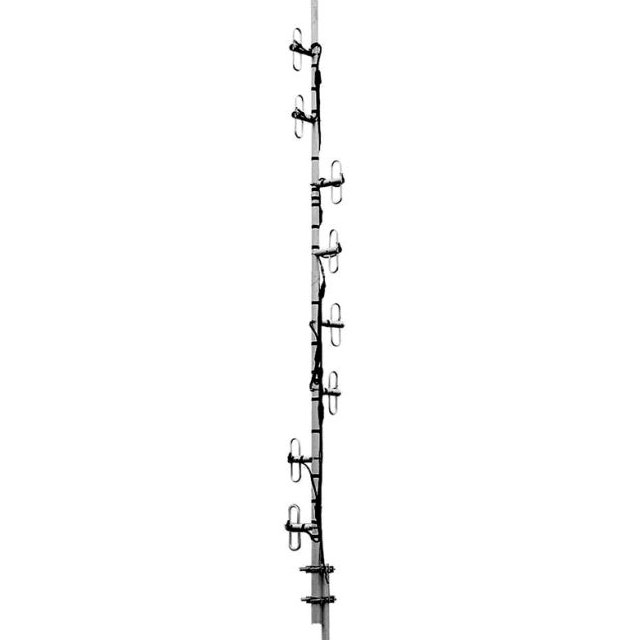

8 Folded Dipole Antenna | |
GL400IIA | |
Electrical Index | |
Frequency-MHz | 400-480 |
Bandwidth-MHz | 16 |
Gain-dBi | Omni 12/Directional 15 |
Vertical Beamwidth-º | 6.5 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Dimensions-cm | 465 |
Weight-kg | 10.6 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
8 Folded Dipole Antenna | |
GL400IIA | |
Electrical Index | |
Frequency-MHz | 400-480 |
Bandwidth-MHz | 16 |
Gain-dBi | Omni 12/Directional 15 |
Vertical Beamwidth-º | 6.5 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Dimensions-cm | 465 |
Weight-kg | 10.6 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
