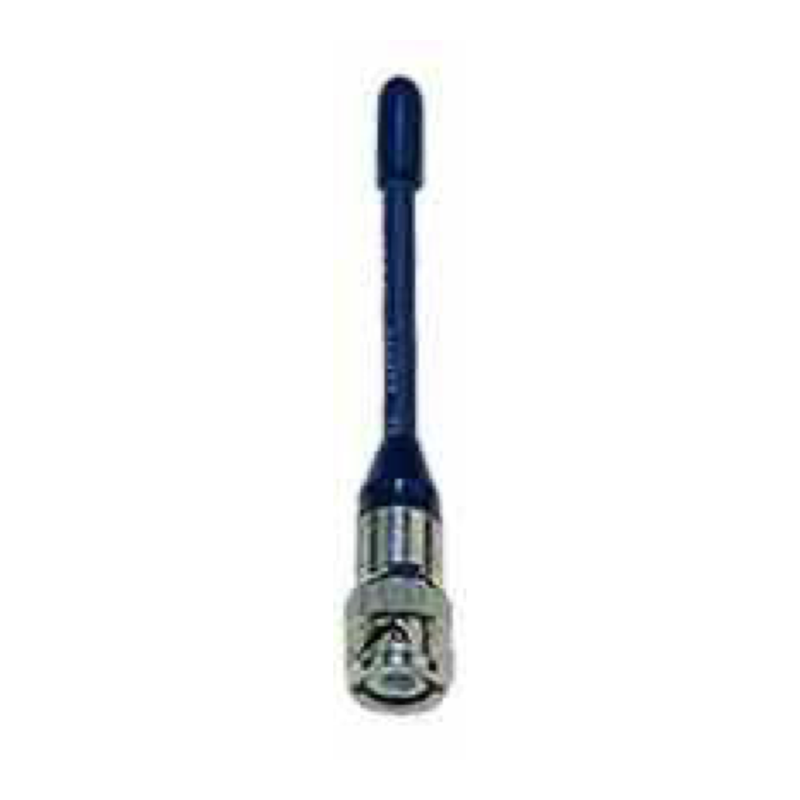

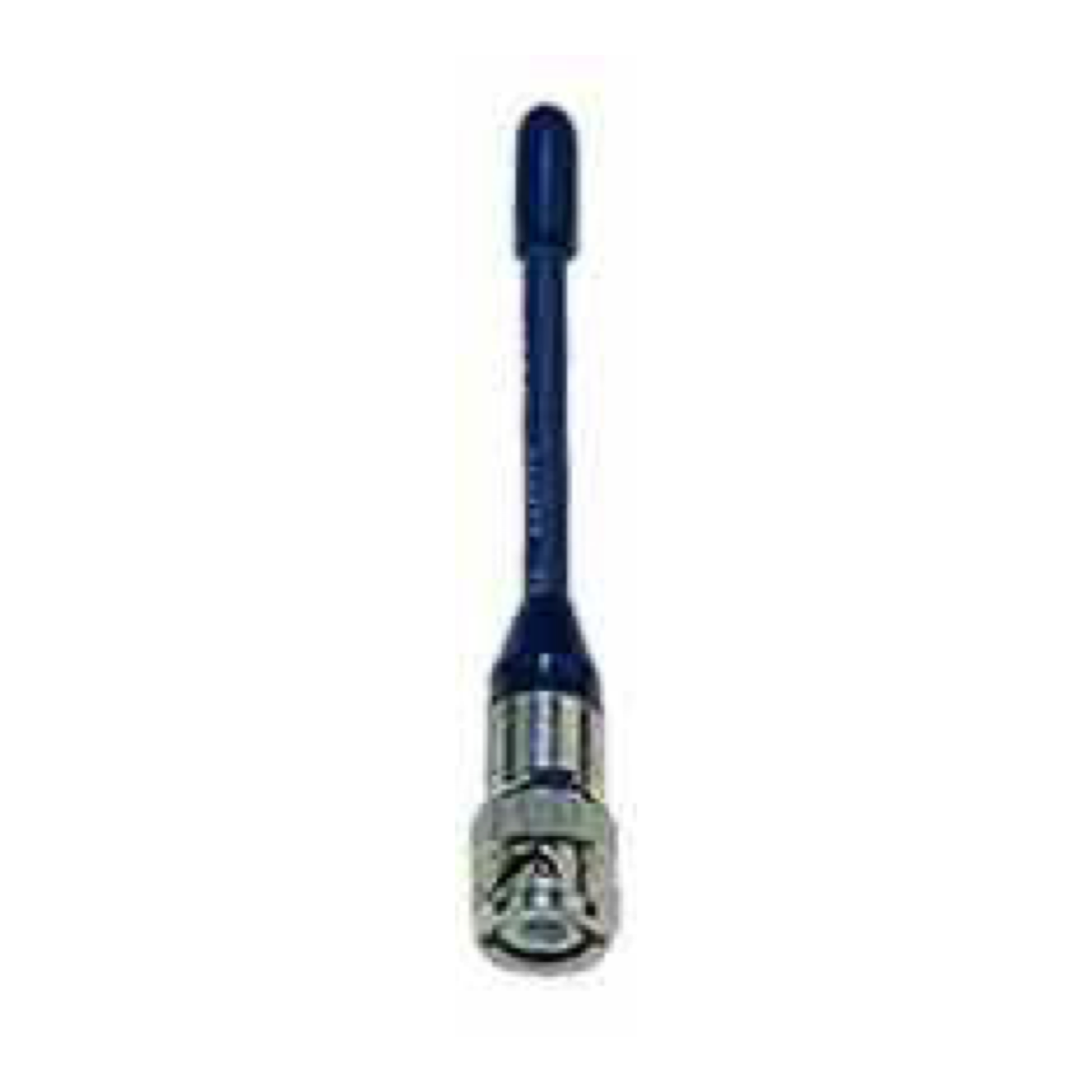

GL401F Terminal Antenna 400-480 MHz

Compare GL401F with GL401C when selecting by antenna clearance.

  • GL401F

  • GLOBAL

  • GL401F.pdf

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Compare GL401F with GL401C when selecting by antenna clearance. Their listed RF specifications and weight match; GL401F is longer and is explicitly described as a whip in the product data.

If minimum listed length is the priority, GL401C is the shorter candidate. For either model, choose the connector before ordering: BNC and TNC are separate configurations, and the TNC version requires a T suffix after the model number.

Model GL401F
Frequency-MHz 400-480
Bandwidth-MHz 16
Gain-dBi 2
VSWR ≤2
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 30
Length-mm 80
Weight-g 20
Connector BNC or TNC(Matches with TNC connector,add T after model)
Remarks Whip shape
