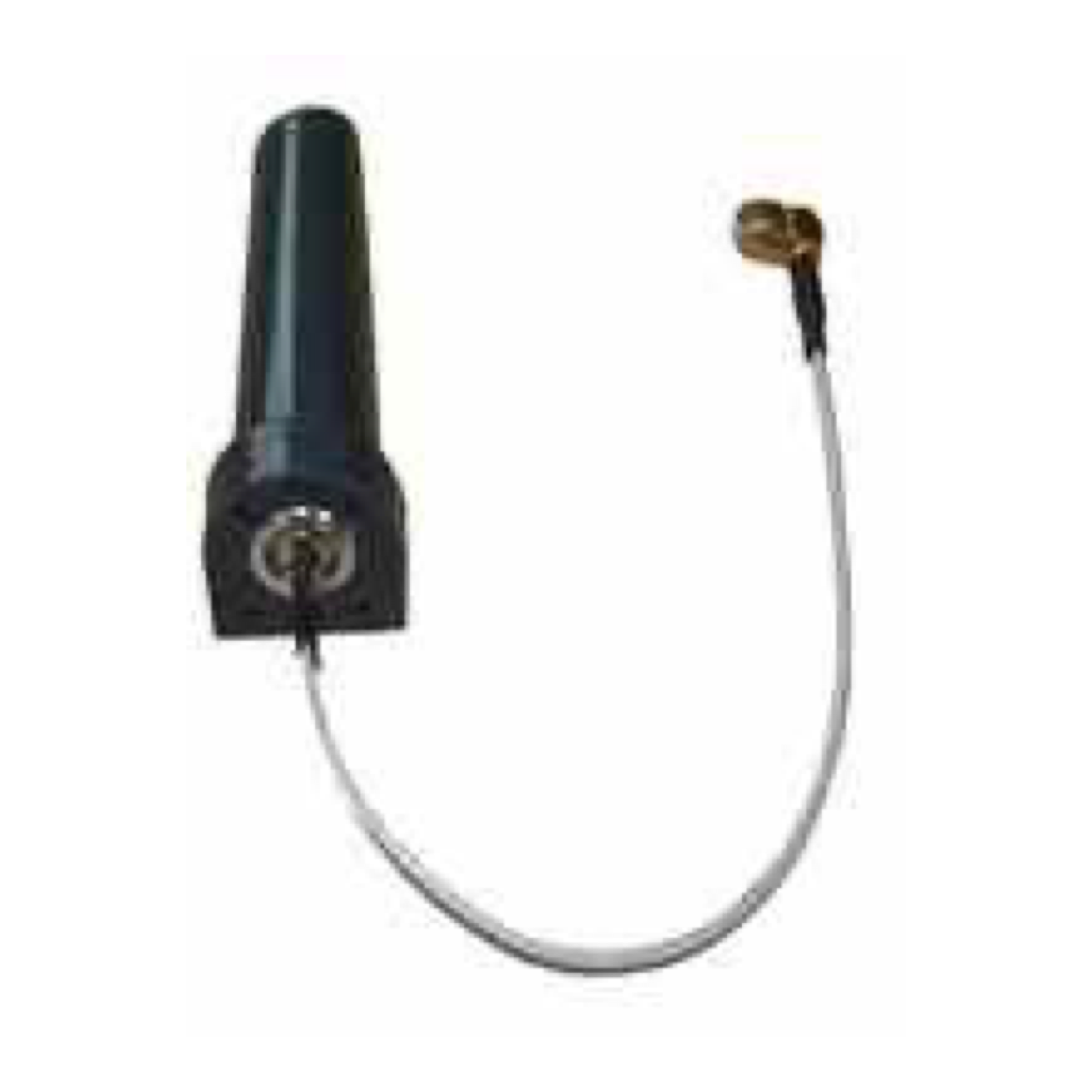

GL450UIB Terminal Antenna 450-500 MHz

Choose GL450UIB over GL450UIA when their matching RF specifications meet the requirement and a shorter, lighter antenna is preferred.

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Choose GL450UIB over GL450UIA when their matching RF specifications meet the requirement and a shorter, lighter antenna is preferred. Both explicitly list SMA male or connector customization.

GL450UI is shorter again and has the same listed weight as GL450UIB, but its connector entry lists SMA male only. The choice within this group is therefore mainly physical clearance and the specified connection, rather than a gain difference.

Model GL450UIB
Frequency-MHz 450-500
Bandwidth-MHz 20
Gain-dBi 2
VSWR ≤2
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 50
Length-mm 82
Weight-g 50
Connector SMA male or customization
