GL401A
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

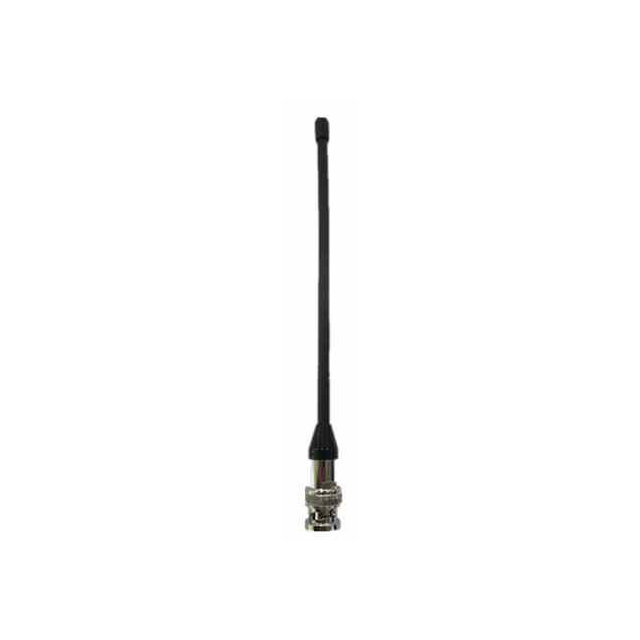

Terminal Antenna | |
GL401A | |
Electrical Index | |
Frequency-MHz | 400-480 |
Bandwidth-MHz | 16 |
Gain-dBi | 2.15 |
VSWR | ≤2 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 30 |
Length-mm | 200 |
Weight-g | 30 |
Connector | BNC or TNC(Matches with TNC connector,add T after model) |
Remarks | Whip shape |
Terminal Antenna | |
GL401A | |
Electrical Index | |
Frequency-MHz | 400-480 |
Bandwidth-MHz | 16 |
Gain-dBi | 2.15 |
VSWR | ≤2 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 30 |
Length-mm | 200 |
Weight-g | 30 |
Connector | BNC or TNC(Matches with TNC connector,add T after model) |
Remarks | Whip shape |
