RF Connector Selection Guide: Types, Scenarios, and Pit Avoidance Guides

In the field of radio frequency and microwave, the radio frequency connector is the core component of the whole system in series. It is different from the conventional power supply and data connector, and is specially responsible for transmitting high-frequency electromagnetic signals from MHz to GHz. It relies on the precision structure to achieve low-loss, low-reflection, and high-shielding signal transmission, which can be called the "signal backbone" of the radio frequency system. Even micron-level processing deviations, wrong selection and use can directly cause signal distortion, equipment failure, and even lead to security risks.

Today, combined with industry application experience, the RF connector selection logic is completely dismantled from the core cognition, mainstream classification, industry-wide application scenarios, and high-frequency use errors. Whether it is R & D, procurement, or on-site operation and maintenance personnel, they can quickly benchmark selection and avoid risks.

First, distinguish: the essential difference between radio frequency connectors and ordinary connectors

Many people easily confuse RF connectors with ordinary wired connectors. The application logic and core requirements of the two are vastly different, and this is a fundamental understanding for selection:

●Ordinary connectors are mostly used for DC power supply and low-frequency data transmission. The core requirements are stable conduction, mechanical firmness, and almost no stringent requirements for impedance matching and signal loss.

●RF connectors are oriented towards high-frequency electromagnetic wave transmission, and impedance matching, insertion loss, standing wave ratio, and electromagnetic isolation are the four core indicators. Machining accuracy, internal structure, and material will directly affect signal quality, making them precision components that cannot be ignored in RF systems.

Simple summary: ordinary connectors ensure "power-on", and radio frequency connectors ensure lossless transmission of high-frequency signals, and the two cannot be replaced at will.

Mainstream RF connector classification and basic parameters

Combined with the market's general specifications, frequency range, and structure, the current mainstream connectors with the largest usage and the widest range of adaptation scenarios in the industry are as follows, covering the full frequency band from low frequency to millimeter wave, with core parameters and basic characteristics:

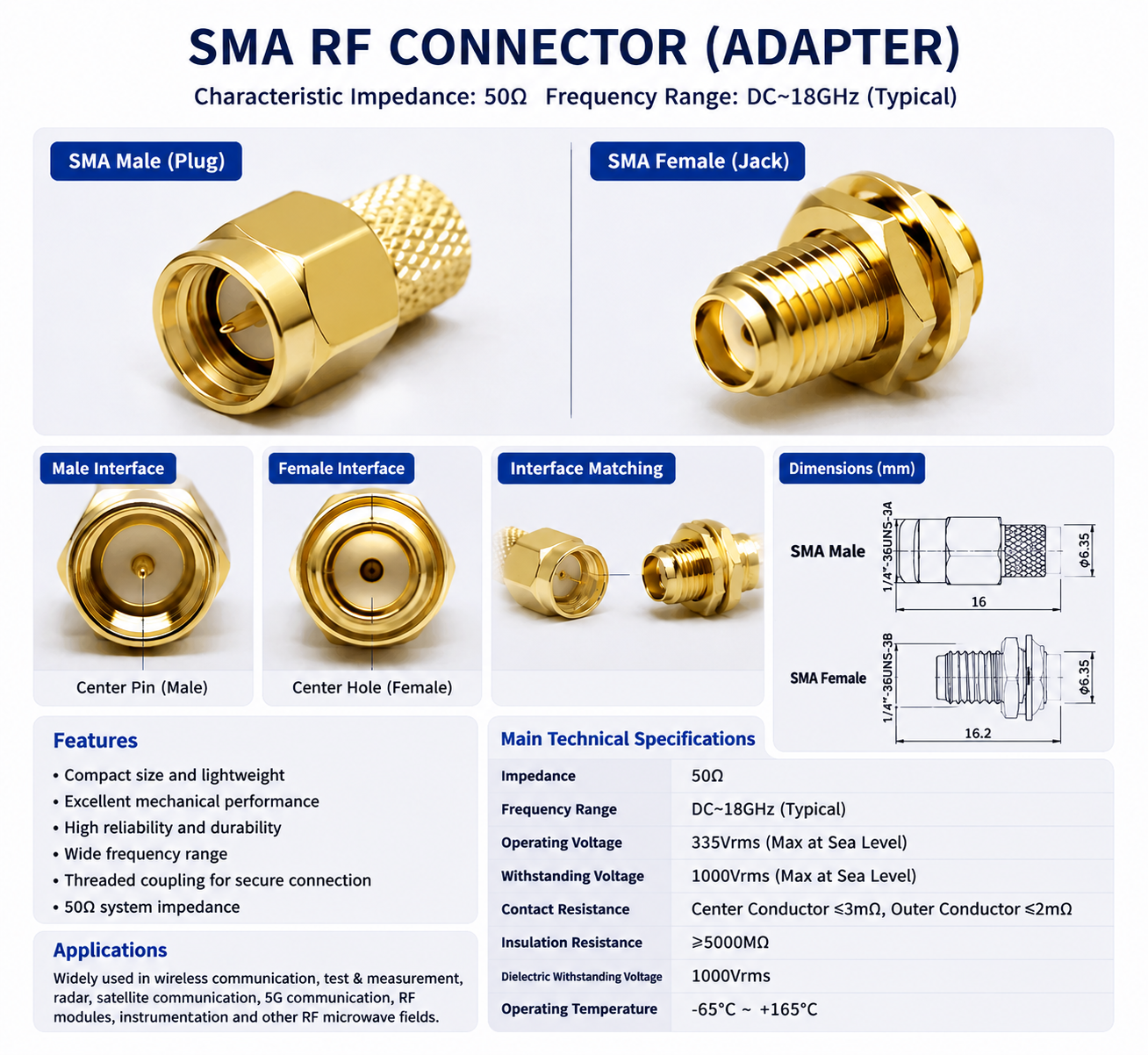

1. SMA connector (universal explosion, civil/industrial first choice)

· Frequency range: regular DC~ 18GHz, high-end precision models can reach DC~ 27GHz

· Standard impedance: mainstream 50Ω

· Structural features: small threaded connection, compact size, flexible installation, outstanding cost performance; subdivision standard SMA and reverse polarity RP-SMA, mainly used to prevent accidental insertion, high appearance similarity, need to focus on distinction.

· Installation form: in-line PCB, flange through the wall, wiring type, etc., suitable for high-density layout scenarios.

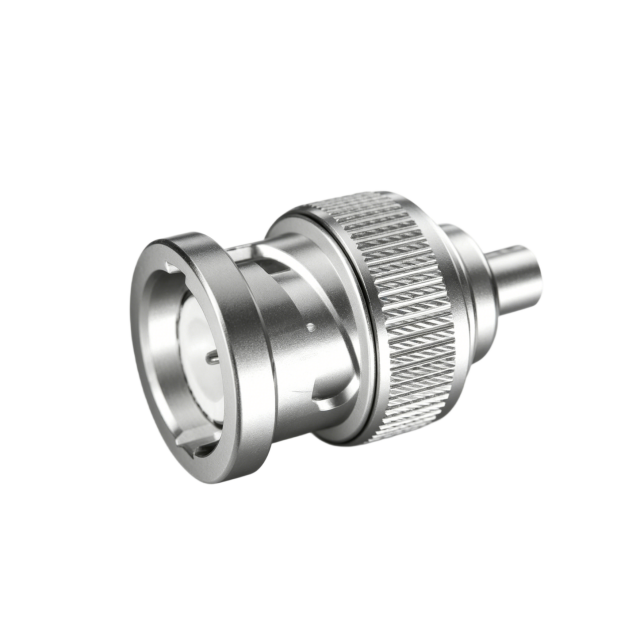

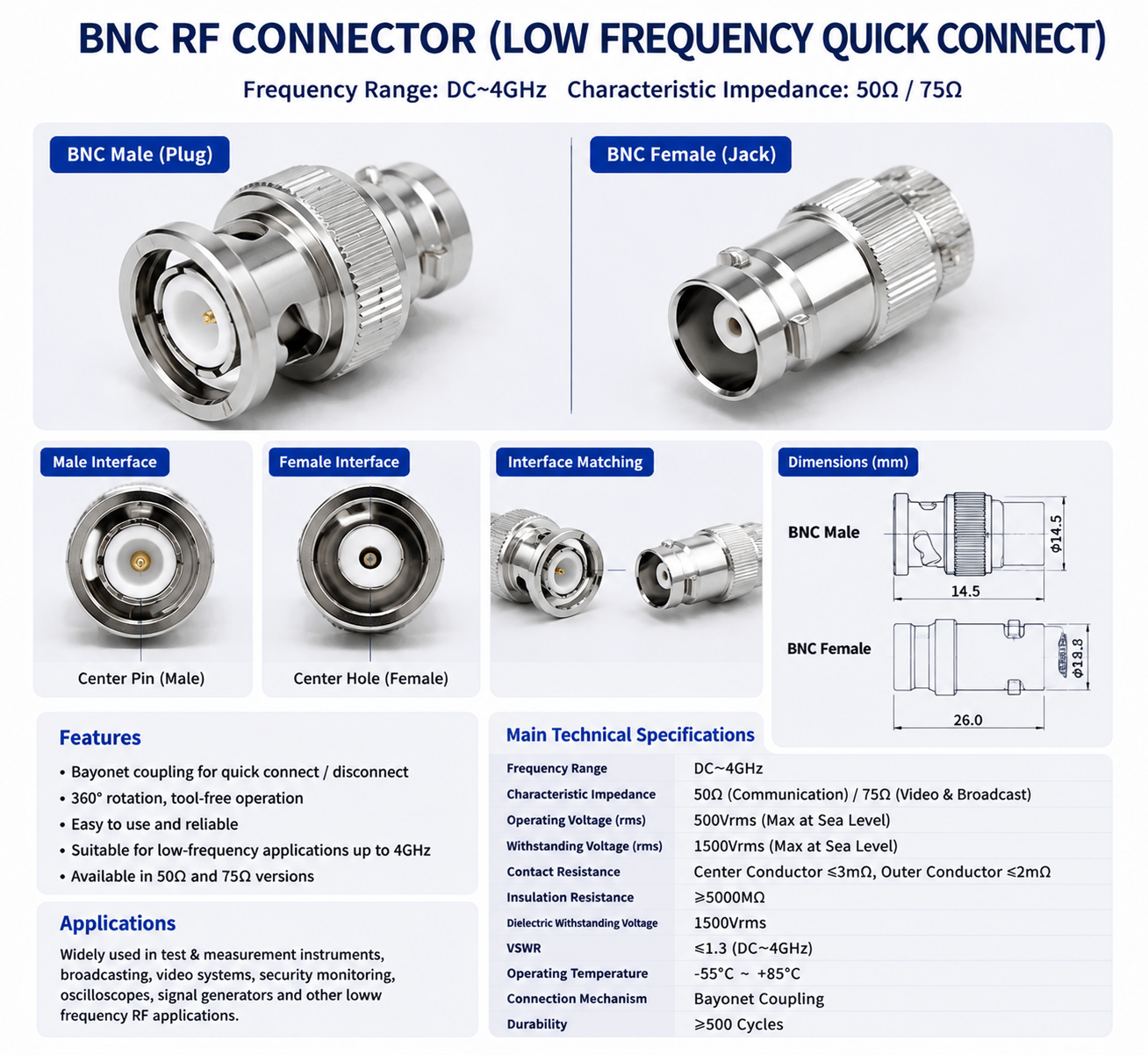

2. BNC connector (low frequency quick plug, commonly used in testing/broadcasting)

· Frequency range: DC~ 4GHz

· Standard impedance: divided into 50Ω (communication field) and 75Ω (video, radio and television field)

· Structural features: bayonet type fast plug and unplug, 360 ° rotation, no tools required for operation, easy to use; the short board is high-frequency sealing and anti-interference ability is weak, not suitable for UHF scenarios.

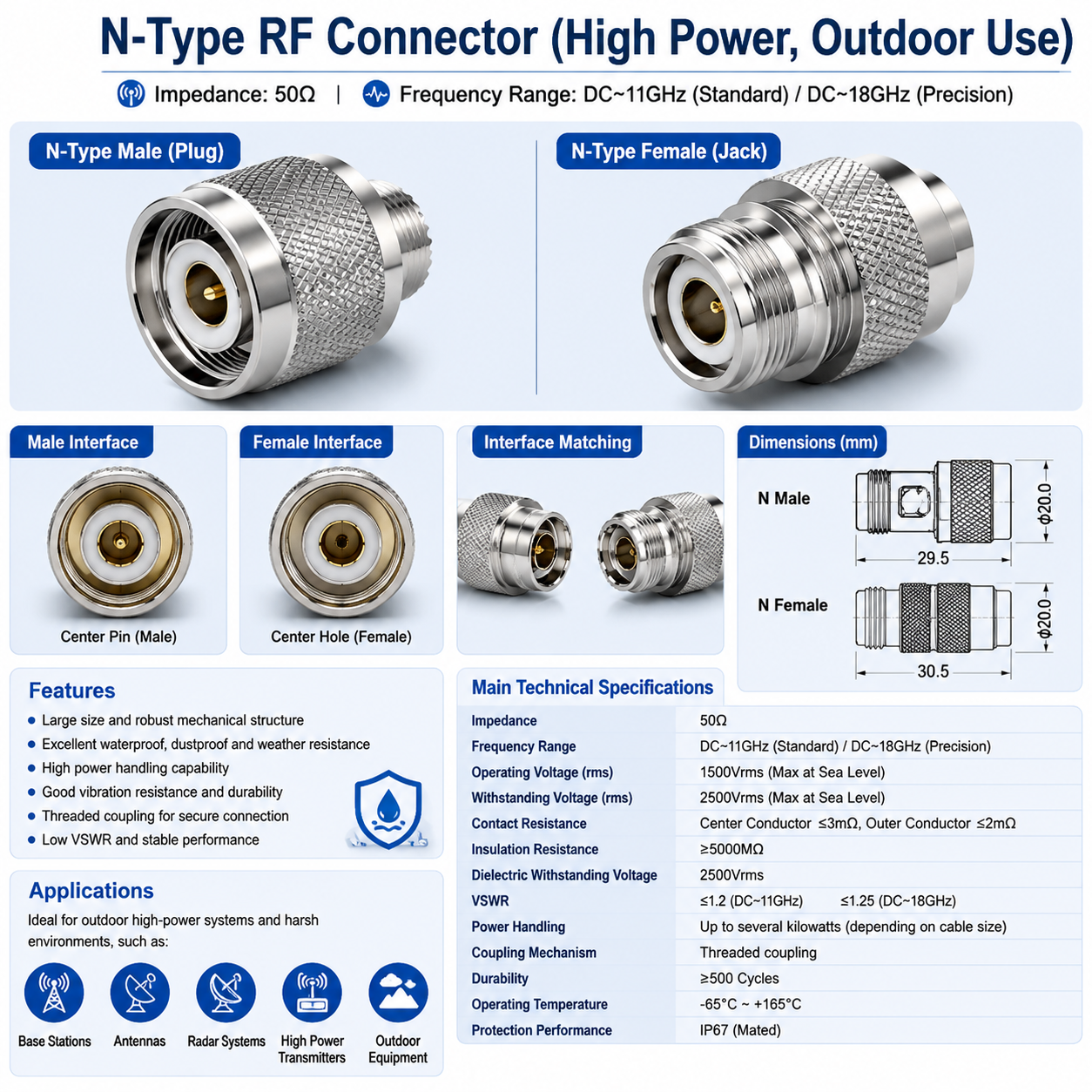

3. N-type connector (high-power, outdoor-specific)

· Frequency range: regular DC~ 11GHz, precision DC~ 18GHz

· Standard impedance: 50Ω

· Structural features: large overall size, strong mechanical structure, excellent waterproof, dustproof, weather resistance, strong power bearing capacity, good anti-vibration effect, is the standard for outdoor high-power equipment.

4. High-frequency precision connectors (for millimeter wave/high-end testing)

Designed for ultra-high frequency and millimeter wave scenarios above 18GHz, the processing accuracy is extremely high, and it is mostly used in precision testing and cutting-edge communication fields.

· 3.5Mm: DC to 26.5GHz, air medium design, compatible with SMA, widely used in laboratory RF testing instruments.

· 2.92Mm (K type): DC~ 40GHz, suitable for high-frequency communication and millimeter wave modules;

· 2.4Mm: DC to 50GHz, for ultra-high-precision scenarios such as satellite communication and high-end millimeter-wave radar.

5. Micro/Quick Connect Connectors

Mainly miniaturized, fast insertion and unplugging, suitable for equipment with limited space and frequent disassembly and assembly:

· MMCX: ultra-small snap structure, DC~ 6GHz, mostly used for small wireless modules and portable devices.

· QMA: SMA upgrade, card lock type quick plug, retain stability while improving disassembly and assembly efficiency;

· SMP: push-in self-locking structure, strong anti-vibration ability, suitable for high-density boards and integrated RF modules.

6. Base station dedicated large size connector

Representative model 4.3-10, 7/16 DIN, large size, high load-bearing power, high protection level, specially for large-scale communication infrastructure such as macro base stations and room sub-systems.

III. Selection guide for industry scenarios: match on demand, reject blind selection

RF connectors are used in communications, automotive, aerospace, test and measurement, industrial medical, and other fields. The performance, environment, and accuracy requirements of different industries vary greatly. The following options are divided into mainstream industries and can be used directly for benchmarking.

(1) Communication industry (5G/6G, with the largest market usage)

Communication is the first major application field of RF connectors, divided into macro base station, indoor distribution, RF module three major plates, a single macro base station RF connector dosage up to 50~ 200.

●Macro base station equipment (AAU/RRU, antenna system) Requirements: high power, outdoor waterproof, high and low temperature resistance, anti-vibration Recommended models: N type, 4.3-10, 7/16 DIN

●Indoor distribution, small base station requirements: compact size, flexible wiring, cost-effective Recommended models: SMA, QMA

●RF function module (power amplifier, filter, combiner) Requirements: miniaturization, suitable for on-board installation Recommended models: on-board SMA, MMCX

(Ii) Aerospace industry (performance requirements ceiling)

This field requires extremely high stability, environmental resistance, and high-density connectivity, and is mostly used in high-end signal transmission scenarios.

●Radar, electronic equipment requirements: high-density integration, low loss, anti-jamming Recommended models: SMP, high-frequency precision series connectors

●Satellite communication (ground station + spaceborne equipment) Requirements: UHF adaptation, ultra-high precision, extreme environment resistance Recommended models: 2.92mm, 2.4mm and other millimeter wave connectors

●Airborne navigation, airborne communication system requirements: lightweight, strong vibration resistance, high reliability Recommended models: sealed SMA, miniature self-locking connector

(III) Automotive electronics industry (with the fastest growth rate)

With the popularity of intelligent driving and vehicles to everything, the demand for in-vehicle RF connectors continues to skyrocket, with the core focusing on radar and in-vehicle communication.

●Automated driving millimeter wave radar (24GHz, 77GHz) Requirements: millimeter wave frequency band adaptation, high stability, anti-vehicle vibration Recommended model: 2.92mm, dedicated vehicle high-frequency connector

●Vehicle to everything, car navigation (GPS/Beidou), car entertainment needs: miniaturization, car high and low temperature resistance, waterproof Recommended models: SMA, MMCX

(IV) Testing and measurement industry (with the highest accuracy requirements)

Network analyzers, oscilloscopes, spectrum analyzers and other instruments, as well as various types of chips and module test fixtures, are the main battlefield for precision connectors.

●Standard test instrument Standard interface Low frequency test (≤ 4GHz): BNC medium and high frequency test (4~ 26.5GHz): SMA, 3.5mm millimeter wave test (> 26.5GHz): 2.92mm, 2.4mm

●Test cables and test fixtures require low standing wave, stable phase, and high plugging and unplugging life. Test-grade special connectors and stable phase cable assemblies are preferred.

(V) Semiconductor & Industrial & Medical Electronics

1. Semiconductor equipment (photolithography, etching, and other RF power supplies): high-power, high-stability N-type, SMA;

2. Industrial Internet of Things, wireless sensing equipment: miniaturized SMA, MMCX, adaptable to low-power wireless modules;

3. Medical equipment (nuclear magnetic, ultrasound, imaging equipment): BNC is selected for low frequency band, and sealed SMA is selected for radio frequency signal module, taking into account cleanliness and stability.

Fourth, high-frequency fatal mistakes inventory: 7 pits that 90% of practitioners will step on

After the selection is completed, installation, use and maintenance are equally critical. Wrong operation can directly damage the connector, affect the operation of the system, and even cause economic losses. Organize the 7 most common misunderstandings in the industry, with correct operation and hazard instructions.

Misunderstanding 1: Screw the threaded joint hard, the tighter the stronger it is

❌ Wrong operation: Use a wrench to tighten the threaded joint vigorously, thinking that the tighter the screw, the better the contact.

✅ Correct operation: After hand screwing to fit, rotate 1/8 to 1/4 turn with a tool. The precision connector needs to strictly follow the standard torque.

⚠️ Potential hazards: Excessive extrusion can lead to deformation of the inner conductor, damage to the dielectric layer, and a sharp deterioration of the standing wave ratio. In severe cases, it can directly cause the joint to slip and be scrapped as a whole.

Misunderstanding 2: Plug and unplug the connector when the device is charged

❌ Wrong operation: plug and unplug the RF connector, replace the antenna or module when powered on and running

✅ Correct operation: power off first, then plug and unplug. The high-power equipment must confirm that the whole machine is powered off and then operate.

⚠️ Potential hazards: Instantly plugging and unplugging will generate static electricity and voltage surges, making it easy to burn radio frequency chips and precision testing instruments, and the maintenance cost is extremely high.

Myth 3: Cross-band mixed connectors, low-frequency connectors are used together with high-frequency connectors

❌ Wrong operation: Transmit signals exceeding the rated frequency with ordinary SMA and BNC

✅ Correct operation: strictly select the type according to the operating frequency of the equipment, and the frequency band must match

⚠️ Potential hazards: When the connector exceeds the rated frequency band, the insertion loss increases significantly, the signal is severely attenuated, and the entire system cannot function normally.

Myth 4: Clean the interface at will and wipe it with your hands/ordinary paper towels

❌ Wrong operation: When the interface is dusty or contaminated with oil, directly touch it with your hands or wipe it with ordinary paper towels.

✅ Correct operation: use anhydrous alcohol with a dust-free cotton swab to gently wipe, dry naturally and then connect; be sure to wear a dust cap on the idle port

⚠️ Potential hazards: Hand grease, tissue fibers, and dust can remain inside the interface, causing poor contact and worsening VSWR and insertion loss.

Myth 5: Connectors are used beyond their rated power

❌ Wrong operation: Low power connector with high power transmitter

✅ Correct operation: reserve a margin when selecting the type, and the rated power of the connector is recommended to be greater than 1.5 times the maximum power of the system

⚠️ Potential hazards: Long-term overload of the joint will quickly heat up, causing the internal structure to be burned, or causing the line to catch fire, posing a potential safety hazard.

Misunderstanding 6: Ignore the life of plugging and unplugging, and use it repeatedly beyond the number of times

❌ Wrong operation: ordinary connector, test connector unlimited repeated plugging and unplugging

✅ Correct operation: Differentiate usage scenarios: conventional commercial connectors have a plugging and unplugging life of about 500 times, and professional test-grade connectors have a life expectancy of about 1,000 times. Replace them in time when they reach their lifespan

⚠️ Potential hazards: After repeated wear and tear, the interface contact resistance continues to increase, the signal transmission is intermittent, and the stability decreases significantly.

Misunderstanding 7: Different brands and connectors of the same type are randomly mixed

❌ Wrong operation: The same connector of different brands is cross-paired and used.

✅ Correct operation: The same brand of male, female, and adapter is preferred for the complete set of equipment

⚠️ Potential hazards: There are differences in processing tolerances between different manufacturers, and it is prone to loose docking, poor contact, and even scratching the internal conductors after mixing.

V. Summary

The RF connector seems to be just a small "connector", but it is the throat of the RF system signal transmission. The core of the selection is always frequency band matching, impedance matching, and scene matching. At the same time, standardize the installation and daily use habits to maximize the performance of the device and reduce the probability of failure.

From civilian wireless equipment, industrial control, to 5G communication, smart cars, and aerospace, the application of RF connectors continues to expand. Shaanxi Xinjiao Technology is deeply involved in the field of radio frequency and microwave, and can provide a full range of radio frequency connectors, cable assemblies and supporting selection solutions. Relying on mature technology and strict quality control, it can meet the needs of different frequency bands and different working conditions.
