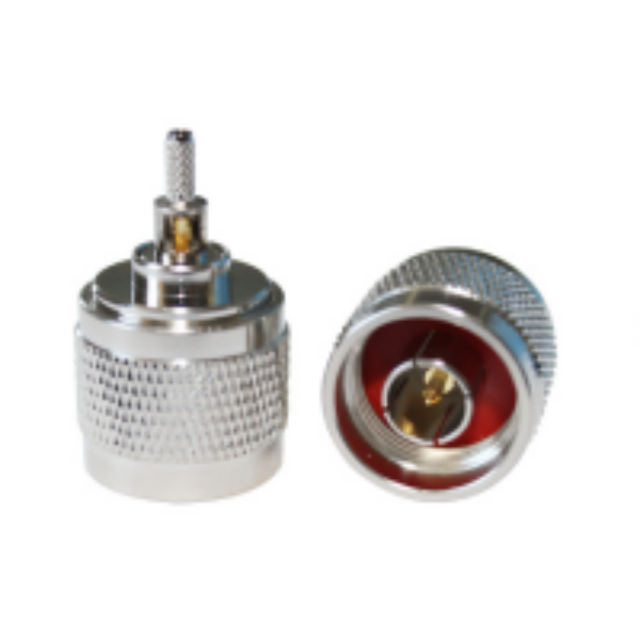

GL-NCJ1.5
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 10 |
Impedance(ohm) | 50 |
VSWR | 1.10 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф20*31.8*4.8 |
Product Introduction
1. Operates at 10GHz frequency with 50Ω standard impedance, ensuring high-speed and compatible high-frequency signal transmission.
2. Boasts ultra-low VSWR (1.10) and 3rd-order PIM ≤-160dBc @ 2x20W, effectively reducing signal reflection and interference.
3. Durable structure: Outer contact with Brass CuSnZn plating and center contact with Brass Ag plating for excellent conductivity and corrosion resistance.
4. Supports ≥500 mating cycles, with recommended coupling torque of 0.7-1.1Nm (max 1.7Nm) for reliable repeated use.
5. Withstands extreme temperatures (-55℃ to +155℃) and 2500V max test voltage, adapting to harsh industrial and outdoor environments.
Application Scenarios
1. 5G base stations and large-scale telecom networks for high-frequency signal transmission and reception.
2. Satellite communication and radar systems requiring low interference and stable connectivity.
3. Industrial test equipment (network analyzers, signal generators) for precise high-frequency measurements.
4. Aerospace and military electronics operating in extreme temperature and high-voltage conditions.
5. Outdoor wireless communication devices (Wi-Fi base stations, IoT gateways) needing durable signal connections.
FAQ
Q: What is the frequency range of the GL-NCJ1.5 connector?
A: It supports a frequency range of up to 10GHz, suitable for high-frequency applications.
Q: What is the VSWR value of this N Type connector?
A: The VSWR is 1.10, ensuring efficient signal transmission with minimal loss.
Q:How many mating cycles can the connector endure?
A: It supports ≥500 mating cycles, providing long-term reliability in repeated connection-disconnection.
Q: What is the recommended coupling torque for installation?
A: The recommended torque is 0.7-1.1Nm (max 1.7Nm) to ensure a secure connection.
Q: Can this connector work in extreme temperature environments?
A: Yes, it operates from -55℃ to +155℃, adapting to harsh industrial, aerospace and outdoor scenarios.
Q: What materials are used for the connector's contacts?
A: Outer contact: Brass with CuSnZn plating; Center contact: Brass with Ag plating for superior conductivity.
