GL400IA-2
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

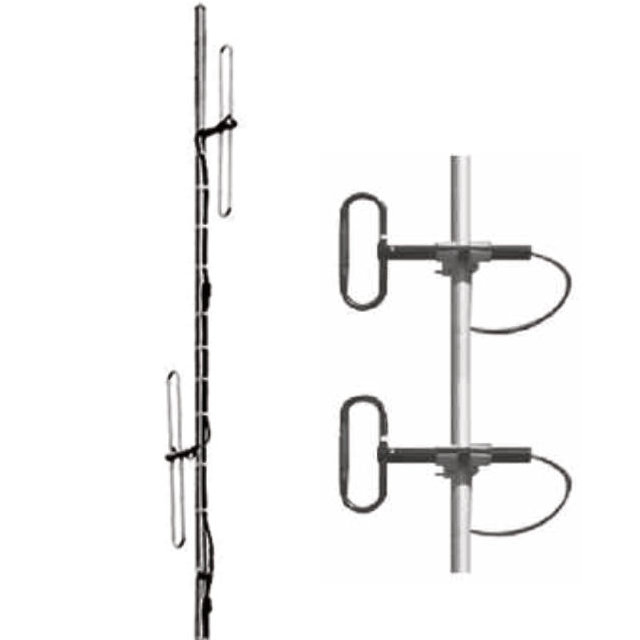

2 Folded Dipole Antenna | |
GL400IA-2 | |
Electrical Index | |
Frequency-MHz | 380-490 |
Bandwidth-MHz | 10 |
Gain-dBi | Omni 5/Directional 7 |
Vertical Beamwidth-º | 35 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 200 |
Dimensions-cm | 150 |
Weight-kg | 1.3 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
2 Folded Dipole Antenna | |
GL400IA-2 | |
Electrical Index | |
Frequency-MHz | 380-490 |
Bandwidth-MHz | 10 |
Gain-dBi | Omni 5/Directional 7 |
Vertical Beamwidth-º | 35 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 200 |
Dimensions-cm | 150 |
Weight-kg | 1.3 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
