GL436-1090
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| System | Parameter | Specification |
|---|---|---|
| Measured Electrical Data | Model | GL436-1090 |
| Product Type | Rubber antenna | |
| Measured Frequency Points | 1089, 1090, 1091 MHz | |
| Peak Measured Gain | 1.96 dBi at 1089 MHz | |
| Measured Gain at 1090 MHz | 1.88 dBi | |
| Measured Efficiency at 1090 MHz | 91.25% | |
| Measured Efficiency Range | 90.77% to 92.65% | |
| Pattern Reference | Beamwidth, phi 0 degree plane | About 91 degrees at 1090 MHz |
Beamwidth, phi 90 degree plane | About 86 degrees at 1090 MHz | |
| Mechanical | Structure | Rubber antenna with hinged base |
| Color | Black |
●1090 MHz Receiving or Monitoring Systems：The available measured data are centered on 1090 MHz, making the antenna suitable for systems that work around this frequency.
●Compact RF Terminals：The hinged base helps when the antenna must be installed on a device with limited clearance.
●Portable Electronics：The rubber body is suited to portable or removable terminal antenna applications.
●Engineering Evaluation：The chamber plots provide a direct reference for gain, efficiency, and beam behavior.

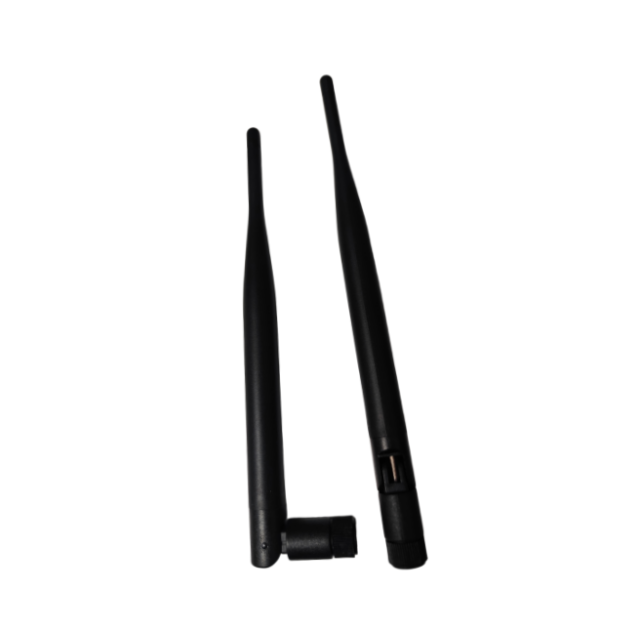

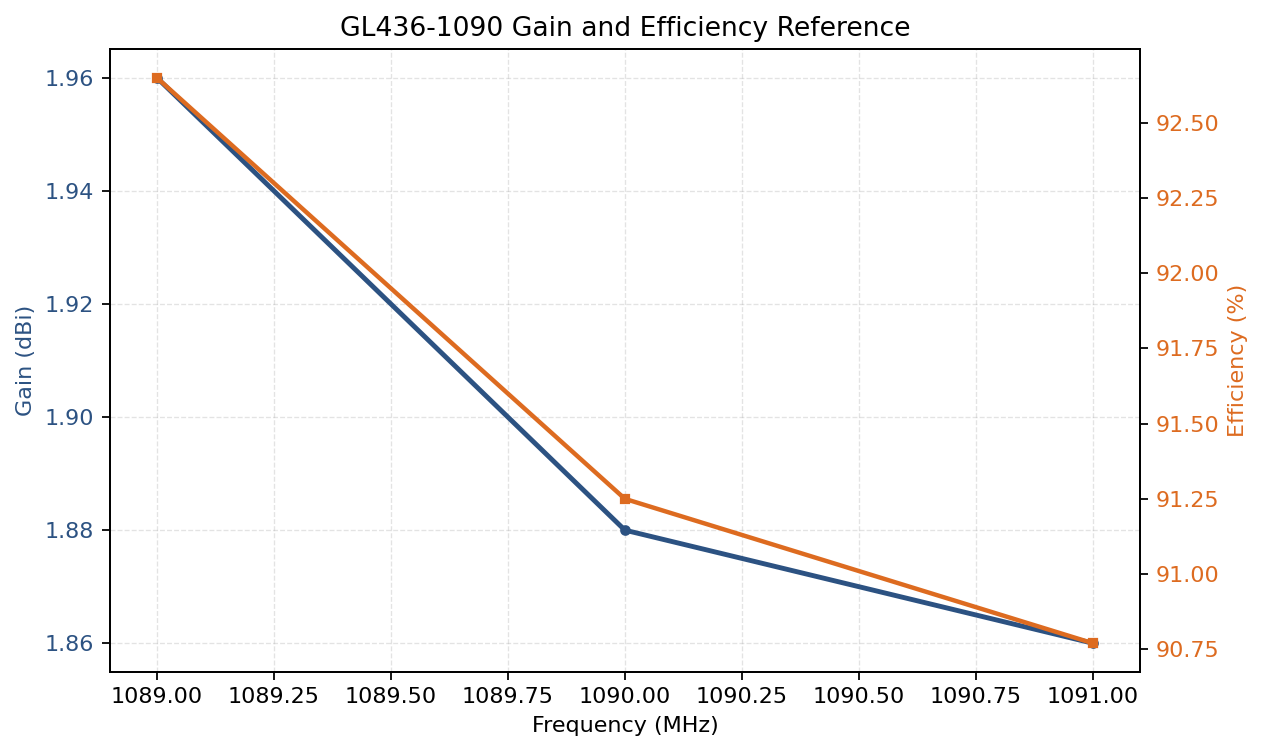

The following images show the product appearance and a chart generated from the available measured data.
Q: What frequency points are available for GL436-1090?
A:The available test reference covers 1089, 1090, and 1091MHz.
Q: What is the peak measured gain?
A:The peak measured gain is 1.96 dBi at 1089 MHz.
Q: Does the antenna use a fixed or articulated base?
A:The product photos show a hinged connector structure.
Q: What is the measured efficiency at 1090 MHz?
A:The measured efficiency at 1090 MHz is 91.25%.
Q: What form factor does this antenna use?
A:It uses a slim black rubber antenna body suited to compact external terminal installation.
