GLR915
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

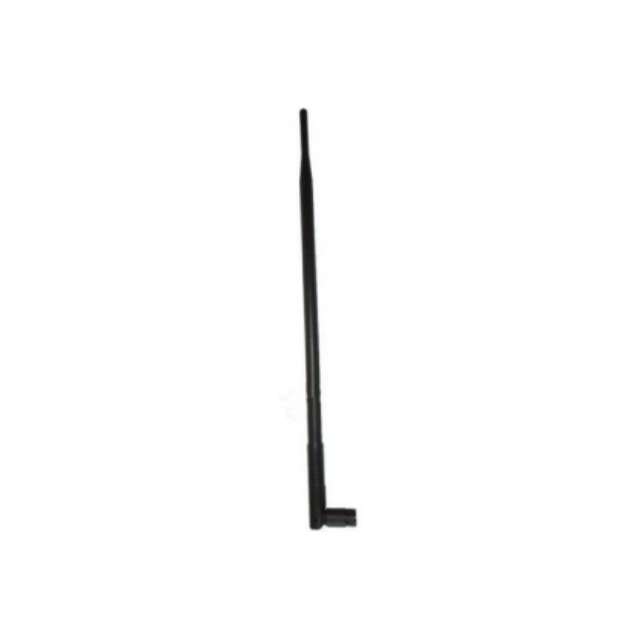

900mhz Rubber Antenna | |
GLR915 | |
Electrical Index | |
Frequency-MHz | 902-928 |
Gain -dBi | 5 |
VSWR | ＜2.0 |
Normal Impedance -Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | RP-TNC Plug (Male) |
Antenna Dimension-mm | Ø14*395 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product introduction
1. Optimized for 902–928MHz ISM Band
Designed specifically for the 902–928MHz frequency range, making it ideal for LoRa, ISM band, and other 900MHz wireless communication systems.
2. High 5dBi Gain for Extended Signal Coverage
With a gain of 5dBi, this antenna significantly improves signal strength and transmission distance compared to standard low-gain antennas.
3. Low VSWR for Stable Performance
VSWR < 2.0 ensures efficient power transmission, reduced signal loss, and reliable connectivity in demanding wireless environments.
4. Durable Rubber Design with Wide Temperature Range
Flexible rubber housing provides mechanical durability and stable performance across extreme temperatures from -40°C to +85°C.
5. Standard RP-TNC Male Connector
Equipped with an RP-TNC male connector for easy compatibility with common wireless modules, routers, and industrial devices.

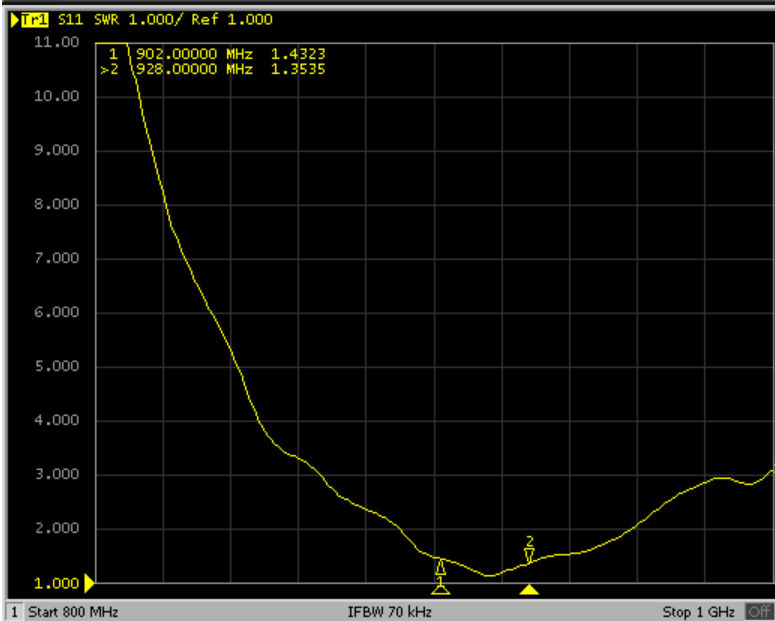

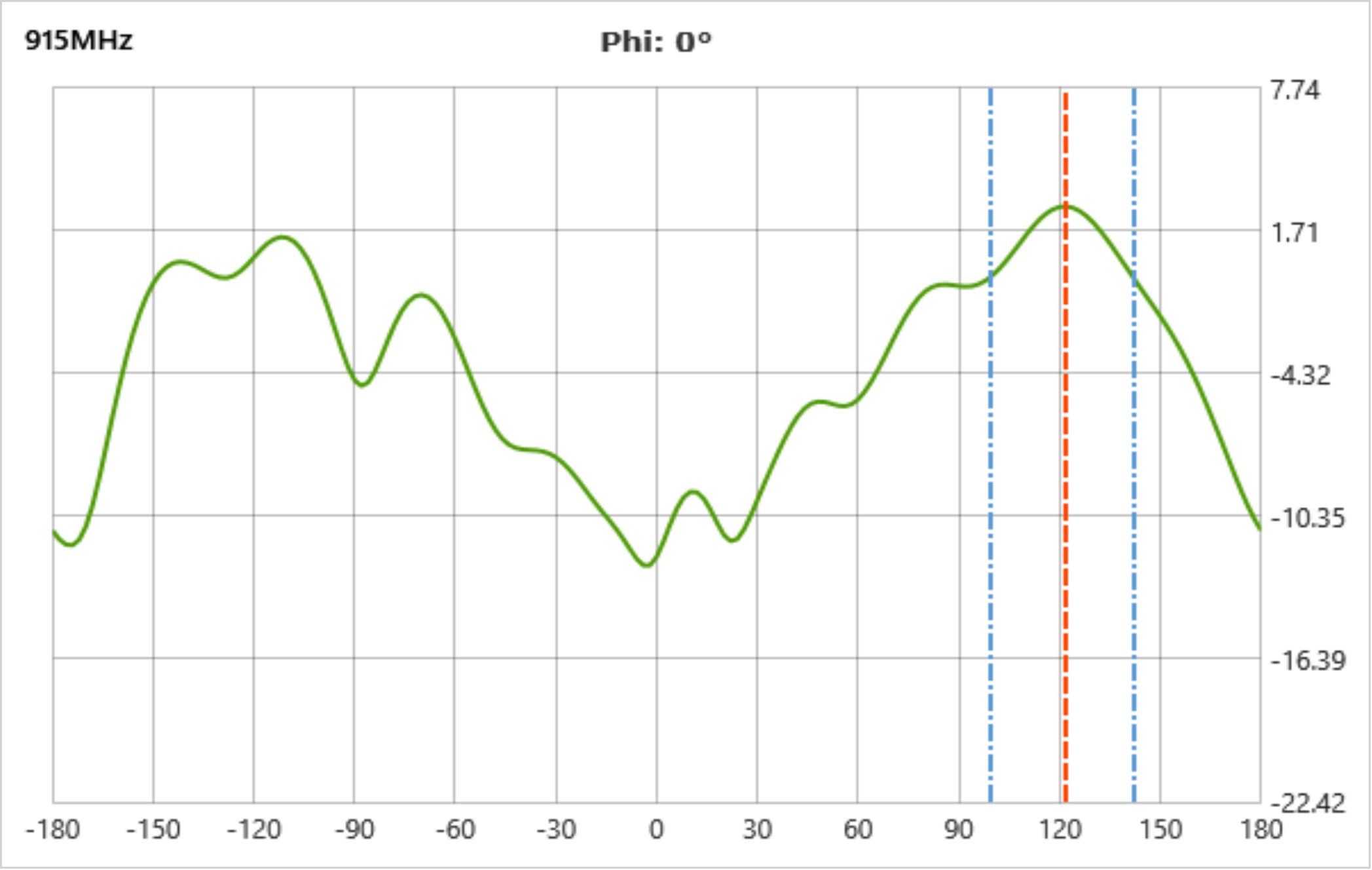

Testing
Application scenarios
LoRa/LoRaWAN wireless systems
IoT devices and gateways
Industrial wireless communication
Smart metering and sensors
900MHz ISM band data transmission
FAQ
Q: What frequency range does this antenna support?
A: It operates within the 902–928MHz ISM band.
Q: Is this antenna suitable for LoRa applications?
A: Yes, it is optimized for 915MHz LoRa and LoRaWAN systems.
Q: What is the antenna gain?
A: The antenna provides a gain of 5dBi.
Q: What connector type does it use?
A: It comes with an RP-TNC male connector.
Q：Is the antenna suitable for outdoor use?
A: It can be used outdoors when properly installed and protected, thanks to its durable rubber design.
Q: What is the operating temperature range?
A: From -40°C to +85°C.
900mhz Rubber Antenna | |
GLR915 | |
Electrical Index | |
Frequency-MHz | 902-928 |
Gain -dBi | 5 |
VSWR | ＜2.0 |
Normal Impedance -Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | RP-TNC Plug (Male) |
Antenna Dimension-mm | Ø14*395 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product introduction
1. Optimized for 902–928MHz ISM Band
Designed specifically for the 902–928MHz frequency range, making it ideal for LoRa, ISM band, and other 900MHz wireless communication systems.
2. High 5dBi Gain for Extended Signal Coverage
With a gain of 5dBi, this antenna significantly improves signal strength and transmission distance compared to standard low-gain antennas.
3. Low VSWR for Stable Performance
VSWR < 2.0 ensures efficient power transmission, reduced signal loss, and reliable connectivity in demanding wireless environments.
4. Durable Rubber Design with Wide Temperature Range
Flexible rubber housing provides mechanical durability and stable performance across extreme temperatures from -40°C to +85°C.
5. Standard RP-TNC Male Connector
Equipped with an RP-TNC male connector for easy compatibility with common wireless modules, routers, and industrial devices.
Testing
Application scenarios
LoRa/LoRaWAN wireless systems
IoT devices and gateways
Industrial wireless communication
Smart metering and sensors
900MHz ISM band data transmission
FAQ
Q: What frequency range does this antenna support?
A: It operates within the 902–928MHz ISM band.
Q: Is this antenna suitable for LoRa applications?
A: Yes, it is optimized for 915MHz LoRa and LoRaWAN systems.
Q: What is the antenna gain?
A: The antenna provides a gain of 5dBi.
Q: What connector type does it use?
A: It comes with an RP-TNC male connector.
Q：Is the antenna suitable for outdoor use?
A: It can be used outdoors when properly installed and protected, thanks to its durable rubber design.
Q: What is the operating temperature range?
A: From -40°C to +85°C.
