GLR915
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

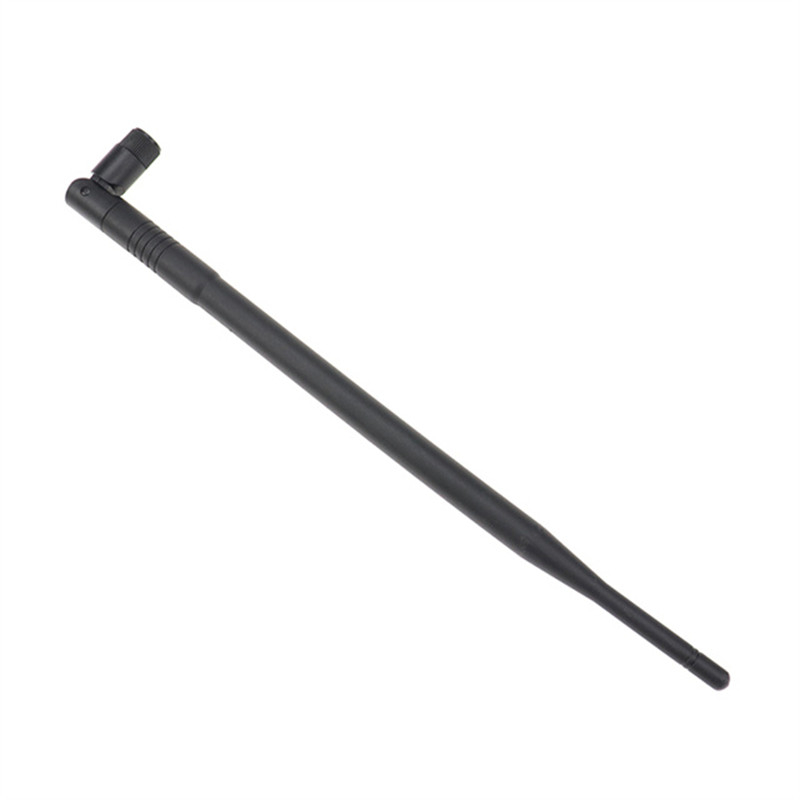

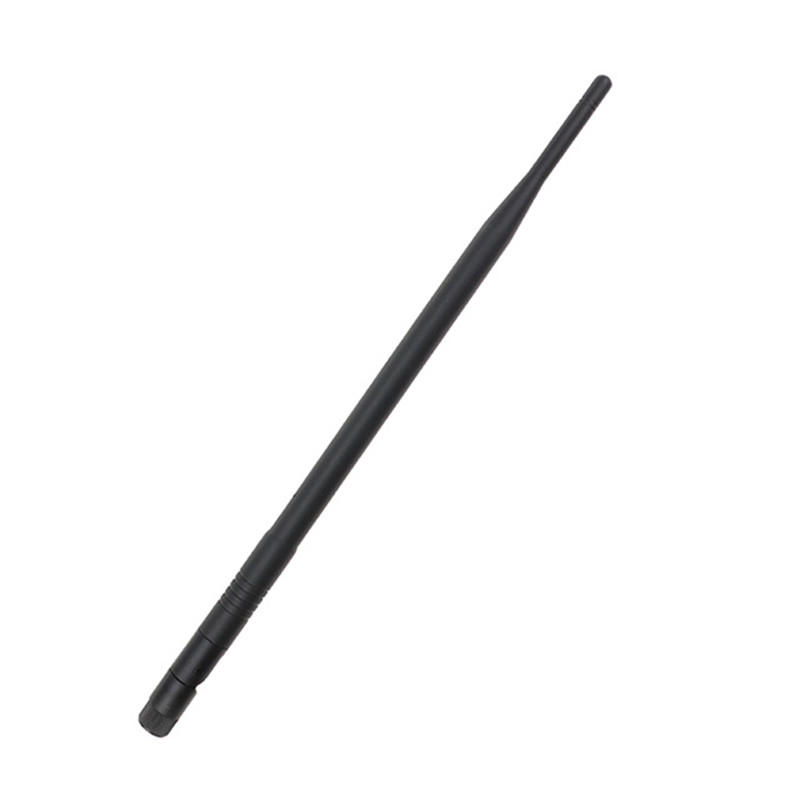

915 Rubber Antenna | |
GLR915-3 | |
Electrical Index | |
Frequency-MHz | 902-928 |
Gain -dBi | 3.2 |
VSWR | ＜2.0 |
Normal Impedance -Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | RP-TNC Plug (Male) |
Antenna Dimension-mm | Ø14*395 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |

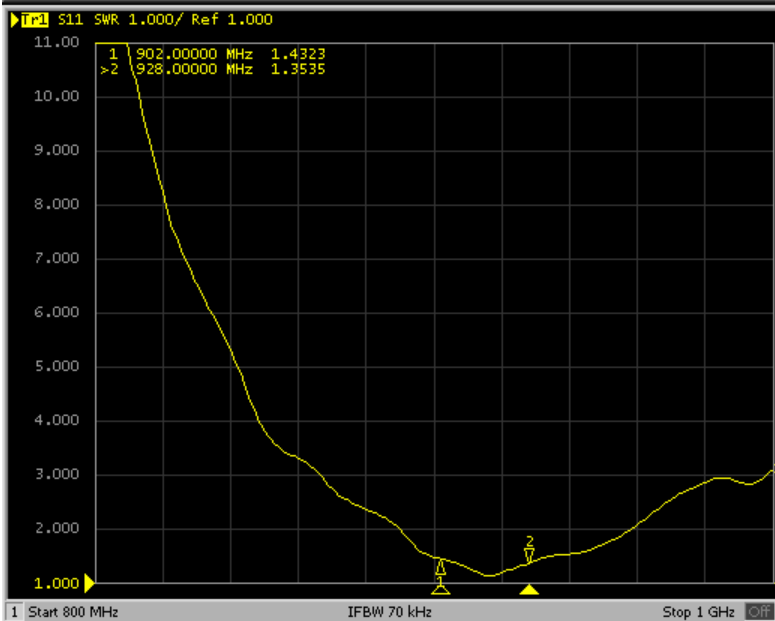

VSWR Testing
Product introduction
1.Wide Frequency Coverage
Supports the full 902–928 MHz ISM band, ensuring compatibility with a broad range of wireless devices and systems.
2.Optimized 5dBi Gain
Provides enhanced signal strength and extended range, making it ideal for both indoor and outdoor applications.
3.RP-TNC Male Connector
Features a reverse polarity TNC plug for secure and easy installation with compatible radios and modules.
4.Durable and Weather-Resistant Design
Built to withstand harsh environments with an operating temperature range of -40°C to +85°C and humidity tolerance of 5%–95%.
5.ROHS Compliant and Eco-Friendly
Manufactured in compliance with ROHS standards, ensuring safe and environmentally responsible materials.
Application Scenarios
●IoT and M2M Communication
Ideal for 900MHz LoRa, Sigfox, and other LPWAN devices in smart cities and industrial IoT.
●Industrial Monitoring and Control
Used in SCADA systems, remote sensors, and telemetry applications requiring reliable data transmission.
●Amateur Radio and Hobbyist Projects
Perfect for 33cm band amateur radio operations and DIY RF projects.
●Wireless Gateways and Access Points
Enhances connectivity for 900MHz gateways in rural or remote area networks.
●Inventory and Asset Tracking
Supports active RFID and real-time location systems (RTLS) in warehouses and logistics.
FAQ
Q:What frequency bands does the GLR915 antenna support?
A:It supports the 902–928 MHz frequency range, commonly used in ISM band applications.
Q:What type of connector does this antenna use?
A:The antenna features an RP-TNC plug (male) connector, suitable for many 900MHz radios and modules.
Q: Is this antenna suitable for outdoor use?
A:Yes, it is designed to withstand temperatures from -40°C to +85°C and humidity levels from 5% to 95%, making it suitable for outdoor deployment.
Q:What is the gain of the GLR915 antenna?
A:The antenna offers 5dBi gain, providing improved signal coverage and strength.
Q:Is the GLR915 antenna ROHS compliant?
A:Yes, it is fully ROHS compliant, ensuring environmentally safe materials and manufacturing.
Q: What is the VSWR of this antenna?
A:The VSWR is less than 2.0, ensuring efficient power transmission and minimal signal reflection.
915 Rubber Antenna | |
GLR915-3 | |
Electrical Index | |
Frequency-MHz | 902-928 |
Gain -dBi | 3.2 |
VSWR | ＜2.0 |
Normal Impedance -Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | RP-TNC Plug (Male) |
Antenna Dimension-mm | Ø14*395 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
VSWR Testing
Product introduction
1.Wide Frequency Coverage
Supports the full 902–928 MHz ISM band, ensuring compatibility with a broad range of wireless devices and systems.
2.Optimized 5dBi Gain
Provides enhanced signal strength and extended range, making it ideal for both indoor and outdoor applications.
3.RP-TNC Male Connector
Features a reverse polarity TNC plug for secure and easy installation with compatible radios and modules.
4.Durable and Weather-Resistant Design
Built to withstand harsh environments with an operating temperature range of -40°C to +85°C and humidity tolerance of 5%–95%.
5.ROHS Compliant and Eco-Friendly
Manufactured in compliance with ROHS standards, ensuring safe and environmentally responsible materials.
Application Scenarios
●IoT and M2M Communication
Ideal for 900MHz LoRa, Sigfox, and other LPWAN devices in smart cities and industrial IoT.
●Industrial Monitoring and Control
Used in SCADA systems, remote sensors, and telemetry applications requiring reliable data transmission.
●Amateur Radio and Hobbyist Projects
Perfect for 33cm band amateur radio operations and DIY RF projects.
●Wireless Gateways and Access Points
Enhances connectivity for 900MHz gateways in rural or remote area networks.
●Inventory and Asset Tracking
Supports active RFID and real-time location systems (RTLS) in warehouses and logistics.
FAQ
Q:What frequency bands does the GLR915 antenna support?
A:It supports the 902–928 MHz frequency range, commonly used in ISM band applications.
Q:What type of connector does this antenna use?
A:The antenna features an RP-TNC plug (male) connector, suitable for many 900MHz radios and modules.
Q: Is this antenna suitable for outdoor use?
A:Yes, it is designed to withstand temperatures from -40°C to +85°C and humidity levels from 5% to 95%, making it suitable for outdoor deployment.
Q:What is the gain of the GLR915 antenna?
A:The antenna offers 5dBi gain, providing improved signal coverage and strength.
Q:Is the GLR915 antenna ROHS compliant?
A:Yes, it is fully ROHS compliant, ensuring environmentally safe materials and manufacturing.
Q: What is the VSWR of this antenna?
A:The VSWR is less than 2.0, ensuring efficient power transmission and minimal signal reflection.
