GL-DYX150A
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

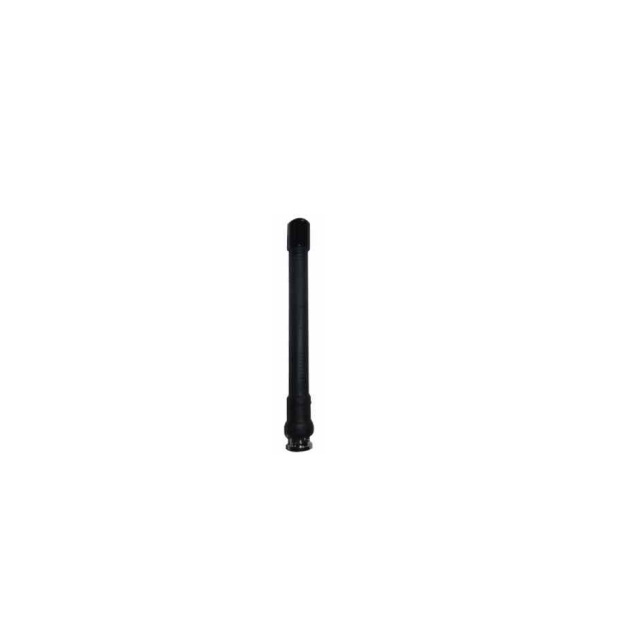

Terminal Antennas | |
GL-DYX150A | |
Electrical Index | |
Frequency-MHz | 134-173 |
Bandwidth-MHz | 6 |
Gain-dBi | 1.8 |
VSWR | ≤2.0 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 30 |
Length-cm | 13 |
Weight-g | 45 |
Connector | BNC or TNC Male |
Terminal Antennas | |
GL-DYX150A | |
Electrical Index | |
Frequency-MHz | 134-173 |
Bandwidth-MHz | 6 |
Gain-dBi | 1.8 |
VSWR | ≤2.0 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 30 |
Length-cm | 13 |
Weight-g | 45 |
Connector | BNC or TNC Male |
