GL400DQ
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

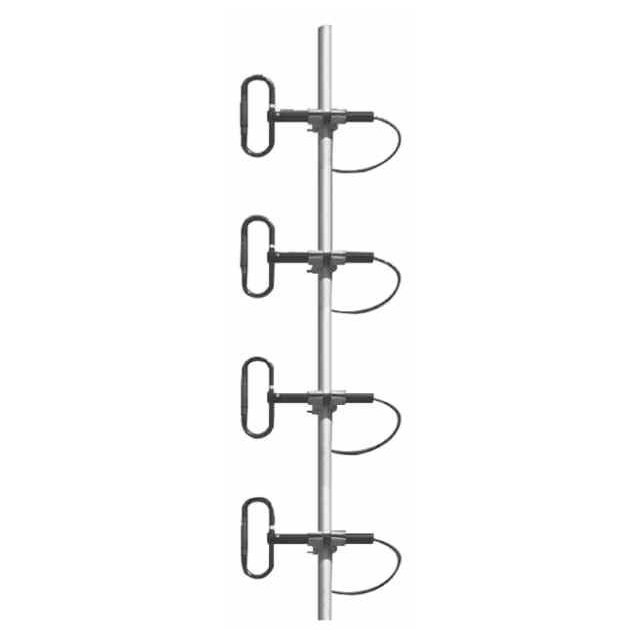

4 Folded Dipole Antenna | |
GL400DQ | |
Electrical Index | |
Frequency-MHz | 380-470 |
Bandwidth-MHz | 90 |
Gain-dBi | 8.15-11.15 |
Vertical Beamwidth-º | 16 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 300 |
Dimensions-cm | 273 |
Weight-kg | 11.5 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or 7/16DIN |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
4 Folded Dipole Antenna | |
GL400DQ | |
Electrical Index | |
Frequency-MHz | 380-470 |
Bandwidth-MHz | 90 |
Gain-dBi | 8.15-11.15 |
Vertical Beamwidth-º | 16 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 300 |
Dimensions-cm | 273 |
Weight-kg | 11.5 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or 7/16DIN |
Remarks | Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer |
