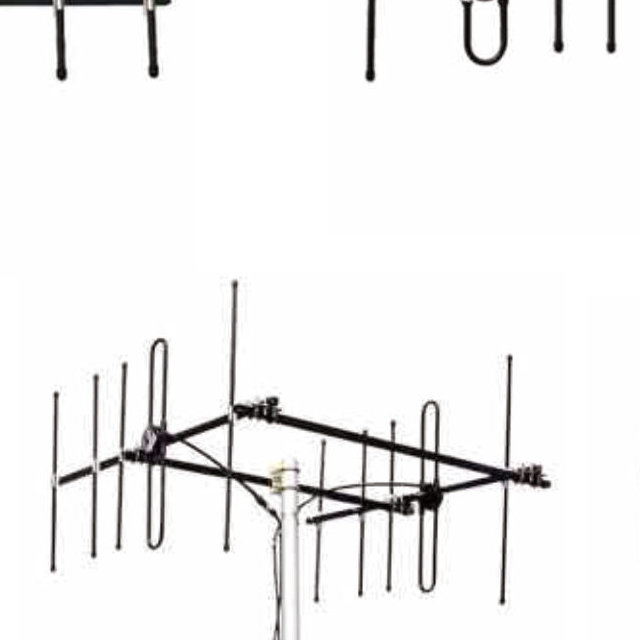

400-490MHZ 13.8dBi Gain Yagi antenna

Designed with 1.2m optimized length and 2.5kg robust build, balancing performance and structural stability for outdoor deployment. Withstands 60m/s wind velocity, rugged construction maintains consistent operation in harsh outdoor directional communication setups.

  • GL401D

  • GLOBAL

  • 8517710000

  • 1000PC/Day

  • 10pc

  • Accepted

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Frequency-MHz 400-490 Bandwidth-MHz 16 Gain-dBi 13.8 Vertical Beamwidth-o 40 Horizontal Beamwidth-o 26 F/B Ratio-dB ≥18 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 100 Length-m 1.2 Weight-kg 2.5 Rated Wind Velocity-m/s 60 Connector N Female or Customization
400-490MHZ Yagi antenna 13.8dBi Gain Yagi antenna
