GL350WDBFA
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

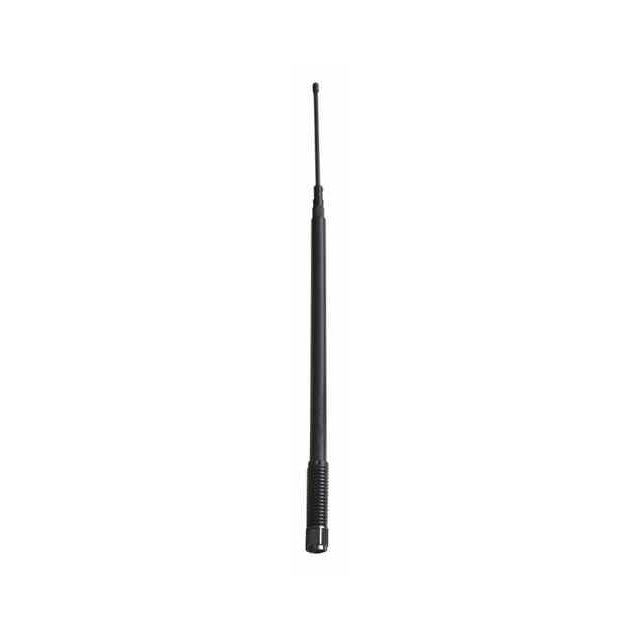

Mobile Antenna | |
GL350WDBFA | |
Electrical Index | |
Frequency-MHz | 358-361 |
Bandwidth-MHz | 3 |
Gain-dBi | 2.15 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 50 |
Dimensions-mm | 56 |
Weight-g | 280 |
Connector | N Male |
Remarks | The antenna is only applicable to the equipment of the back-up machine,and the middle part of the antenna is detachable. |
Mobile Antenna | |
GL350WDBFA | |
Electrical Index | |
Frequency-MHz | 358-361 |
Bandwidth-MHz | 3 |
Gain-dBi | 2.15 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 50 |
Dimensions-mm | 56 |
Weight-g | 280 |
Connector | N Male |
Remarks | The antenna is only applicable to the equipment of the back-up machine,and the middle part of the antenna is detachable. |
