GL- SP001
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Model No. | GL- SP00 1 |
Freq(MHz) | 136-174 |
Input Port Number | 1 |
Output Port Number | 2 |
Split Loss(dB) | 3.0 |
IL(dB) | ≤0.4 |
Isolation(dB) | ≥20 |
VSWR | ≤1.25 |
Total Input Power(W) | 50 |
Impedance | 50 ohm |
Connector | N-female |
Color | Black-plated |
Temp(deg) | -35~+75 |
Application | Indoor |
Wide Frequency Band: Covers a wide frequency range of 136-174MHz for versatile applications.
Low VSWR: Ensures efficient signal transmission with a VSWR of ≤1.25.
Minimal Insertion Loss: Delivers excellent performance with an insertion loss of ≤0.4dB.
High Isolation: Offers superior isolation (≥20dB) to prevent signal interference.
Durable and Compact Design: Black-plated connector and robust construction for lasting indoor use in diverse environments.
Indoor Communication Systems: Perfect for use in office buildings, malls, and other in-building networks.
Emergency Communication Networks: Essential for ensuring reliable signal distribution in critical environments.
Private LTE Networks: Ideal for indoor antenna systems that require low loss and high power handling.
Wireless Communication Infrastructure: Useful in enhancing the signal distribution for wireless systems.
Antenna Setup for Remote Areas: Helps in splitting power effectively in areas where signal strength needs optimization.
Product Installation Instructions

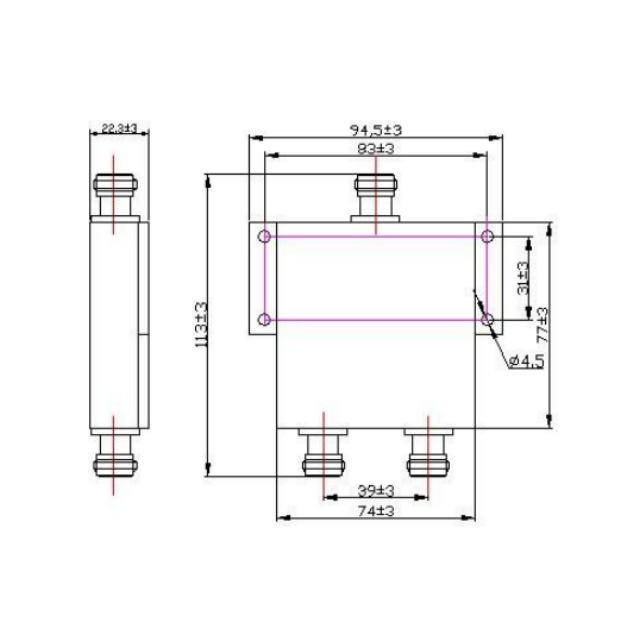

Determine the mounting position on the installation bracket according to the hole locations on the cavity power splitter mounting bracket.
Drill holes at the designated mounting position on the installation bracket and secure expansion anchor sleeves. Insert screws through the through-holes of the cavity power splitter, fix them into the expansion anchor sleeves, and tighten securely using a Phillips screwdriver.
As illustrated below (four-way power splitter): Connect the signal from the source port to the input port; output ports 1 and 2 are connected to the antenna feeders.
Q:What is the frequency range of the GL-SP001?
A:It operates within the 136-174MHz frequency range.
Q:What is the total input power capacity?
A:The maximum input power is 50W.
Q:Is the GL-SP001 suitable for outdoor use?
A:No, this model is designed for indoor applications.
Q:What is the VSWR value of the splitter?
A:The VSWR is ≤1.25, ensuring efficient signal transmission.
Q:What type of connector does the GL-SP001 use?
A:It features an N-female connector for easy connection.
Q:What is the temperature range for this splitter?
A:It operates between -35°C and +75°C.
Model No. | GL- SP00 1 |
Freq(MHz) | 136-174 |
Input Port Number | 1 |
Output Port Number | 2 |
Split Loss(dB) | 3.0 |
IL(dB) | ≤0.4 |
Isolation(dB) | ≥20 |
VSWR | ≤1.25 |
Total Input Power(W) | 50 |
Impedance | 50 ohm |
Connector | N-female |
Color | Black-plated |
Temp(deg) | -35~+75 |
Application | Indoor |
Wide Frequency Band: Covers a wide frequency range of 136-174MHz for versatile applications.
Low VSWR: Ensures efficient signal transmission with a VSWR of ≤1.25.
Minimal Insertion Loss: Delivers excellent performance with an insertion loss of ≤0.4dB.
High Isolation: Offers superior isolation (≥20dB) to prevent signal interference.
Durable and Compact Design: Black-plated connector and robust construction for lasting indoor use in diverse environments.
Indoor Communication Systems: Perfect for use in office buildings, malls, and other in-building networks.
Emergency Communication Networks: Essential for ensuring reliable signal distribution in critical environments.
Private LTE Networks: Ideal for indoor antenna systems that require low loss and high power handling.
Wireless Communication Infrastructure: Useful in enhancing the signal distribution for wireless systems.
Antenna Setup for Remote Areas: Helps in splitting power effectively in areas where signal strength needs optimization.
Product Installation Instructions
Determine the mounting position on the installation bracket according to the hole locations on the cavity power splitter mounting bracket.
Drill holes at the designated mounting position on the installation bracket and secure expansion anchor sleeves. Insert screws through the through-holes of the cavity power splitter, fix them into the expansion anchor sleeves, and tighten securely using a Phillips screwdriver.
As illustrated below (four-way power splitter): Connect the signal from the source port to the input port; output ports 1 and 2 are connected to the antenna feeders.
Q:What is the frequency range of the GL-SP001?
A:It operates within the 136-174MHz frequency range.
Q:What is the total input power capacity?
A:The maximum input power is 50W.
Q:Is the GL-SP001 suitable for outdoor use?
A:No, this model is designed for indoor applications.
Q:What is the VSWR value of the splitter?
A:The VSWR is ≤1.25, ensuring efficient signal transmission.
Q:What type of connector does the GL-SP001 use?
A:It features an N-female connector for easy connection.
Q:What is the temperature range for this splitter?
A:It operates between -35°C and +75°C.
