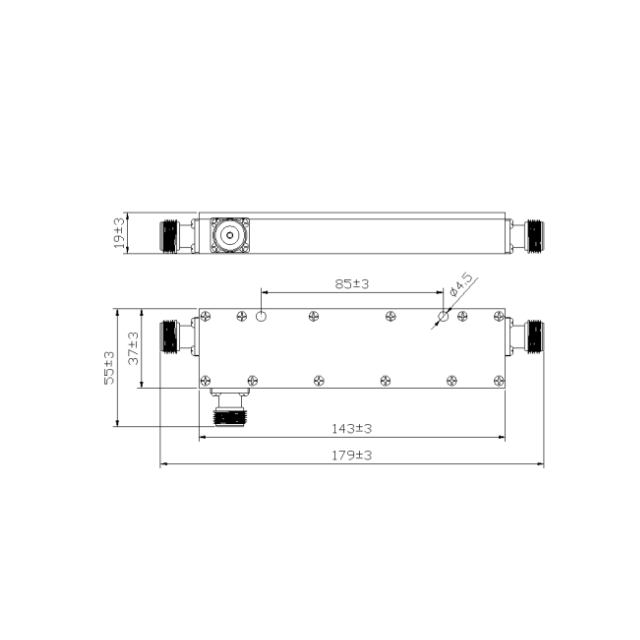

Model No. | GL-130-05-NF | GL-130-06-NF | GL-130-07-NF | GL-130-10-NF | GL-130-15-NF | GL-130-20-NF |
Freq(MHz) | 136-174 | |||||
Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 |
IL(dB) | ≤2.2 | ≤1.9 | ≤1.40 | ≤1.0 | ≤0.4 | ≤0.3 |
Accuracy(dB) | ±1.2 | ±1.2 | ±1.2 | ±1.2 | ±1.3 | ±1.4 |
Isolation(dB) | ≥24 | ≥25 | ≥26 | ≥28 | ≥34 | ≥38 |
VSWR | ≤1.25 | |||||
Power(W) | 200 (average) | |||||
Impedance | 50 ohm | |||||
Connector | N-female | |||||
Color | Black | |||||
Temp(deg) | -30~+65 | |||||
Application | IP60 | |||||
Humidity | 5%-95% | |||||
Dimension | 179*55*19mm | |||||
Net Weight | 0.28kg | |||||

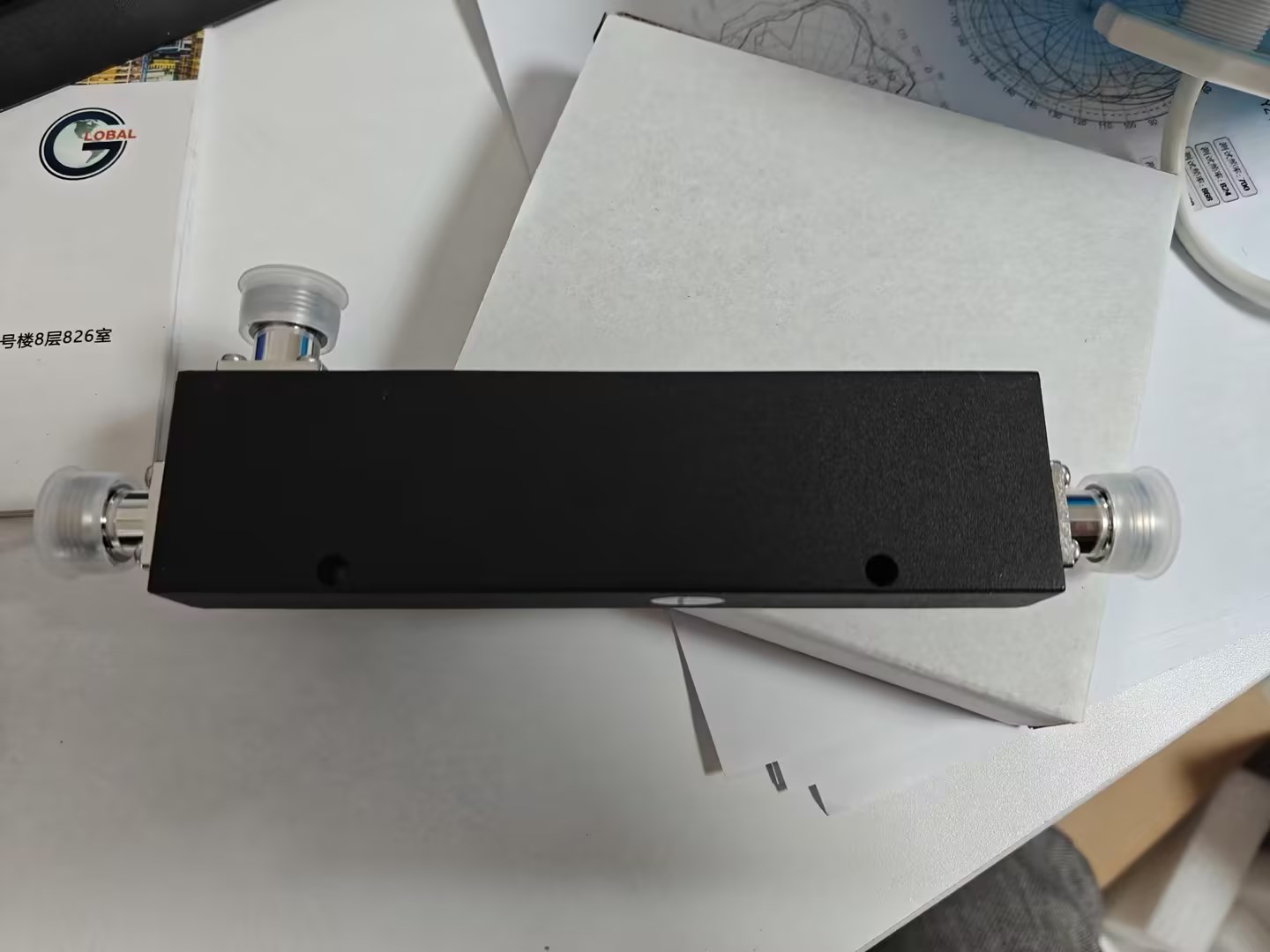

Product Introduction
1. Wideband Coverage, Optimized for VHF Communication
Covering the entire VHF band from 136-174MHz, suitable for signal coupling and monitoring in professional walkie-talkies, dispatch systems, and other narrowband communication equipment.
2. Multiple Coupling Values Available, Flexible Adaptation to System Needs
Offering multiple coupling value models including 5dB, 6dB, 7dB, 10dB, 15dB, and 20dB, allowing flexible selection based on signal distribution requirements, supporting precise signal sampling and monitoring.
3. Low Insertion Loss and High Isolation, Ensuring Signal Quality
Insertion loss as low as ≤0.3dB (20dB coupling model), and isolation up to ≥38dB, effectively reducing signal attenuation and suppressing interference, ensuring stable system operation.
4. High Power Handling Capability, Rugged and Durable
Supports an average power of 200W, VSWR≤1.25, impedance 50Ω, adopts an N-Female interface, and features a black metal casing, suitable for long-term high-load operating environments.
5. Indoor protective design with strong environmental adaptability. IP60 protection rating, dustproof and splashproof, operating temperature -30℃~+65℃, humidity 5%-95%, suitable for various indoor communication equipment rooms and equipment rooms.
Application Scenarios
Building Indoor VHF Walkie-Talkie Signal Distribution and Coverage System
Indoor Communication Base Station Signal Monitoring and Coupling Sampling
Emergency Communication Vehicle Indoor Signal Routing and Monitoring
Signal Extension for Factory and Warehouse Wireless Dispatch Systems
Broadcast Television Indoor Signal Relay and Distribution System
Product Installation Instructions

Installation Instructions
A. Use the installation hole located on the cavity coupler body;
B. Determine the installation position on the mounting bracket, drill holes at the specified location, and secure the expansion bolt sleeves;

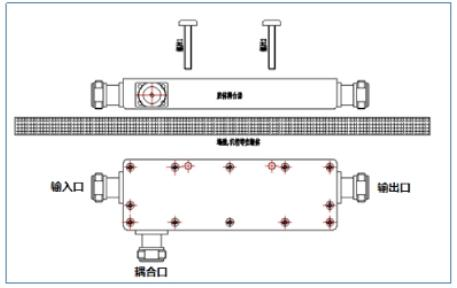

C. Pass the screw through the cavity coupler (through installation holes), fix it onto the expansion bolt sleeve, and tighten firmly using a Phillips screwdriver. As shown in the figure below:
D. Connect the signal from the source port to the Input Port; connect the coupling port and Output Port to the feeder.
FAQ
Q: What frequency range does the GLF130 support?
A: It supports 136-174MHz VHF band, commonly used in two-way radio and professional communication systems.
Q: What coupling values are available?
A: Available coupling values include 5dB, 6dB, 7dB, 10dB, 15dB, and 20dB to suit different signal distribution needs.
Q: What is the insertion loss?
A: Insertion loss varies by model, ranging from ≤2.2dB (5dB coupling) to ≤0.3dB (20dB coupling).
Q: What connectors are used?
A: Standard connectors are N-Female. Other connector types can... be customized upon request.
Q:Is it suitable for outdoor use?
A:This coupler is rated IP60 for indoor use. Outdoor installation requires additional environmental protection.
Q:What is the maximum power handling?
A:It supports up to 200W average power, making it suitable for high-power communication systems.
