GL350C10P300
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

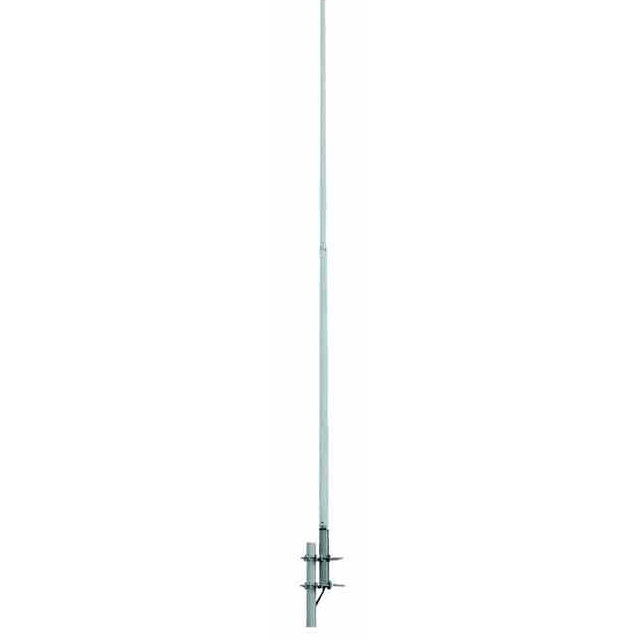

Omni Antenna | |
GL350C10P300 | |
Electrical Index | |
Frequency-MHz | 351-368 |
Bandwidth-MHz | 17 |
Gain-dBi | 10.2 |
Vertical Beamwidth-º | 10 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 300 |
Length-m | 5.2 |
Weight-kg | 4.9 |
Rated Wind Velocity-m/s | 60 |
Connector | 7/16DIN Female |
Remarks | Fiberglass High Power |
Omni Antenna | |
GL350C10P300 | |
Electrical Index | |
Frequency-MHz | 351-368 |
Bandwidth-MHz | 17 |
Gain-dBi | 10.2 |
Vertical Beamwidth-º | 10 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 300 |
Length-m | 5.2 |
Weight-kg | 4.9 |
Rated Wind Velocity-m/s | 60 |
Connector | 7/16DIN Female |
Remarks | Fiberglass High Power |
