GLFPC044
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

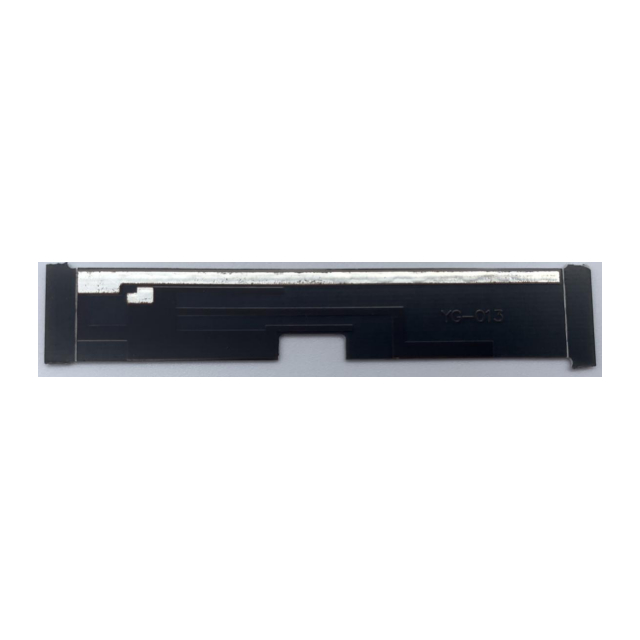

Item | FPC |
PN | GLFPC044 |
Frequency Range (MHz) | 700-2700 |
Gain (dBi) | 3 |
V.S.W.R | ≤1.5 |
Max power input（W） | 20 |
Connector | IPEX or welding |
Dimension | 15*70mm |
Product introduction
1. Wideband 700–2700MHz Coverage
Supports multiple frequency bands including GSM, 3G, and 4G LTE, enabling versatile use across global networks.
2. Stable 3dBi Signal Gain
Provides reliable signal enhancement for improved connectivity and transmission stability.
3. Low VSWR ≤1.5
Excellent impedance matching minimizes signal loss and maximizes radiation efficiency.
4. Compact & Flexible Design (15×70mm)
Slim FPC structure allows easy installation inside space-limited devices.
5. Flexible Connection Options
Available with IPEX connector or direct welding to meet different manufacturing and integration requirements.
Application Scenarios
4G LTE routers and terminals
IoT wireless modules
Smart POS devices
Vehicle tracking systems
Industrial communication equipment
FAQ
Q:What frequency range does this antenna support?
A:It operates from 700MHz to 2700MHz, covering GSM, 3G, and 4G LTE bands.
Q: What is the gain of this antenna?
A:The antenna provides 3dBi gain.
Q: What is the VSWR value?
A:VSWR is ≤1.5, ensuring efficient signal transmission.
Q:What connector types are available?
A:It supports IPEX connector or direct welding (soldering).
Q:What is the maximum input power?
A:The maximum input power is 20W.
Q:What are the dimensions of the antenna?
A:The size is 15×70mm.
Item | FPC |
PN | GLFPC044 |
Frequency Range (MHz) | 700-2700 |
Gain (dBi) | 3 |
V.S.W.R | ≤1.5 |
Max power input（W） | 20 |
Connector | IPEX or welding |
Dimension | 15*70mm |
Product introduction
1. Wideband 700–2700MHz Coverage
Supports multiple frequency bands including GSM, 3G, and 4G LTE, enabling versatile use across global networks.
2. Stable 3dBi Signal Gain
Provides reliable signal enhancement for improved connectivity and transmission stability.
3. Low VSWR ≤1.5
Excellent impedance matching minimizes signal loss and maximizes radiation efficiency.
4. Compact & Flexible Design (15×70mm)
Slim FPC structure allows easy installation inside space-limited devices.
5. Flexible Connection Options
Available with IPEX connector or direct welding to meet different manufacturing and integration requirements.
Application Scenarios
4G LTE routers and terminals
IoT wireless modules
Smart POS devices
Vehicle tracking systems
Industrial communication equipment
FAQ
Q:What frequency range does this antenna support?
A:It operates from 700MHz to 2700MHz, covering GSM, 3G, and 4G LTE bands.
Q: What is the gain of this antenna?
A:The antenna provides 3dBi gain.
Q: What is the VSWR value?
A:VSWR is ≤1.5, ensuring efficient signal transmission.
Q:What connector types are available?
A:It supports IPEX connector or direct welding (soldering).
Q:What is the maximum input power?
A:The maximum input power is 20W.
Q:What are the dimensions of the antenna?
A:The size is 15×70mm.
