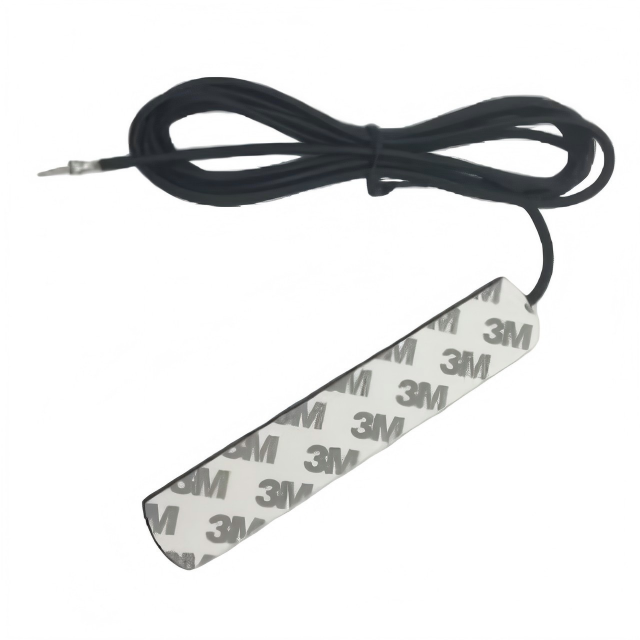

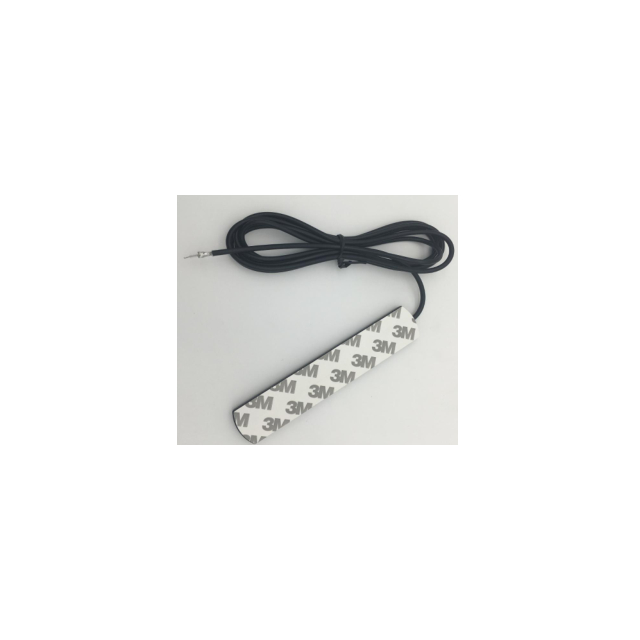

GL-D006
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Index |
PN | GL-D006 |
Frequency Range (MHz) | 433/868/2400-2500/890-960/1710-2170/1710-2700 |
Max power input（W） | 50 |
V.S.W.R | ≤1.5 |
Gain (dBi) | 5 |
connector | SMA |
Dimension(mm) | 115*22*4 |
Product Introduction
Wide Frequency Coverage – Supports 433/868/890–960/1710–2170/1710–2700/2400–2500 MHz, compatible with multiple communication bands including GSM, 4G, WiFi, and ISM applications.
High Gain & Efficiency – With 5dBi gain, the antenna enhances signal strength and coverage, improving transmission and reception performance.
Low VSWR ≤1.5 – Ensures minimal signal loss and optimized impedance matching, providing stable and reliable operation.
50W Power Handling – Capable of handling up to 50 watts of input power, suitable for medium-power RF systems and devices.
Compact & Durable Design – Slim profile (115×22×4mm) with SMA connector, easy to integrate into space-constrained indoor or outdoor installations.
Application Scenarios
Wireless Routers & Access Points – Boosts WiFi and 4G signal strength for better coverage in homes and offices.
IoT Gateways – Suitable for 433MHz and 868MHz ISM band devices like smart home hubs and industrial sensors.
RFID Systems – Enhances communication range in UHF RFID readers and inventory tracking systems.
Vehicle Tracking Devices – Compatible with GSM/4G frequencies for reliable GPS and fleet management connectivity.
Amateur Radio & Hobby Projects – Ideal for hobbyists working with multi-band RF transceivers and experimental setups.
FAQ
Q:What frequency bands does the GL-D006 antenna support?
A:It supports 433MHz, 868MHz, 890–960MHz, 1710–2170MHz, 1710–2700MHz, and 2400–2500MHz, covering GSM, 4G, WiFi, and ISM bands.
Q: What type of connector does this antenna use?
A:It uses an SMA connector, which is common for RF modules, routers, and IoT devices.
Q: Can this antenna be used outdoors?
A:Yes, it has a durable build and compact design suitable for both indoor and outdoor use, though additional weatherproofing is recommended for harsh environments.
Q:What is the maximum power input for this antenna?
A:The antenna can handle up to 50 watts of input power, making it ideal for medium-power RF systems.
Q: Is the antenna compatible with 5G devices?
A:It covers frequencies up to 2700MHz, which includes some 5G bands, but full 5G compatibility depends on your specific frequency requirements.
Q: What is the VSWR of this antenna?
A:The VSWR is ≤1.5, indicating excellent impedance matching and low signal reflection.
