GLFPC02
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 698-960/1710-2700 |
Gain（dBi） | 2.15 |
Polarization | Vertical |
Impedance ( Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | UFL |
Dimensions(mm) | 68x68x0.2 |
Cable | RG1.13/RG1.37 120mm |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |

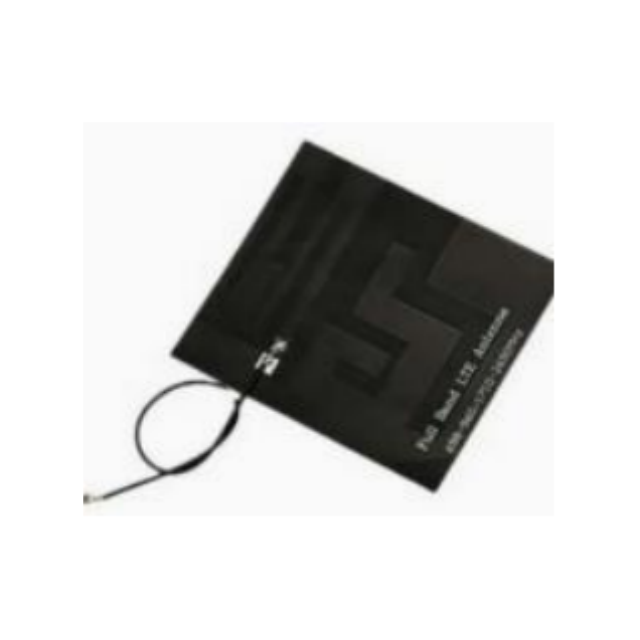

Product Introduction
1. Ultra-thin Flexible Design, Easy Integration
Utilizing flexible printed circuit board (FPC) material, with a thickness of only 0.2mm, it can be bent to fit the internal structure of equipment, suitable for compact devices with limited space.
2. Wide Band Coverage, Supports All 4G Frequency Bands
Covering 698-960MHz and 1710-2700MHz, fully compatible with 4G LTE networks, suitable for most global operator frequency bands.
3. Plug and Play, Easy Installation
Standard UFL connector and 120mm RG1.13/1.37 cable are included for direct connection of the communication module, eliminating the need for soldering and simplifying the assembly process.
4. Stable Performance, Strong Environmental Adaptability
Operating temperature -30℃~+60℃, humidity 5%~95%, suitable for various indoor and mild industrial environments.
5. High Power Handling Capacity, Reliable Signal Transmission
Supports a maximum power of 50W, VSWR≤2.0, impedance 50Ω, ensuring stable signal transmission even under continuous high load.
Application Scenarios
4G LTE IoT terminals (e.g., smart meters, asset trackers)
Portable communication devices (mobile routers, portable WiFi)
Industrial data acquisition and remote monitoring modules
Vehicle-mounted 4G communication and navigation equipment
Smart home wireless gateways and security equipment
FAQ
Q: What networks does this antenna support?
A: Supports 4G LTE networks in the 698-960MHz and 1710-2700MHz frequency bands.
Q: Is it compatible with 5G?
A: No, this antenna is designed for 4G LTE networks and does not support 5G frequencies.
Q: What type of connector does it use?
A: It uses a UFL (IPEX) connector with a 120mm RG1.13/1.37 cable.
Q: Can it be used outdoors?
A: It is primarily designed for indoor or embedded use. For outdoor applications, additional environmental protection is recommended.
Q: Is the antenna waterproof?
A: The FPC material itself is not waterproof. waterproof. It should be used inside a sealed enclosure in humid or outdoor environments.
Q:What is the gain of this antenna?
A:The gain is 2.15dBi, suitable for short to medium-range 4G communication.
Frequency range（MHz） | 698-960/1710-2700 |
Gain（dBi） | 2.15 |
Polarization | Vertical |
Impedance ( Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | UFL |
Dimensions(mm) | 68x68x0.2 |
Cable | RG1.13/RG1.37 120mm |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
Product Introduction
1. Ultra-thin Flexible Design, Easy Integration
Utilizing flexible printed circuit board (FPC) material, with a thickness of only 0.2mm, it can be bent to fit the internal structure of equipment, suitable for compact devices with limited space.
2. Wide Band Coverage, Supports All 4G Frequency Bands
Covering 698-960MHz and 1710-2700MHz, fully compatible with 4G LTE networks, suitable for most global operator frequency bands.
3. Plug and Play, Easy Installation
Standard UFL connector and 120mm RG1.13/1.37 cable are included for direct connection of the communication module, eliminating the need for soldering and simplifying the assembly process.
4. Stable Performance, Strong Environmental Adaptability
Operating temperature -30℃~+60℃, humidity 5%~95%, suitable for various indoor and mild industrial environments.
5. High Power Handling Capacity, Reliable Signal Transmission
Supports a maximum power of 50W, VSWR≤2.0, impedance 50Ω, ensuring stable signal transmission even under continuous high load.
Application Scenarios
4G LTE IoT terminals (e.g., smart meters, asset trackers)
Portable communication devices (mobile routers, portable WiFi)
Industrial data acquisition and remote monitoring modules
Vehicle-mounted 4G communication and navigation equipment
Smart home wireless gateways and security equipment
FAQ
Q: What networks does this antenna support?
A: Supports 4G LTE networks in the 698-960MHz and 1710-2700MHz frequency bands.
Q: Is it compatible with 5G?
A: No, this antenna is designed for 4G LTE networks and does not support 5G frequencies.
Q: What type of connector does it use?
A: It uses a UFL (IPEX) connector with a 120mm RG1.13/1.37 cable.
Q: Can it be used outdoors?
A: It is primarily designed for indoor or embedded use. For outdoor applications, additional environmental protection is recommended.
Q: Is the antenna waterproof?
A: The FPC material itself is not waterproof. waterproof. It should be used inside a sealed enclosure in humid or outdoor environments.
Q:What is the gain of this antenna?
A:The gain is 2.15dBi, suitable for short to medium-range 4G communication.
