GL149
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
1.Electrical specifications
Frequency range（MHz） | 700-2700 |
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
2.Mechanical specifications
Connector | IPEX |
Dimensions(mm) | 50x25x0.1 |
Cable | RG1.13-100mm |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
Product Introduction

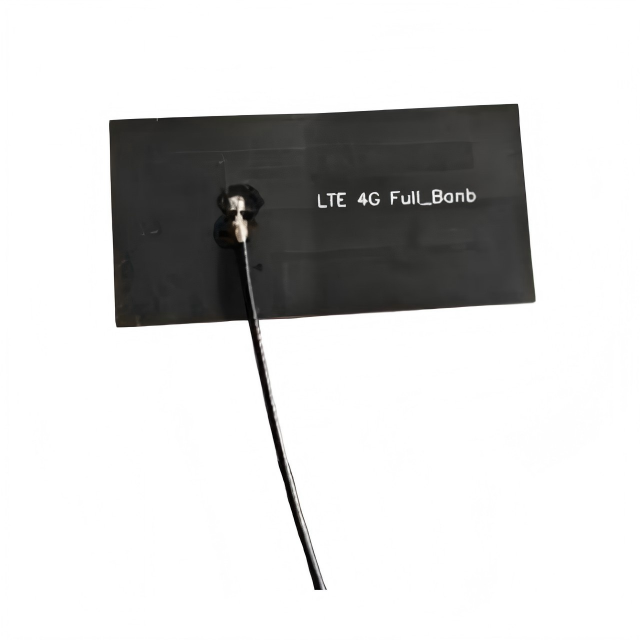

Small Size Design, Space Saving:The antenna measures only 50×25×0.1mm, making it suitable for integration into highly compact electronic devices without taking up extra space.
Wide Band Coverage, Multi-System Compatibility:
Supports the 700-2700MHz frequency band, covering 4G, Wi-Fi, and some 5G Sub-6GHz bands, compatible with various wireless communication protocols.
Plug and Play, Easy Installation:
Equipped with an IPEX connector and a 100mm RG1.13 cable, it can be directly connected to the motherboard or module without complex soldering, reducing assembly difficulty.
Stable Performance, Strong Environmental Adaptability:
Operating temperature range -30℃ to +60℃, humidity 5% to 95%, suitable for various indoor and mild outdoor embedded environments.
Industry Standard Compliance, Reliable and Durable:
Impedance 50Ω, VSWR≤2.0, maximum power 50W, suitable for long-term stable operation of IoT and communication devices.
Application Scenarios
4G/LTE IoT Communication Module
Portable Smart Terminals (Handheld Devices, POS Machines)
Smart Home Wireless Devices (Routers, Surveillance Cameras)
Industrial Sensors and Data Acquisition Terminals
Vehicle Navigation and Vehicle-to-Everything (V2X) Communication Equipment
FAQ
Q: What frequency bands does the GL149 support?
A: It supports 700-2700MHz, covering common 4G, LTE, and Wi-Fi bands.
Q: Is this antenna suitable for 5G applications?
A: It can support some Sub-6GHz 5G bands within 700-2700MHz, but not mmWave.
Q: What connector type does it use?
A: It uses an IPEX connector with a 100mm RG1.13 cable attached.
Q: Can it be used outdoors?
A: It is designed for indoor or embedded use. For outdoor applications, additional environmental protection is recommended.
Q: What is the gain of this antenna?
A: The gain is 3dBi, suitable for short to medium-range wireless communication.
Q:Is the cable length customizable?
A:Yes, cable length and connector type can be customized based on project requirements.
