GL2425-2
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 2400-2500MHz |
VSWR | ≤2.5 |
Gain- dBi | 3 |
Horizontal beam width | 360° |
Polarization | RHCP |
Input Impedance-Ω | 50 |
Maximum input power- W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N male |
Connector place | Bottom |

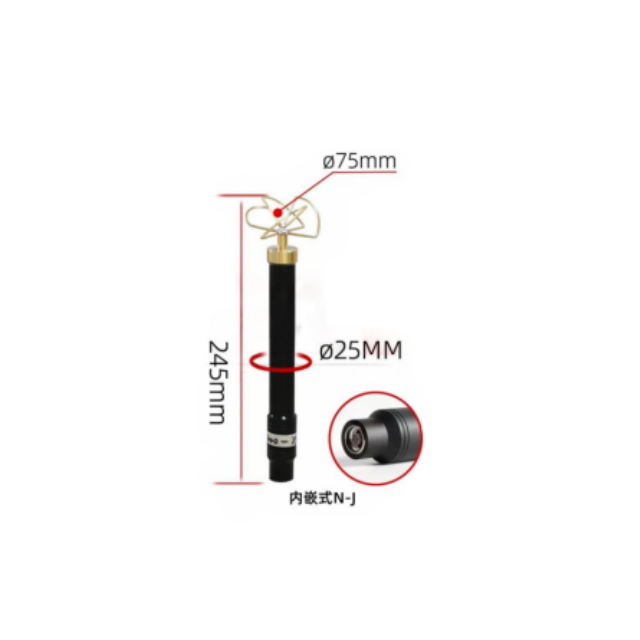

Dimensions- mm | Ф75*245 |
Adapter connector cable | RP-SMA RG195 1m |
Radome material | Fiberglass |
Radome color | BLACK |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Product Introduction
1.Full 360° Omnidirectional Radiation
Perfect circular horizontal coverage ensures reliable connections from any angle - ideal for moving platforms and fixed installations.
2.Commercial 100W Power Handling
Supports high-power transmission for industrial control systems, long-range links, and broadcast applications (10x typical consumer antennas).
3.RHCP Polarization Advantage
Right-Hand Circular Polarization reduces signal nulls during device rotation and minimizes multipath interference in complex environments.
4.Extreme Environmental Resilience
Fiberglass radome withstands 216 km/h winds (60m/s) with IP-rated sealing and operates in -40°C to 60°C temperatures.
5.Professional Connectivity Package
N male base connector + included RP-SMA adapter (1m RG195 cable) ensures compatibility with routers, radios, and controllers.
Application scenarios
Industrial IoT Networks: Machine control in factories

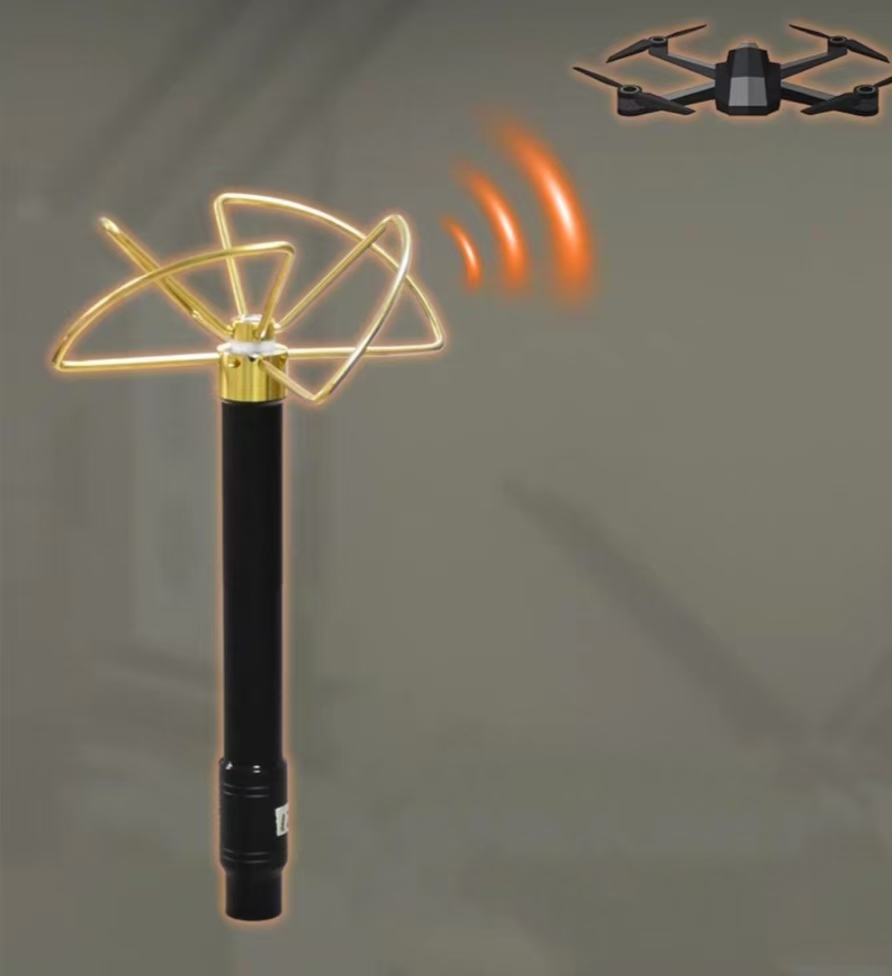

Drone Telemetry: Long-range command/control links
Wireless SCADA Systems: Remote equipment monitoring
WiFi 2.4GHz Access Points: Large-area coverage
Livestock Tracking: Ranch monitoring systems
Marine Communication: Boat control systems
Remote Control Vehicles: Racing/filming platforms
Emergency Response Systems: Command vehicle networks
Q: Why choose 2.4GHz over 5.8GHz?
A: 2.4GHz offers longer range and better wall penetration - ideal for industrial IoT and non-line-of-sight applications.
Q: Can this handle WiFi 6 signals?
A: Yes! Compatible with 2.4GHz WiFi 4/5/6 protocols (2400-2500MHz covers channels 1-13).
Q: How does RHCP improve signal reliability?
A: Rejects reflected signals and maintains connection during device rotation - critical for moving platforms.
Q: Is the 100W rating for continuous transmission?
A: Yes - designed for sustained high-power operation in professional systems.
Q: Why is the radome larger than 5.8GHz models?
A: Lower frequencies require larger elements - Φ75mm optimizes performance at 2.4GHz.
Q: Does DC grounding protect against lightning?
A: Provides path-to-ground for static discharge; use lightning arrestors for direct strike protection.
Q: What's the vertical beamwidth?
A: Typical cloverleaf design offers ≈80° vertical coverage (verify with manufacturer radiation pattern).
