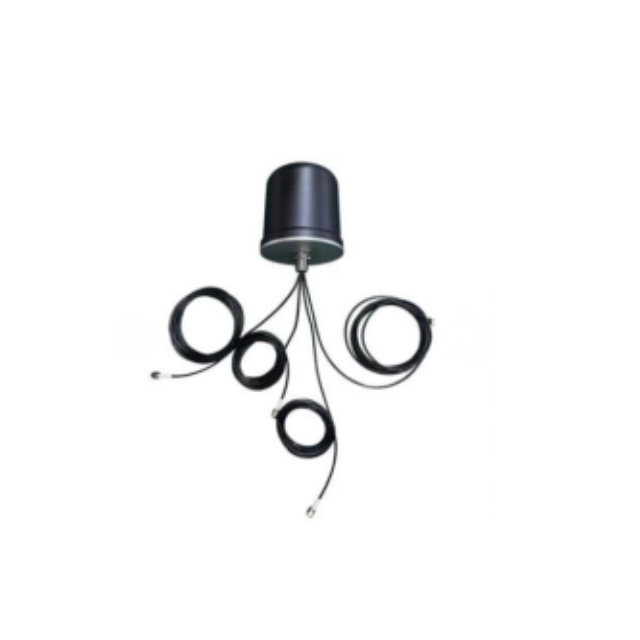

GL606
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Technical Index | ||||
Frequency MHz | 617-960 | 1427-2690 | 3300-5000 | 5150-6000 |
Gain dBi | 3/5 | |||
V.S.W.R | ≤2.5 | ≤1.5 | ||
Polarization | Linear | |||
Input Impedance Ω | 50 | |||
Mechanical Index | ||||
Connector type | 4*SMA male | |||
Cable | 4*RG174 | |||
Environmental | ||||
Humidity | 95%-100%RH | |||
Working Temperature | -40℃ to+85℃ | |||
Mounting way | Screw | |||
Waterproof | IP67 | |||
Antenna Dimension | Φ96*102mm | |||
Weight | 340g | |||
Product Introduction
1.Quad-Band 4x4 MIMO Technology
Covers 617-960MHz (LTE), 1427-2690MHz (4G/5G), 3300-5000MHz (5G NR/CBRS), and 5150-6000MHz (WiFi 6/5GHz) for maximum compatibility.
2.Ultra-Low VSWR ≤1.5
Superior signal efficiency in 1427-2690MHz band minimizes power loss for critical mid-band applications.
3.Industrial-Grade Resilience
IP67 waterproof rating and -40°C to +85°C operating range withstand extreme environments (factories, remote sites).
4.Compact & Lightweight Design
Φ96×102mm dimensions and 340g weight enable flexible deployment on vehicles, drones, or confined spaces.
5.Future-Proof Connectivity
Supports emerging technologies: Private 5G (n78/n48), CBRS, and WiFi 6E with optimized high-frequency performance.
Application scenarios
Private 5G Networks: Factory automation, smart warehouses
CBRS Deployments: Campus security, rural broadband
Drone/UAV Communications: Real-time HD video transmission
Mobile Command Centers: Emergency response vehicles
WiFi 6 Backhaul: Outdoor access point connectivity
Marine/Offshore Systems: Monitoring equipment on vessels
Mining/Construction: IoT sensors in harsh terrain
FAQ
Q: Does this support 5G mmWave?
A: No, it covers sub-6GHz bands (up to 6000MHz) including n48 (CBRS), n77/n78 5G, but not mmWave (24GHz+).
Q: What devices connect to the 4x SMA ports?
A: Cellular routers (e.g., Peplink, Cradlepoint), 5G CPEs, WiFi access points with external antenna ports.
Q: Is cable length customizable?
A: Standard RG174 cables are included; contact us for custom lengths/connectors.
Q: Can I use this for WiFi 6E?
A: Yes! The 5150-6000MHz band supports 5GHz/6GHz WiFi 6/6E access points.
Q: What’s the gain for 3300-5000MHz?
A: Gain varies by band (specified 3/5dBi for 617-960MHz). Typical gain for higher bands: ~4dBi (contact for detailed radiation patterns).
Q: How does VSWR ≤1.5 benefit performance?
A: Reduces signal reflection by 96% vs. standard antennas (VSWR 2.5), maximizing power transfer in mid-bands.
Q: Is grounding required?
A: Recommended for lightning protection in permanent outdoor installations (use grounded mounting brackets).

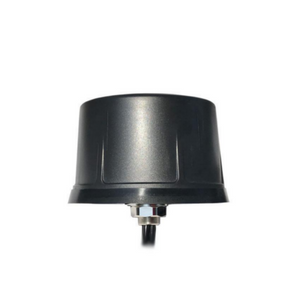

Q: How does GL606 differ from GL603?
A: GL606 adds 3300-6000MHz support for 5G/WiFi 6, uses lighter RG174 cables, and has a smaller form factor.
