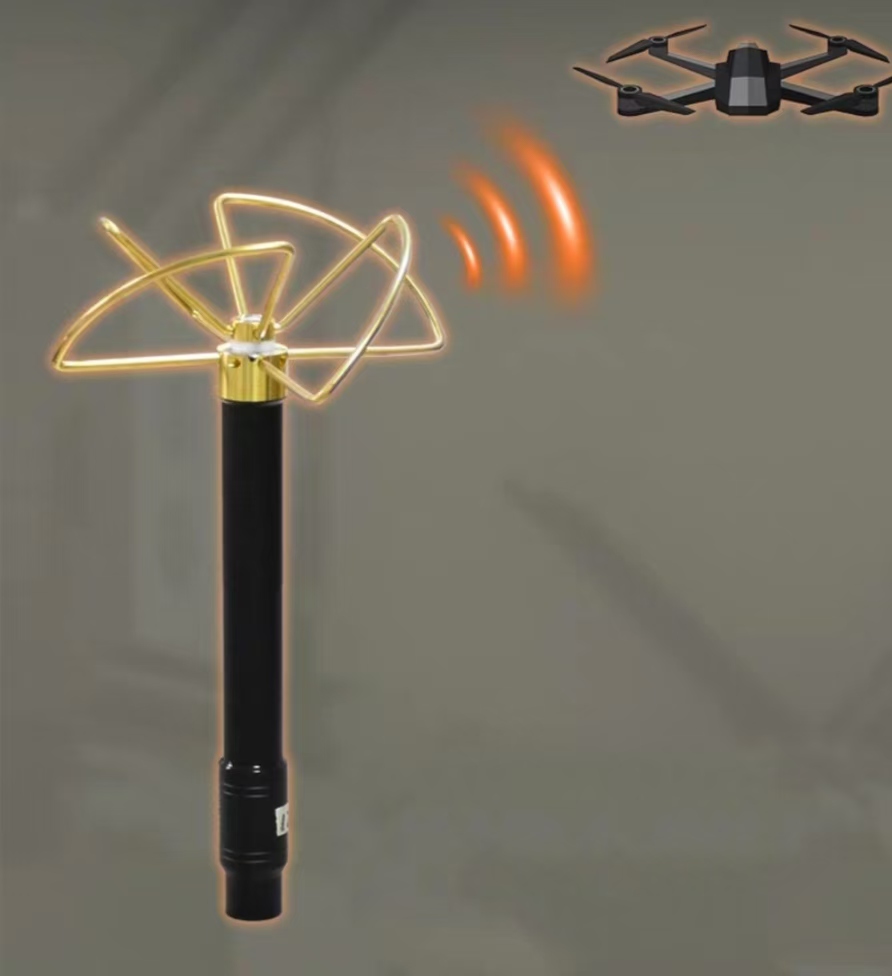

RHCP 3dBi N male connector cloverleaf antenna GL5359-2

Differences between similar products

Product Introduction

1. Wide-band 5.3-5.9GHz Coverage
   Supports 5300-5900MHz frequency range, ideal for 5G NR sub-6GHz, WiFi 6E (5.8GHz), and satellite communication systems, ensuring compatibility with next-gen wireless technologies .

2. 360° Omni-directional Radiation
   With 3dBi gain and 360° horizontal beamwidth, it provides uniform signal distribution for seamless connectivity in all directions, reducing dead zones in wide-area setups .

3. Right-Hand Circular Polarization (RHCP)
   RHCP minimizes multipath interference from reflective surfaces, making it suitable for urban canyons, industrial environments, or satellite communications where signal reflection is common .

4. Rugged Fiberglass Construction
   The fiberglass radome ensures durability against UV, moisture, and impacts, with an operating temperature range of -40℃ to +60℃ and 60m/s wind resistance for outdoor reliability .

5. High Power Handling & Lightning Protection
   Supports up to 100W input power and features DC ground lightning protection, making it suitable for high-output base stations or remote area transmitters .

Application scenarios

• FPV Drones/Racing: Stable video transmission during rapid maneuvers

• Wireless Video Systems: Broadcast cameras, live event streaming

• Industrial IoT: AGV communications in warehouses

• WiFi 6E/7 Access Points: High-density venue coverage

• Marine Communications: Ship-to-shore data links

• Remote Surveillance: 360° security camera systems

• 5.8GHz Radar Systems: Vehicle detection sensors

• Mobile Command Units: Emergency response vehicles




FAQ

Q: Why choose RHCP over linear polarization?
A: RHCP rejects reflected signals and maintains connection when antennas rotate - essential for drones/robotics.

Q: What devices use 5300-5900MHz?
A: WiFi 6E/7 (5.8GHz), C-band radios, drone video transmitters (5.8GHz FPV), and industrial wireless systems.

Q: Can I use this without the RP-SMA adapter?
A: Yes! The native N male connector works with professional gear; the adapter is for consumer devices.

Q: How does DC grounding provide lightning protection?
A: Direct path to ground drains static charges, protecting connected equipment from surges.

Q: Is the 100W power rating for continuous use?
A: Yes - sustained 100W handling enables commercial-grade transmission systems.

Q: Why fiberglass radome instead of plastic?
A: Superior UV resistance, impact protection, and signal transparency at 5.8GHz.

Q: What's the vertical beamwidth?
A: Cloverleaf designs typically offer 70°-80° vertical coverage (confirm with manufacturer radiation pattern).

Q: Can this antenna be mounted horizontally?
A: Yes - omnidirectional performance works in any orientation, but vertical mounting optimizes horizon coverage.
