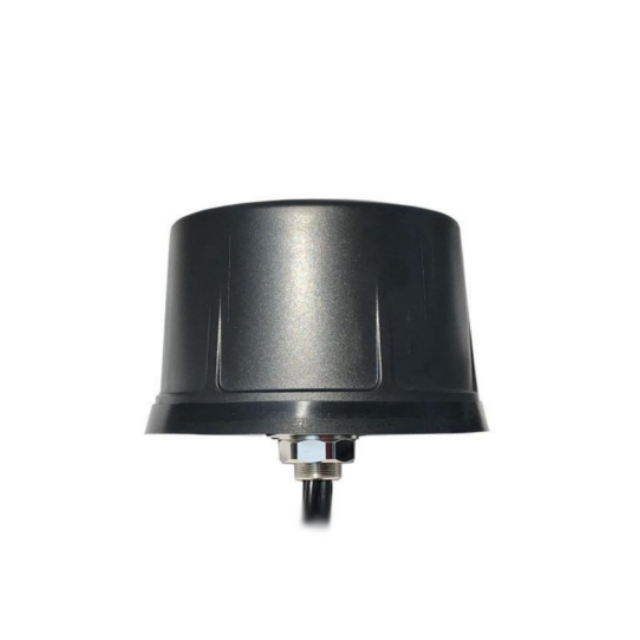

GL603
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Technical Index | |
Frequency MHz | 4x698-960/1710-2700MHz |
Gain dBi | 3/5 |
V.S.W.R | ≤2.5 |
Polarization | Vertical |
Input Impedance Ω | 50 |
Mechanical Index | |
Connector type | 4*SMA male |
Cable | 4*LMR200 |
Material | ABS |
Environmental | |
Humidity | 95%-100%RH |
Working Temperature | -40℃ to+85℃ |
Mounting way | Screw |
Waterproof | IP67 |
Antenna Dimension | Φ140*84.5mm |
Weight | 850g |
Technical Index | |
Frequency MHz | 4x698-960/1710-2700MHz |
Gain dBi | 3/5 |
V.S.W.R | ≤2.5 |
Polarization | Vertical |
Input Impedance Ω | 50 |
Mechanical Index | |
Connector type | 4*SMA male |
Cable | 4*LMR200 |
Material | ABS |
Environmental | |
Humidity | 95%-100%RH |
Working Temperature | -40℃ to+85℃ |
Mounting way | Screw |
Waterproof | IP67 |
Antenna Dimension | Φ140*84.5mm |
Weight | 850g |
Technical Index | |
Frequency MHz | 4x698-960/1710-2700MHz |
Gain dBi | 3/5 |
V.S.W.R | ≤2.5 |
Polarization | Vertical |
Input Impedance Ω | 50 |
Mechanical Index | |
Connector type | 4*SMA male |
Cable | 4*LMR200 |
Material | ABS |
Environmental | |
Humidity | 95%-100%RH |
Working Temperature | -40℃ to+85℃ |
Mounting way | Screw |
Waterproof | IP67 |
Antenna Dimension | Φ140*84.5mm |
Weight | 850g |
Product Introduction
4x4 MIMO Technology for High-throughput
Supports 4x4 MIMO configuration across 698-960/1710-2700MHz bands, enabling simultaneous multi-stream data transmission to boost network capacity and reduce latency .
Dual-band Gain Optimization
Delivers 3dBi gain in low bands (698-960MHz) and 5dBi in high bands (1710-2700MHz), balancing coverage and signal strength for diverse communication needs .
IP67 Waterproof & Rugged Design
Withstands water immersion and dust ingress, making it ideal for outdoor installations. The ABS material resists UV degradation and impacts in harsh environments .
Four SMA Male Connectors
Features 4xSMA male connectors with LMR200 cables, ensuring stable signal transmission and easy integration with MIMO-enabled routers or base stations .
Wide Temperature & Humidity Tolerance
Operates from -40℃ to +85℃ and withstands 95%-100% humidity, ensuring reliable performance in extreme climates .
Application scenarios
Boosting cellular signals for remote IoT sensors (agriculture, utilities).
Enhancing 4G/LTE connectivity in rural homes, farms, or cabins.
Providing reliable backup internet for off-grid businesses.
Improving MIMO performance on industrial routers/gateways in factories.
Enabling mobile network repeaters in vehicles or temporary sites.
Supporting surveillance systems in low-coverage areas.
Deploying smart city infrastructure (kiosks, signage, meters).
FAQ
Q: What frequency bands does the GL603 antenna support?
A: It supports 698-960MHz and 1710-2700MHz bands, covering major global cellular standards.
Q: Is this antenna suitable for outdoor use?
A: Yes, its IP67 waterproof rating and wide operating temperature (-40°C to +85°C) make it ideal for harsh outdoor/industrial environments.
Q: What type of connectors does it have?
A: It comes with 4x SMA male connectors, compatible with most cellular routers/modems.
Q: What is the gain of this antenna?
A: It offers 3dBi gain in the lower band (698-960MHz) and 5dBi gain in the upper band (1710-2700MHz).
Q: Can I use this antenna for 5G networks?
A: While it supports frequencies up to 2700MHz (which includes some 5G bands like n7, n66), it’s primarily optimized for 4G/LTE. Check your specific 5G band requirements.
Q: How is the antenna mounted?
A: It features a screw-mounting design for secure installation on poles, walls, or vehicles.
Q: What cable is used, and is it included?
A: Yes, it includes 4x LMR200 coaxial cables (low-loss, 50Ω impedance) pre-connected to the SMA ports.
Q: What is the VSWR specification?
A: The Voltage Standing Wave Ratio is ≤2.5 across all operating bands, ensuring efficient power transfer.
