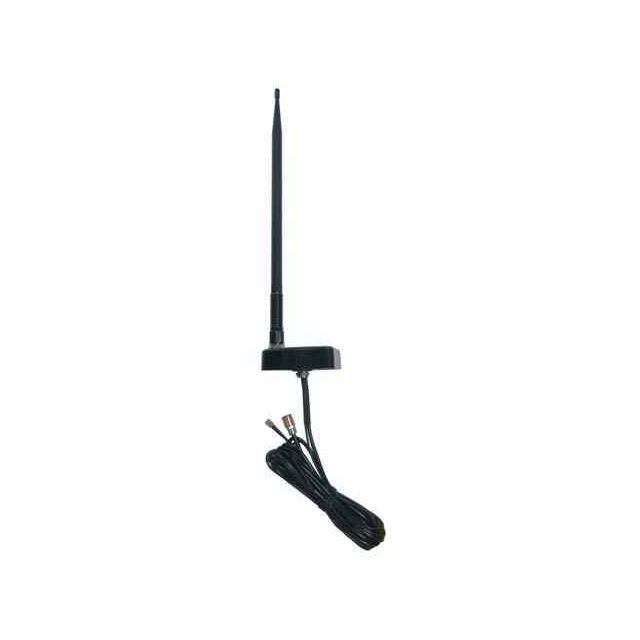

GL-DY1500-2600AV×2
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
GPS Antenna | |
GL-DY1500/2600AV×2 | |
Electrical Index | |
Frequency-MHz | 1575±4 2500～2700 |
Gain-dBi | 5±0.5 ≥ 5 |
VSWR | ≤1.5 ≤ 2 |
LNA Gain-dB | ≥ 28 |
Power Supply DC -V | 3-5 |
Nominal Impedance-Ʊ | 50 |
Polarization | RHCP |
Dimensions-mm | Total Height 435 |
Weight-g | 500 |
Connector | SMA male TNC male |
Mounting way | Fixed with nut |
GPS Antenna | |
GL-DY1500/2600AV×2 | |
Electrical Index | |
Frequency-MHz | 1575±4 2500～2700 |
Gain-dBi | 5±0.5 ≥ 5 |
VSWR | ≤1.5 ≤ 2 |
LNA Gain-dB | ≥ 28 |
Power Supply DC -V | 3-5 |
Nominal Impedance-Ʊ | 50 |
Polarization | RHCP |
Dimensions-mm | Total Height 435 |
Weight-g | 500 |
Connector | SMA male TNC male |
Mounting way | Fixed with nut |
