GL065
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Index | ||||

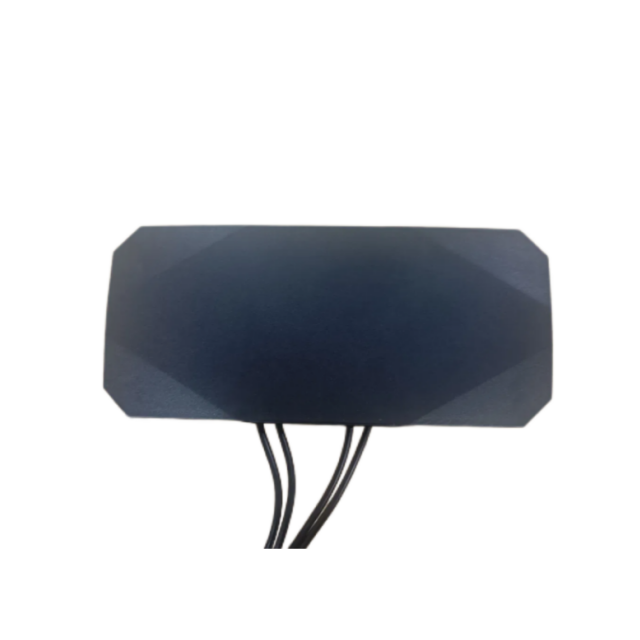

Product Name | GNSS+LTE+LTE+WIFI Combo Antenna | |||
Product Number | GL065 | |||
Frequency Range-MHz | L1: 1559-1609 L5: 1166-1187 | 796-960/1710-2700 | 796-960/1710-2700 | 2400-2483.5 |
Band Width-MHz | 50/21 | 154/980 | 154/980 | 83.5 |
V.S.W.R | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.0 |
Gain-dBi | 2.0dBic(Zenith) | 2.0 | 2.0 | 3.0 |
LNA Gain-dBi | 28±2 | -- | -- | |
Polarization | RHCP | Linear | Linear | |
Supply Voltage | 2.2-5V DC | ----- | ||
Current Consumption | 5-15mA | ----- | ||
Input Impedance-Ω | 50 | |||
Mechanical Index | ||||
Cable-m | 4*RG174-1m | |||
Connector | 4*SMA male | |||
Antenna Dimension-mm | 159*72*20.5 | |||
Installation way | Magnet/3M | |||
Ingress Protection | IP65-IP67(exclude cable outlet) | |||
Vibration | 10 to 55MHz with 1.5mm amplitude 2 hours | |||
Relative Humidity | Up to 95% | |||
Environmentally Friendly | ROHS Compliant | |||
Temperature-℃ | -40-+85 | |||
Product Introduction
Multi-Band Coverage: Supports GNSS (L1/L5), LTE (796-2700MHz), and WiFi (2400-2483.5MHz), ideal for global connectivity in IoT, navigation, and telematics.
High Performance: Built-in LNA with 28±2dB gain for precise GNSS positioning and stable LTE/WiFi signals, even in weak signal areas.
Durable Design: IP65-IP67 protection against dust/water, withstands extreme temperatures (-40°C to +85°C), and vibration-resistant for harsh environments.
Flexible Installation: Magnet or 3M adhesive mounting options for quick setup on vehicles, drones, or industrial equipment.
Eco-Friendly Compliance: ROHS-certified, ensuring environmental safety and compatibility with global regulations.
Application scenarios
Automotive Telematics: Enhances GPS tracking and LTE connectivity for fleet management systems.
Drone Navigation: Provides reliable GNSS positioning and real-time data transmission.
Smart Agriculture: Supports IoT sensors in remote farming with dual LTE bands.
Industrial IoT: Ensures stable connectivity for machinery monitoring in factories.
Outdoor Navigation: Ideal for marine, hiking, or off-road GPS devices.
FAQ
Q: What connectors does the GL065 antenna use?
A: 4x SMA male connectors with 1m RG174 cables.
Q: Is this antenna waterproof?
A: Yes, it has IP65-IP67 protection (excluding cable outlets).
Q: Can it operate in extreme temperatures?
A: Yes, it works from -40°C to +85°C.
Q: Does it support 5G networks?
A: No, it covers LTE bands up to 2700MHz.
Q: What’s the power consumption for GNSS?
A: Only 5-15mA at 2.2-5V DC, ideal for low-power devices.
Q: Is the antenna compatible with drones?
A: Yes, its lightweight design and magnet mounting suit drones.
Q: Are replacement cables available?
A: Contact support for RG174 cable replacements.
Q: Is it ROHS certified?
A: Yes, fully compliant with environmental standards.
