GL005C
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | ||
GPSGlonass Antenna | Dielectric Antenna | Frequency Range | 1559.052~ 1602MHz 1164~ 1259MHz |
Polarization | RHCP | ||
Gain | 3dBic（Zenith） | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
LNA | Gain | 28±2dB | |
Noise Figure | <2dB | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | 5-15mA | ||
LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
V.S.W.R | <3.0 | ||
Polarization | Linear | ||
Gain | 2.5dBi | ||
Impedance | 50Ω | ||
Mechanical | Cable | RG58, 10m | |
Connector | SMA male/N female | ||
Material | ABS | ||
| Screw | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP67 (exclude cable outlet) | ||
Environmentally Friendly | ROHS Compliant | ||

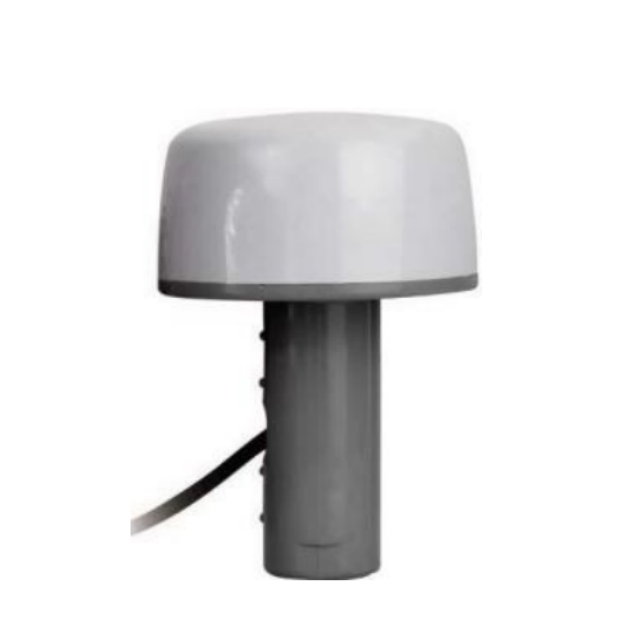

Product Introduction
① Dual-Band GPS + LTE Integration
Combines GPS/Glonass (1559-1602MHz, 1164-1259MHz) and LTE/GSM (698-2690MHz) in a single unit, ideal for devices requiring both positioning and cellular connectivity.
② High-Performance LNA
Features a built-in 28dB ±2 low-noise amplifier (LNA) with <2dB noise figure, ensuring superior signal clarity for high-precision applications like surveying and asset tracking.
③ Rugged & Weatherproof Design
IP67-rated (excluding cable outlet) with ABS housing, operating in extreme temperatures -40°C to +85°C, perfect for harsh outdoor and industrial environments.
④ Low Power Consumption
Only 5-15mA current draw at 2.2-5V DC, making it energy-efficient for battery-powered IoT and portable devices.
⑤ Flexible Connectivity & Mounting
Includes 10m LMR100 cable with SMA male/N female connector options, plus screw mounting for secure installation on vehicles, drones, and equipment.
Application Scenario
Fleet Management: Combines real-time GPS tracking with LTE data transmission.
Precision Agriculture: Enables autonomous farming equipment with dual-band connectivity.
Industrial IoT: Reliable signal for remote sensors and monitoring systems.
Marine & Outdoor Navigation: Weatherproof design for boats and adventure gear.
Emergency Communication Devices: Backup LTE with GNSS positioning for rescue operations.
FAQ
Q: What frequencies does the LTE antenna support?
A: 698-960MHz and 1710-2690MHz, covering global 4G/3G/2G bands.
Q: Is the LNA built into the antenna?
A: Yes! It includes a 28dB gain LNA with ultra-low noise (<2dB) for enhanced signal reception.
Q: Can I choose different connector types?
A: Yes! Options include SMA male, N female, MCX, MMCX, SMB, TNC, or BNC (contact info@global-antenna.com for customization).
Q: What’s the cable length and type?
A: Standard 10m LMR100 cable (custom lengths available upon request).
Q: Does it support GLONASS and Galileo?
A: Yes, alongside GPS (L1/L2 bands).
Q: What’s the gain of the GNSS antenna?
A: 3dBic at zenith with RHCP polarization for stable satellite reception.
Item | Specifications | ||
GPSGlonass Antenna | Dielectric Antenna | Frequency Range | 1559.052~ 1602MHz 1164~ 1259MHz |
Polarization | RHCP | ||
Gain | 3dBic（Zenith） | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
LNA | Gain | 28±2dB | |
Noise Figure | <2dB | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | 5-15mA | ||
LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
V.S.W.R | <3.0 | ||
Polarization | Linear | ||
Gain | 2.5dBi | ||
Impedance | 50Ω | ||
Mechanical | Cable | RG58, 10m | |
Connector | SMA male/N female | ||
Material | ABS | ||
| Screw | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP67 (exclude cable outlet) | ||
Environmentally Friendly | ROHS Compliant | ||
Product Introduction
① Dual-Band GPS + LTE Integration
Combines GPS/Glonass (1559-1602MHz, 1164-1259MHz) and LTE/GSM (698-2690MHz) in a single unit, ideal for devices requiring both positioning and cellular connectivity.
② High-Performance LNA
Features a built-in 28dB ±2 low-noise amplifier (LNA) with <2dB noise figure, ensuring superior signal clarity for high-precision applications like surveying and asset tracking.
③ Rugged & Weatherproof Design
IP67-rated (excluding cable outlet) with ABS housing, operating in extreme temperatures -40°C to +85°C, perfect for harsh outdoor and industrial environments.
④ Low Power Consumption
Only 5-15mA current draw at 2.2-5V DC, making it energy-efficient for battery-powered IoT and portable devices.
⑤ Flexible Connectivity & Mounting
Includes 10m LMR100 cable with SMA male/N female connector options, plus screw mounting for secure installation on vehicles, drones, and equipment.
Application Scenario
Fleet Management: Combines real-time GPS tracking with LTE data transmission.
Precision Agriculture: Enables autonomous farming equipment with dual-band connectivity.
Industrial IoT: Reliable signal for remote sensors and monitoring systems.
Marine & Outdoor Navigation: Weatherproof design for boats and adventure gear.
Emergency Communication Devices: Backup LTE with GNSS positioning for rescue operations.
FAQ
Q: What frequencies does the LTE antenna support?
A: 698-960MHz and 1710-2690MHz, covering global 4G/3G/2G bands.
Q: Is the LNA built into the antenna?
A: Yes! It includes a 28dB gain LNA with ultra-low noise (<2dB) for enhanced signal reception.
Q: Can I choose different connector types?
A: Yes! Options include SMA male, N female, MCX, MMCX, SMB, TNC, or BNC (contact info@global-antenna.com for customization).
Q: What’s the cable length and type?
A: Standard 10m LMR100 cable (custom lengths available upon request).
Q: Does it support GLONASS and Galileo?
A: Yes, alongside GPS (L1/L2 bands).
Q: What’s the gain of the GNSS antenna?
A: 3dBic at zenith with RHCP polarization for stable satellite reception.

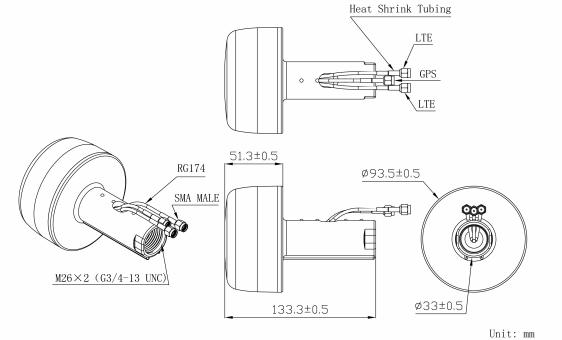

Mounting Method
