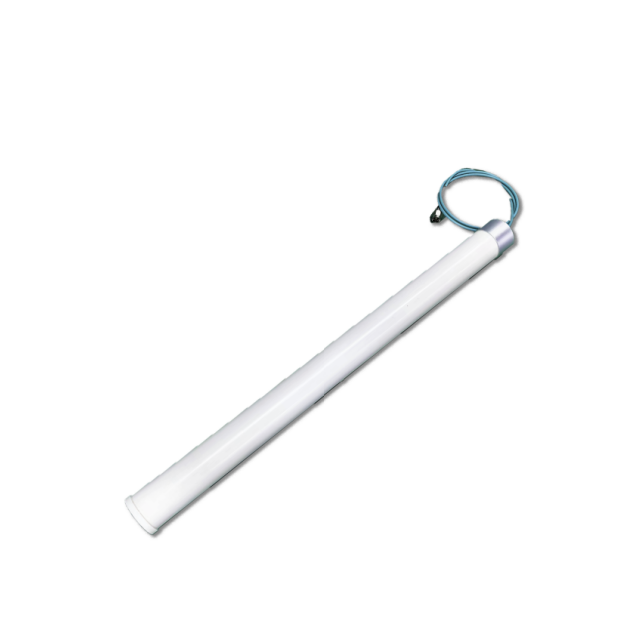

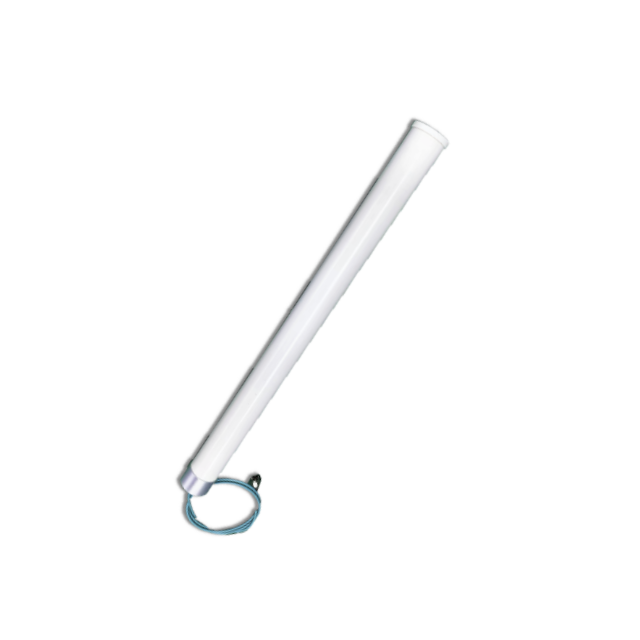

GL6940V5
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 698-960/1710-2700/3400-4000 |
VSWR | ≤2.0 |
Gain- dBi | 4 |
Horizontal beam width | 360° |
Verticalbeam width | 55° |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Maximum input power- W | 50 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N female |
Connector place | Bottom |
Dimensions- mm | Ф60*780mm |
Antenna weight- kg | 0.68 |
Radome material | PVC |
Radome color | White |
Operating temperature | -40°c～60°c |
Rated Wind Velocity- m/s | 60 |
Installation mode | Use with suction cup and other mounting seat |
Product Introduction
Wide-band 5G Compatibility
Supports 698-960/1710-2700/3400-4000MHz frequency ranges, covering sub-6GHz 5G bands, 4G/LTE, and wireless systems for versatile connectivity 。
Omni-directional Signal Coverage
With 4dBi gain and 360° horizontal beamwidth, it delivers uniform signal distribution, ideal for wide-area networks and public wireless hotspots 。
Durable All-Weather Design
Constructed with high-quality PVC radome, it withstands -40℃ to 60℃ temperatures and 60m/s wind velocity, ensuring reliable performance in harsh environments 。
Easy Installation Options
Compatible with suction cups and various mounting seats, enabling flexible deployment on rooftops, vehicles, or equipment 。
High Power Handling
Supports up to 50W input power, suitable for base stations, repeaters, and high-output wireless systems 。

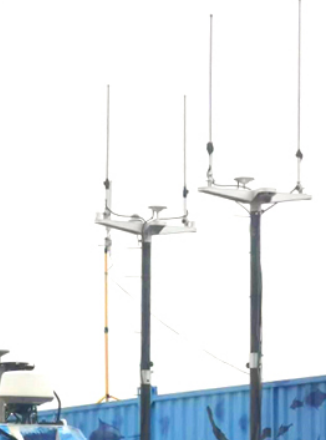

Application scenarios
Public Wireless Hotspots: Deploying reliable outdoor WiFi coverage in parks, plazas, or campuses.
5G Small Cell / Base Stations: Enhancing coverage and capacity for 5G NR networks in dense urban or rural areas.
Fixed Wireless Access (FWA): Providing last-mile broadband connectivity in point-to-multipoint setups.
IoT/M2M Gateways: Connecting dispersed sensors and devices in smart city or industrial applications.
Telecom Cabinet Top-Mount: Extending coverage from street cabinets or enclosures.
Temporary Network Solutions: Rapid deployment on vehicles or portable poles using suction cup mounts.
FAQ
Q: What frequency bands does the GL6940V5 antenna support?
A: It supports three key ranges: 698-960 MHz, 1710-2700 MHz, and 3400-4000 MHz, covering essential 5G NR, LTE, and 3G bands globally.
Q: Is this antenna suitable for permanent outdoor installation?
A: Absolutely. Its PVC radome, IP-rated construction, and operating temperature range (-40°C to +60°C) ensure reliable, all-weather operation.
Q: How is the antenna protected against lightning?
A: It features DC grounding for lightning protection. Ensure it's properly grounded via the mounting hardware during installation.
Q: What type of connector does it use?
A: It uses a standard N-type female connector located at the bottom of the antenna.
Q: How much wind can this antenna withstand?
A: It is rated for wind speeds up to 60 meters per second (m/s) when correctly installed.
Q: What mounting options are available?
A: It's designed for use with suction cups or other standard mounting seats (like poles or masts) via its bottom mounting point.
Q: What is the gain and coverage pattern?
A: It offers 4 dBi gain with a true 360° horizontal beamwidth and a 55° vertical beamwidth for wide, uniform coverage.
Q: What is the maximum power input?
A: The antenna can handle a maximum continuous input power of 50 Watts.
