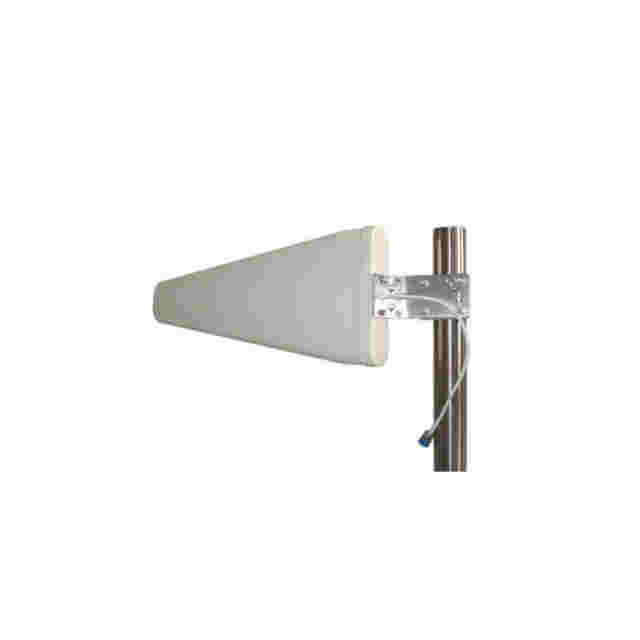

GL-1500AN12
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Index |
PN | GL-1500AN12 |
Frequency Range (MHz) | 1400-1550 |
Bandwidth (MHz) | 150 |
Gain (dBi) | 12 |
V.S.W.R | ≤1.5 |
Horizontal Beamwidth (⁰) | 50 |
Vertical Beamwidth (⁰) | 40 |
Nominal Impedance (Ω) | 50 |
Polarization | Vertical |
Max power input（W） | 100 |
Length (mm) | 450*210*65 |
Weight (kg) | 1 |
Connector | N female or Customization |
Remarks | Poles mounting |
Item | Index |
PN | GL-1500AN12 |
Frequency Range (MHz) | 1400-1550 |
Bandwidth (MHz) | 150 |
Gain (dBi) | 12 |
V.S.W.R | ≤1.5 |
Horizontal Beamwidth (⁰) | 50 |
Vertical Beamwidth (⁰) | 40 |
Nominal Impedance (Ω) | 50 |
Polarization | Vertical |
Max power input（W） | 100 |
Length (mm) | 450*210*65 |
Weight (kg) | 1 |
Connector | N female or Customization |
Remarks | Poles mounting |
External GPS Antenna
Ceramic antenna
Internal GPS Antenna
Surveying Antenna
Magnet Antenna
Patch Antenna
Rubber Antenna
Screw Antenna
Spring Antenna
Other Indoor Coverage Antenna&outdoor Wlan Antenna
2.4G Antenna
5.8G Antenna
Outdoor Yagi TV Antenna

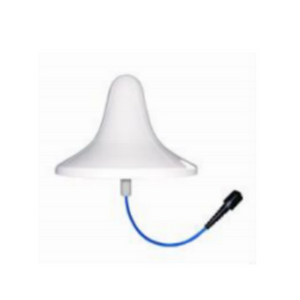

Ceiling mount antenna
