GL-DY7027V3C
Asialeren
8517710000
100pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range- MHz | 698-960 | 1710-2700 |
VSWR | ≤1.8 | ≤1.5 |
Gain-dBi | 2.5 | 3.5 |
Horizontal beam width | 360° | 360° |
Verticalbeam width | 65° | 55° |
Polarization | Vertical | |
Intermodulation IM3 (2x33dBm)- dBc | ≤-150 | |
Input Impedance-Ω | 50 | |
Maximum input power-W | 50 | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Input connector type | N-K | |
Dimensions-mm | Ø165×100 | |
Antenna weight-KGS | 0.3 | |
Radiating Element Material | AI | |
Radome material | ABS | |
Radome color | White | |
Operating temperature | -40°C to +65 °C | |
Product Introduction
Dual-Band Coverage (698-960MHz & 1710-2700MHz): Supports 4G, 5G, and WLAN networks, ensuring seamless connectivity in modern smart buildings, offices, and retail environments.
Vertical Polarization & 360° Omnidirectional Signal: Eliminates dead zones with uniform coverage, enhancing signal penetration through walls and floors for consistent indoor performance.

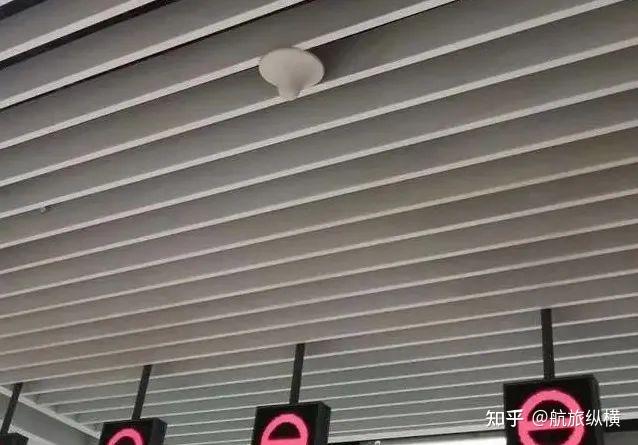

Compact & Lightweight Design (Ø165×100mm, 0.3kg): Effortless ceiling installation with minimal visual impact, ideal for discreet integration in tight spaces or aesthetic-sensitive areas.
Industrial-Grade Durability: Features an anti-UV ABS radome and aluminum core, resisting corrosion, yellowing, and extreme temperatures (-40°C to +65°C).
High Power Handling (50W) & Low Intermodulation (IM3 ≤-150dBc): Delivers interference-free performance for high-density environments like airports, conference halls, or IoT hubs.
Application scenarios
Corporate Offices: Enhances cellular and Wi-Fi coverage in open-plan workspaces and meeting rooms.
Retail Stores: Supports IoT devices, POS systems, and customer Wi-Fi with reliable connectivity.
Healthcare Facilities: Ensures critical communication for medical equipment and staff devices.
Educational Institutions: Provides seamless coverage in classrooms, libraries, and auditoriums.
FAQ
Q:Is the GL - DY7027V3C compatible with all indoor wireless devices?
A:As long as the wireless devices operate within the 698 - 960MHz or 1710 - 2700MHz frequency bands, the GL - DY7027V3C should be compatible.
Q:Can it be used outdoors?
A:No, it’s designed for indoor use. The ABS radome lacks full waterproofing.
Q:What is the vertical beamwidth?
A:65° (698-960MHz) and 55° (1710-2700MHz), optimized for multi-floor signal distribution.
Q:Does it require a ground plane?
A:No, the omnidirectional design eliminates the need for additional grounding.
Q:Is the N-K connector compatible with standard cables?
A:Yes, it works with standard N-type connectors for easy integration.
