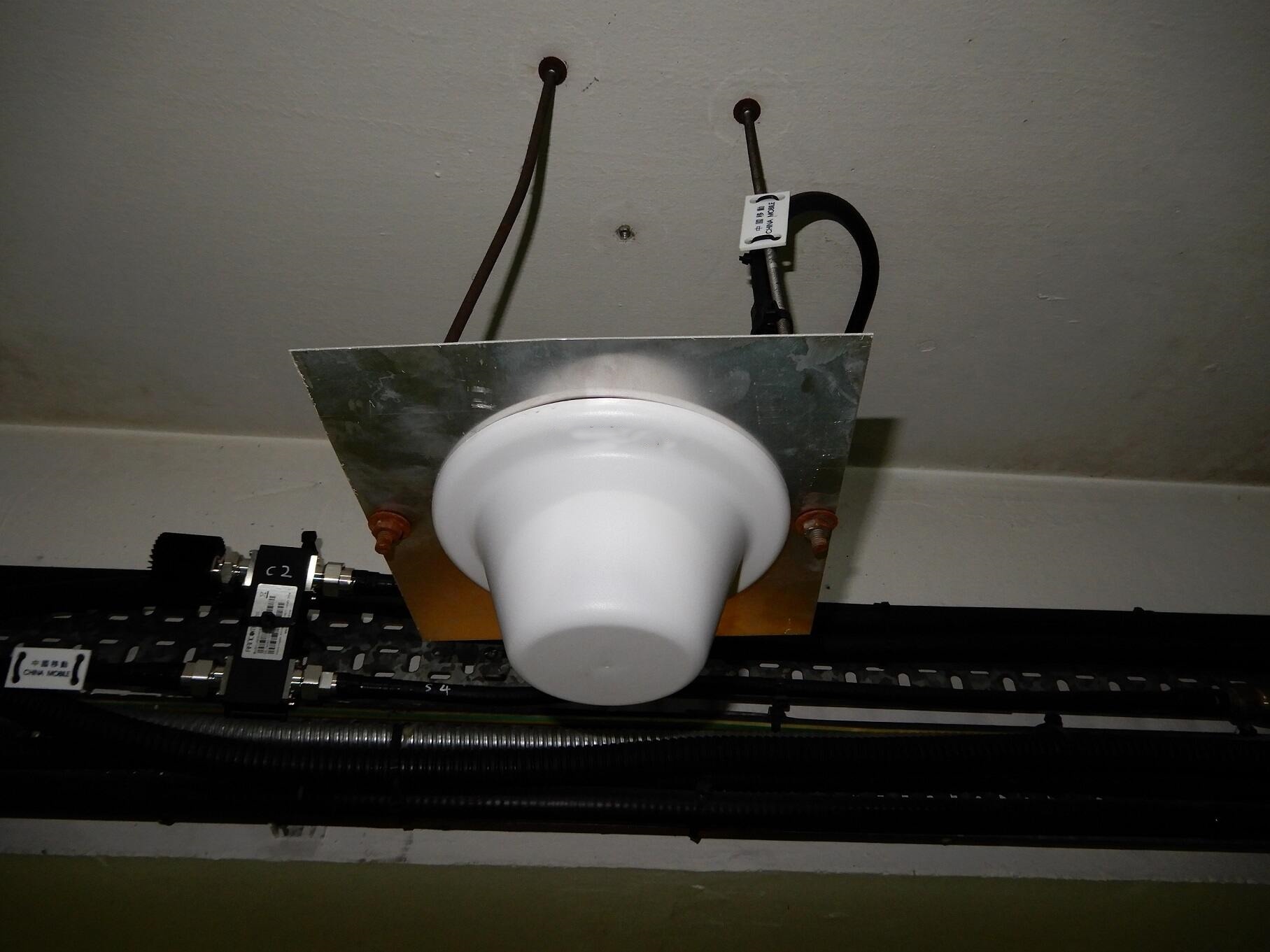

Dual Band Coverage ABS Radome Omni Ceiling Mount Antenna for Indoor using GL-DY7027V3A

Comparative Analysis: GL-DY7027V3A vs GL-DY380960V3

Product Introduction

1. Dual-Band Coverage (698-960MHz & 1710-2700MHz): Supports 4G, 5G, and WLAN networks, ensuring seamless connectivity in offices, malls, and smart buildings.

2. Vertical Polarization & 360° Omnidirectional Signal: Optimized for indoor environments, eliminating dead zones and enhancing signal penetration through walls and floors.

3. Ultra-Lightweight Design (0.3kg, Ø186×86mm): Easy ceiling installation with minimal structural impact, ideal for discreet integration in modern interiors.

4. Anti-UV ABS Radome & Aluminum Core: Resists yellowing and physical wear, operating reliably in extreme temperatures (-40°C to +65°C).

5. High Power Handling (50W) & Low VSWR (≤1.5): Ensures minimal signal loss and interference for high-density areas like conference halls or airports.

Application scenarios

• Corporate Offices: Enhances cellular and Wi-Fi coverage in open-plan workspaces and meeting rooms.

• Retail Stores: Provides consistent connectivity for POS systems, IoT sensors, and customer Wi-Fi.

• Healthcare Facilities: Supports critical communication systems and medical IoT devices in hospitals.

• Educational Campuses: Ensures reliable signal distribution in classrooms and auditoriums.

FAQ

Q:Is this antenna compatible with 5G networks?
A:Yes, it covers 1710-2700MHz, including key 5G sub-6GHz bands.

Q:Can it be mounted outdoors?
A:No, it’s designed for indoor use only. The ABS radome is not fully waterproof.

Q:What is the vertical beamwidth?
A:65° (698-960MHz) and 55° (1710-2700MHz), ideal for multi-floor coverage.

Q:Does it require a separate ground plane?
A:No, the omnidirectional design eliminates the need for additional grounding.

Q:Is the N-K connector compatible with standard cables?
A:Yes, it works with standard N-type connectors for easy integration.
