High-gain 11dBi LTE Wireless System LPDA Antenna GL-DY8027V11

Product Introduction

●High Gain Performance: Achieve exceptional signal strength with a 10/11 dBi gain, ensuring reliable connectivity for your devices.

●Versatile Compatibility: Designed for a wide range of applications, including 2G, 3G, WLAN, and LTE wireless systems.

●Durable Construction: Features an N-K connector made from AI radiating element material, providing enhanced durability and performance.

●Weather-Resistant Design: Crafted with a robust ABS radome material that offers strong protection against environmental elements, ensuring longevity.

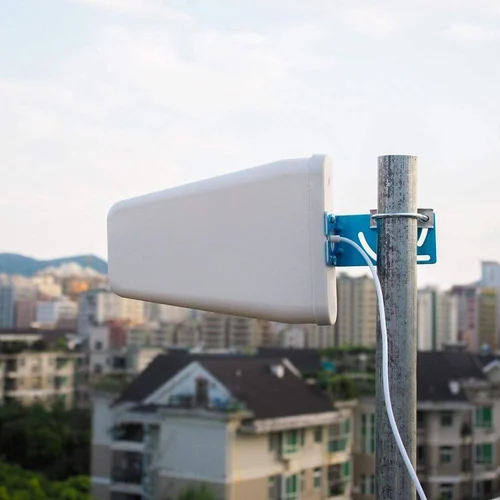

●Easy Installation: Convenient pole-holding installation method allows for effortless setup and positioning for optimal signal reception.

●Broadband Capabilities: Supports a wide frequency range, making it ideal for various wireless applications while maintaining excellent performance.

Similarities: GL-DY8027V11 and GL-DY8027V9 both belong to LPDA antenna.

Differences:

1. Frequency Range

The frequency range of GL-DY8027V11 is 695-960MHz and 1710-2700MHz; The frequency range of GL-DY8027V9 is 806-960MHz and 1710-2700MHz. GL-DY8027V11 has a wider coverage in low frequency bands, and GL-DY8027V11 is more suitable for some communication scenarios that need to cover lower frequency bands, such as some specific 2G bands or other low frequency communication applications.

2. Gain

GL-DY8027V11 has gains of 10dB and 11dB in two frequency bands respectively; The gain of GL-DY8027V9 in the two frequency bands is 8dB and 9dB respectively. Gain represents the ability of an antenna to radiate or receive signals in a specific direction. The higher the gain, the stronger the signal strength of the antenna in that direction. Therefore, GL-DY8027V11 is slightly better than GL-DY8027V9 in terms of signal gain, and GL-DY8027V11 may be able to provide longer transmission distance or stronger signal reception capability under the same transmit power.

3.Dimensions and Antenna weight

The size of GL-DY8027V11 is 440×210×65mm, and the weight is 1.2KGS; The size of GL-DY8027V9 is 295×210×65mm and the weight is 0.9KGS. GL-DY8027V9 is smaller in size and weight than GL-DY8027V11, which may make it more convenient during installation and transportation and relatively less demanding for the installation environment.

Application Scenarios

Rural/remote areas: Addressing base station coverage issues in weak signal areas

Densely built-up areas: Directional wall penetration to enhance indoor signal quality

Temporary communication sites: Rapid deployment of mobile emergency communication systems

IoT base stations: Data transmission for drones and smart agricultural equipment

Blind spot remediation: Addressing blind spots in tunnels, warehouses, and other special environments

FAQ

Q: What is the gain of the LPDA Antenna GL-DY8027V11?

A: The LPDA Antenna GL-DY8027V11 offers an impressive gain of 10/11 dBi, allowing for enhanced signal strength and improved performance in a variety of applications.

Q: What type of connector does this antenna utilize?

A: This antenna is equipped with an N-K connector, ensuring compatibility with a range of devices and facilitating seamless integration into your existing setup.

Q: What materials are used in the construction of the LPDA Antenna?

A: The GL-DY8027V11 features AI radiating elements for superior conductivity and efficiency, while the ABS radome material enhances durability and resistance to environmental factors.

Q: How is the antenna installed?

A: The LPDA Antenna GL-DY8027V11 employs a pole-holding installation method, making it easy to mount securely on a variety of poles, ensuring stability and optimal positioning.

Q: What are the dimensions and weight of the LPDA Antenna?

A: The dimensions of the GL-DY8027V11 antenna are 440mm x 210mm x 65mm, and it weighs 1.2 kg, making it a manageable addition to your setup without compromising on performance.

Q: Is this antenna suitable for outdoor use?

A:Yes, the robust ABS radome material provides excellent weather resistance, making the LPDA Antenna GL-DY8027V11 suitable for outdoor installations where durability is key.

Q: What applications is the LPDA Antenna ideal for?

A:This antenna is ideal for various applications, including telecommunications, wireless data transmission, and broadcasting, making it a versatile solution for both professional and commercial use.
