GL400Z5WS
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

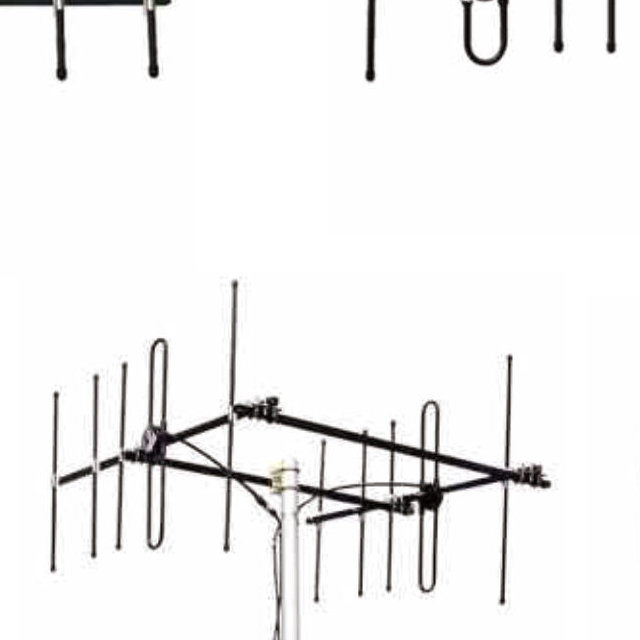

Yagi Antenna | |
GL400Z5WS | |
Electrical Index | |
Frequency-MHz | 400-490 |
Bandwidth-MHz | 20 |
Gain-dBi | 9 |
Vertical Beamwidth-º | 48 |
Horizontal Beamwidth-º | 54 |
F/B Ratio-dB | ≥15 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Length-m | 0.7 |
Weight-kg | 0.6 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
Yagi Antenna | |
GL400Z5WS | |
Electrical Index | |
Frequency-MHz | 400-490 |
Bandwidth-MHz | 20 |
Gain-dBi | 9 |
Vertical Beamwidth-º | 48 |
Horizontal Beamwidth-º | 54 |
F/B Ratio-dB | ≥15 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Length-m | 0.7 |
Weight-kg | 0.6 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female or Customization |
