GL027
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Main technical specifications | |
Frequency Range (MHZ) |
2400 |
Gain(dBi) | >2 |
Connector | IPEX/IPX/U.FL |
Efficiency (dBi) | -0.89 |
Efficiency (%) | 81.46 |
Directivity (dB) | 5.12 |
Peak Gain Position (Theta) |
180.00 |
Peak Gain Position (Phi) | 330.00 |
Efficiency ThetaPol (%) | 20.90 |
Efficiency PhiPol (%) |
60.56 |
OUpper Hem. Efficiency (%) |
39.93 |
Lower Hem. Efficiency(%) | 41.54 |
Antenna width | 52mm |
Antenna length | 130mm |
Product Introduction

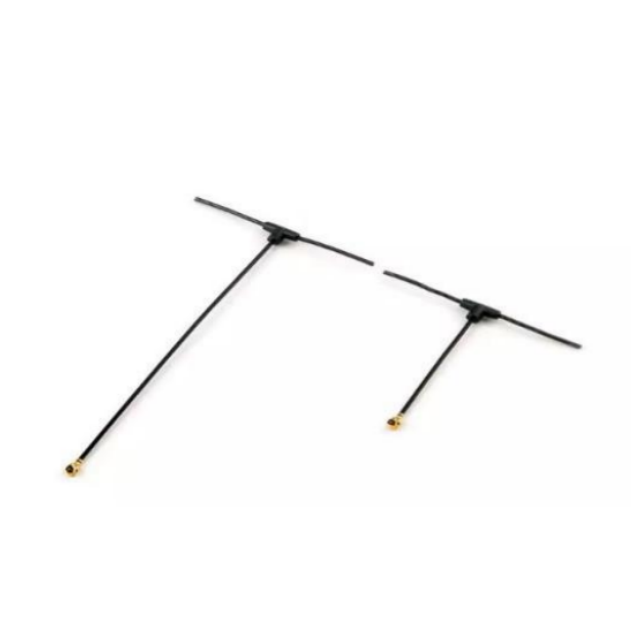

1. Compact and Efficient Design: Featuring a T-shaped structure measuring only 130x52mm, it boasts an efficiency of up to 81.46%, making it ideal for space-constrained embedded devices.
2. Omnidirectional Coverage: Featuring an omnidirectional radiation pattern and dual polarizations (Theta and Phi) (efficiencies of 20.9% and 60.56%, respectively), it enables multi-angle signal reception.
3. Plug-and-Play Compatibility: Standard IPEX/IPX/U.FL connectors ensure compatibility with routers, WiFi modules, IoT devices, and industrial control equipment.
4. Stable Performance: Gain > 2dBi, balanced efficiency in the upper and lower hemispheres (39.93% in the upper hemisphere and 41.54% in the lower hemisphere), ensuring signal stability and uniform coverage.
5. Easy Installation: Lightweight design connects directly to the motherboard interface, eliminating the need for additional debugging, making it suitable for quick replacement or integrated development.
Application Scenarios
Built-in antenna boost for home/enterprise routers
Signal extension for industrial wireless devices (e.g., PLCs, HMIs)
IoT devices (smart homes, sensors)
Image transmission module antenna for drones and robots
WiFi connectivity for embedded system development boards
FAQ
Q: What frequency range does the GL027 Wi-Fi Antenna support?
A: It supports the 2400MHz Wi-Fi frequency range.
Q: What is the gain of this T-shaped omni antenna?
A: Its gain is greater than 2dBi.
Q: Which connectors are compatible with the GL027?
A: It is compatible with IPEX, IPX, and U.FL connectors.
Q: What is the overall efficiency of the antenna?
A: The overall efficiency of the GL027 is 81.46%.
Q: What are the dimensions of the GL027?
A: It has a width of 52mm and a length of 130mm.
Q: What is the directivity value of this Wi-Fi antenna?
A: Its directivity is 5.12dB.
