English
GL158
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Main technical specifications | |
Frequency Range(MHZ) | 860-928 |
Impedance(Ω) | 50 |
Gain(dBi) | ≤3.2 |
VSWR | ≤2.0 |
Polarization | Vertical polarization |
Connector Type | IPEX/Weld |
Physical Properties | |
Wire length | 150mm |
Wire specifications | OD1.13 |
Fixed method | 3M double-sided adhesive |

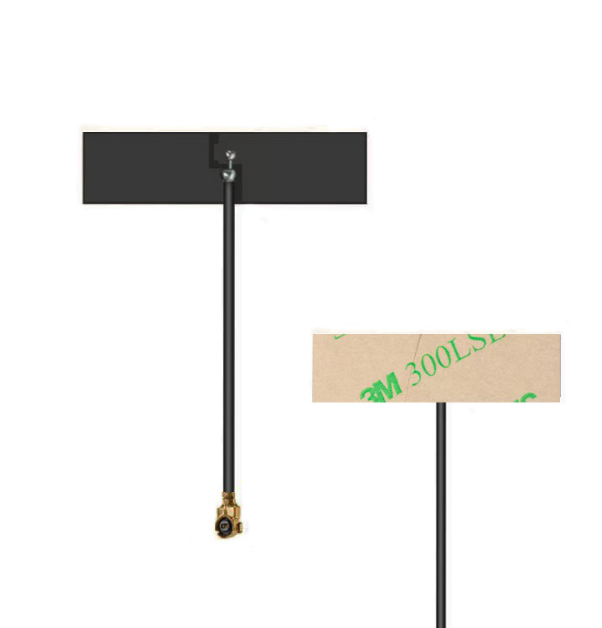

Product Introduction
1. Precise Frequency Band Coverage: Optimized for the 860-928MHz UHF band, it perfectly supports applications such as RFID and IoT transmission, delivering stable performance within the band.
2. Highly Integrated and Easy to Install: Featuring a built-in PCB design, a 150mm cable length, and an IPEX connector (solderable compatible), it is compatible with mainstream RF modules and secures with 3M double-sided tape for quick integration into devices.
3. Excellent Electrical Performance: Gain ≤3.2dBi, VSWR ≤2.0, and an impedance of 50Ω ensure efficient signal transmission and reception with low-loss transmission.
4. Vertical Polarization Design: Enhances signal penetration and stability, making it particularly suitable for directional communication scenarios such as tag reading and writing, and data collection.
5. Lightweight and Durable Construction: The ODI.13 cable is flexible and bend-resistant, suitable for long-term use in industrial environments.
Application Scenarios
UHF RFID Reader/Writer (Warehouse Management, Retail Anti-theft)
IoT Terminal Devices (Smart Meters, Asset Tracking)
Industrial Wireless Data Acquisition Modules
Handheld Terminal Devices (PDAs, Barcode Scanners)
Remote Monitoring Sensor Networks
FAQ
Q: What communication protocols does this antenna support?
A: It primarily supports wireless communications in the 860-928 MHz frequency band, including UHF RFID (such as EPC Gen2), LoRa, and proprietary protocols.
Q: Does the antenna require impedance matching?
A: The antenna is designed for 50Ω impedance and can directly match standard RF circuits without additional matching.
Q: Is the IPEX connector easy to detach?
A: The IPEX connector has a locking mechanism for a secure connection and can also be permanently secured by soldering.
Q: Will the double-sided tape lose its effectiveness in high-temperature environments?
A: 3M industrial-grade double-sided tape is included as standard, providing excellent temperature resistance. However, auxiliary fixing is recommended for long-term high-temperature environments.
Q: What is the approximate range of a 3.2 dBi gain antenna? A: The range depends on the transmit power and environment, but typically can reach 10-50 meters (depending on the specific device and environment).
Q: Does it support multi-band operation?
A: No. The GL158 is a narrowband antenna designed for the 860-928MHz frequency band and does not support other frequency bands.
