English
GL-DY107
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

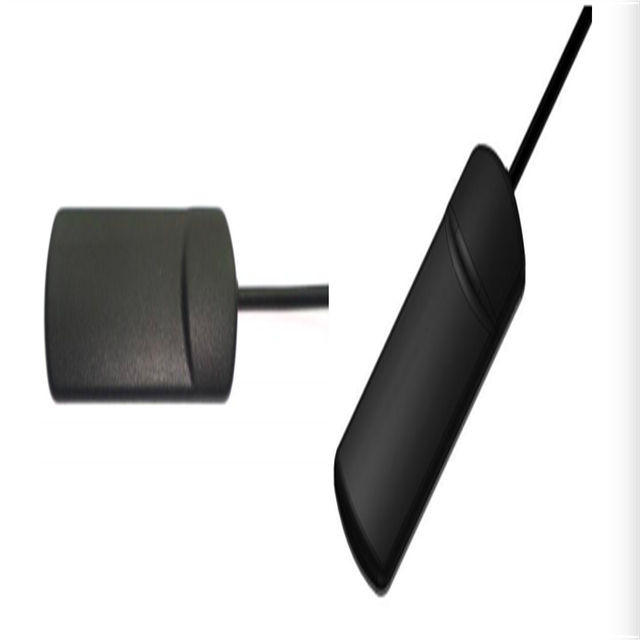

868MHz Sticky Antenna | |
GL-DYG107 | |
Electrical Index | |
Frequency-MHz | 868 |
VSWR | ＜1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Gain-dBi | 2.5 |
Mechanical Index | |
Cable Length | RG174 or RG1.13 |
Connector | UFL |
Antenna Dimension-mm | 115.6*21.7*5.8 |
Installation Way | 3M sticky |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY107 | GL148 | GL-DY152 |
| Frequency range-mhz | 868 | 868 | 698-6000 |
| Gain-dBi | 2.5 | 3 | 5 |
| connector | UFL | IPEX | IPEX |
Product Introduction
Optimized for 868MHz Applications
Operates at 868MHz, a key frequency for IoT, smart meters, and industrial sensors in Europe, ensuring seamless compatibility with regional standards .
Stable Signal Performance
With 2.5dBi gain and VSWR <1.5, it minimizes signal loss, delivering reliable transmission for low-power wide-area (LPWA) networks like LoRa .
Easy 3M Sticky Installation
Features a 3M adhesive mount for tool-free attachment to flat surfaces (devices, walls, or equipment), ideal for space-constrained setups .
Durable & Weather-Resistant
Withstands -40~+85℃ temperatures and 5~95% humidity, plus vibration resistance (10-55Hz), suitable for outdoor and industrial environments .
Flexible Cable Options
Available with RG174 or RG1.13 cables and a UFL connector, ensuring compatibility with various IoT modules and devices .
Application scenarios
Smart Meters: Adhesive mounting on utility meters for remote data collection.
Warehouse Sensors: Monitor inventory on plastic crates/racks via LoRaWAN.
Medical Devices: Reliable connectivity for portable patient monitors.
Agricultural IoT: Soil moisture sensors in greenhouses/hydroponics.
Industrial Automation: Vibration-resistant monitoring on machinery housings.
Q: What wireless protocols does this support?
A: Ideal for 868MHz ISM band applications: LoRa, Sigfox, and proprietary IoT protocols.
Q: How strong is the adhesive?
A: Industrial-grade 3M tape provides secure mounting on clean, non-porous surfaces.
Q: What’s the cable length option?
A: Standard RG174 or RG113 cable included (specify when ordering).
Q: Can I reposition the antenna after installation?
A: The 3M adhesive allows one-time placement; repositioning may reduce effectiveness.
Q: Why choose vertical polarization?
A: Minimizes signal loss for ground-based devices vs. horizontal/circular polarization.
Q: What devices use UFL connectors?
A: Raspberry Pi, IoT development boards, cellular modules, and compact sensors.
Q: How does vibration resistance help?
A: Maintains signal stability in high-movement environments (conveyors/vehicles).
Q: Is this safe for medical/industrial use?
A: Yes - ROHS compliant and operates reliably in -40°C to +85°C environments.
