English
GL-OAN01
Asialeren
8517710000
100
Accepted
10000/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical character
GL-OAN01 | Specification |
Working Frequency | 700-960Mhz ，1710-2700Mhz ， 3300-4200Mhz ，4400-5000Mhz |
Impedance | 50 Ω |
Gain(dBi) | 3.0 dBi（890Mhz） 5.0 dBi（2Ghz） 3.1 dBi（3.7Ghz） 2.0 dBi（4.8Ghz） |
VSWR | <3 |
Operation Temperature | -40℃~+85℃ |
Power Capacity | 3W |

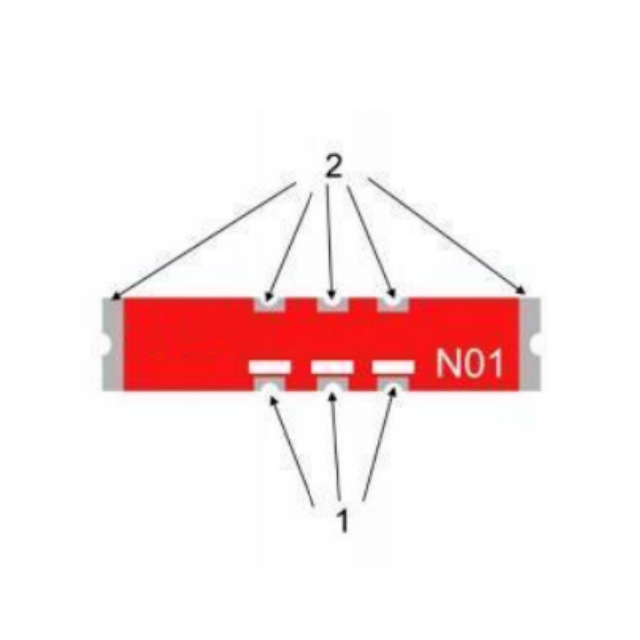

Structure
1 .Antenna signal feed 2 .Antenna welding fix end |
Differences between similar antennas
P/N | GL-ONA01 | GL-CA-L01 | GLSY02 |
Gain | 2-5 | 2-3.3 | 2 |
V.S.W.R. | 3 | 3.5 | 3.5 |
Product Introduction
1.Ultra-Compact Design
Dimensions of just 26.0×5.0×1.6 mm (smaller than a coin!) with ±0.1mm tolerance. Ideal for space-limited 5G/IoT devices.
2. Multi-Band 5G/4G/NB-IoT Support
Covers 700-960MHz, 1.71-2.7GHz, 3.3-4.2GHz, and 4.4-5.0GHz bands. Compatible with 2G/3G/4G/5G(Sub-6G)/Cat1/NB-IoT in one module.
3. High Efficiency & Gain
Peak efficiency up to 87% (2GHz band) and peak gain of 6.1dBi. Maintains stable performance across temperature/humidity changes.
4.Industrial-Grade Reliability
Operates in extreme conditions: -40°C to +85°C with 3W power capacity. RoHS compliant and humidity-resistant.
5. Simplified Integration
50Ω impedance with clear PCB pad routing design. Includes matching network recommendations for quick implementation.
IoT Smart Devices: NB-IoT/CatM sensors in agriculture/industrial monitoring
5G Routers/Gateways: Sub-6GHz connectivity for home/enterprise networks
Urban Infrastructure: Compact antennas for smart meters/city sensors
Drone Communications: Lightweight antenna for UAV telemetry (4.4-5.0GHz)
Vehicle Telematics: V2X modules requiring -40°C cold-start capability
Portable Medical Devices: Reliable signal in compact health monitors
Q: What frequency bands does GL-OAN01 support?
A: 700-960MHz, 1710-2700MHz, 3300-4200MHz, and 4400-5000MHz (covers 2G to 5G Sub-6GHz).
Q: What is the peak gain and efficiency?
A: Up to 6.1dBi gain and 87% efficiency (at 2GHz band). See spec table for band-specific values.
Q: Is this antenna suitable for industrial environments?
A: Yes. Rated for -40°C to +85°C operation with humidity resistance.
Q: How should I mount this SMD antenna?
A: Use SnAgCu solder reflow profile (peak 260°C for 20-40 sec). See page 11 for full soldering guidelines.
Q: What’s the VSWR performance?
A: VSWR <3 across all operating bands (per page 3 specifications).
Q: Does it need impedance matching components?
A: Includes recommended matching network (page 5: Series/Shunt components). Default 50Ω impedance.
Q: How is the antenna packaged for production?
A: Taped in reels of 2,000 pcs (44mm tape width). Moisture-sealed per IPC standards.
Q: Any special storage requirements?
A: Store at -10°C~40°C, 30-70% humidity. Avoid sulfur/chlorine exposure to prevent oxidation.
