Wide Frequency Range: Operates efficiently between 330-390MHz, ensuring versatile communication capabilities.
GL350IA
Asialeren
8517710000
10
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

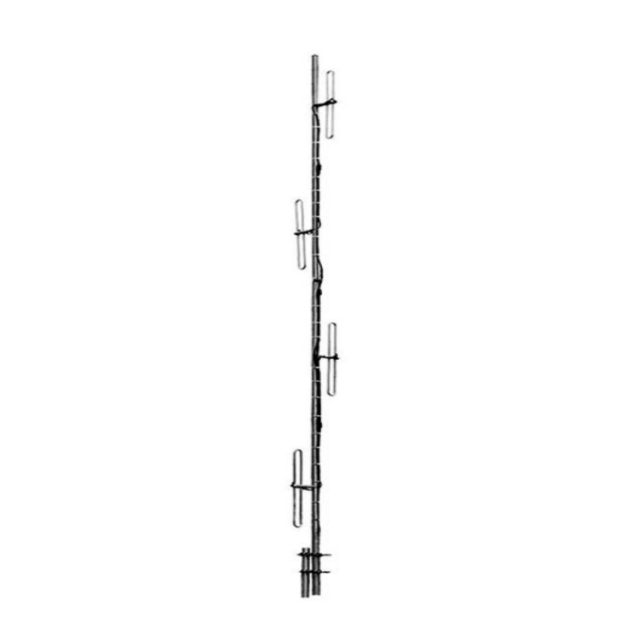

4 Folded Dipole Antenna | |
GL350IA | |
Electrical Index | |
Frequency-MHz | 330-390 |
Bandwidth-MHz | 16 |
Gain-dBi | Omni 9/Directional 12 |
Vertical Beamwidth-º | 13 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 500 |
Length-m | 3.2 |
Weight-kg | 10.0 |
Rated Wind Velocity-m/s | 60 |
Connector | N female or customization |
product introduction
Wide Frequency Range: Operates efficiently between 330-390MHz, ensuring versatile communication capabilities.
High Gain Options: Offers both omni (9dBi) and directional (12dBi) gain for flexible signal coverage.
Robust Design: Withstands rated wind velocities up to 60m/s, ensuring durability in harsh weather conditions.
Easy Installation: Lightweight at 10kg and 3.2m in length, facilitating straightforward setup and deployment.
Customizable Connector: Features N female connector or customization options to suit various system requirements.
Application scenarios
Public Safety Communications: Ideal for police, fire, and emergency services due to its reliable performance and wide bandwidth.
Military Operations: Supports secure and efficient communication in military field operations and tactical scenarios.
Broadcasting Services: Enhances TV and radio broadcasting signal reception and transmission within the specified frequency range.
Wireless Networking: Facilitates long-range wireless data transmission and reception for enterprise and campus networks.
Maritime and Aviation: Provides reliable communication links for ships and aircraft operating within the antenna's frequency band.
FAQ
Q: What is the frequency range of the GL350IA antenna?
A: The frequency range is 330-390MHz.
Q: What are the gain options for this antenna?
A: It offers omni gain of 9dBi and directional gain of 12dBi.
Q: Can this antenna withstand strong winds?
A: Yes, it is rated to withstand wind velocities up to 60m/s.
Q: What is the maximum power handling capacity of the antenna?
A: The maximum power handling capacity is 500W.
Q: Is the connector type customizable?
A: Yes, the antenna comes with an N female connector or can be customized according to requirements.
Q: What is the length and weight of the GL350IA antenna?
A: The antenna is 3.2 meters in length and weighs 10 kilograms.
4 Folded Dipole Antenna | |
GL350IA | |
Electrical Index | |
Frequency-MHz | 330-390 |
Bandwidth-MHz | 16 |
Gain-dBi | Omni 9/Directional 12 |
Vertical Beamwidth-º | 13 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 500 |
Length-m | 3.2 |
Weight-kg | 10.0 |
Rated Wind Velocity-m/s | 60 |
Connector | N female or customization |
product introduction
Wide Frequency Range: Operates efficiently between 330-390MHz, ensuring versatile communication capabilities.
High Gain Options: Offers both omni (9dBi) and directional (12dBi) gain for flexible signal coverage.
Robust Design: Withstands rated wind velocities up to 60m/s, ensuring durability in harsh weather conditions.
Easy Installation: Lightweight at 10kg and 3.2m in length, facilitating straightforward setup and deployment.
Customizable Connector: Features N female connector or customization options to suit various system requirements.
Application scenarios
Public Safety Communications: Ideal for police, fire, and emergency services due to its reliable performance and wide bandwidth.
Military Operations: Supports secure and efficient communication in military field operations and tactical scenarios.
Broadcasting Services: Enhances TV and radio broadcasting signal reception and transmission within the specified frequency range.
Wireless Networking: Facilitates long-range wireless data transmission and reception for enterprise and campus networks.
Maritime and Aviation: Provides reliable communication links for ships and aircraft operating within the antenna's frequency band.
FAQ
Q: What is the frequency range of the GL350IA antenna?
A: The frequency range is 330-390MHz.
Q: What are the gain options for this antenna?
A: It offers omni gain of 9dBi and directional gain of 12dBi.
Q: Can this antenna withstand strong winds?
A: Yes, it is rated to withstand wind velocities up to 60m/s.
Q: What is the maximum power handling capacity of the antenna?
A: The maximum power handling capacity is 500W.
Q: Is the connector type customizable?
A: Yes, the antenna comes with an N female connector or can be customized according to requirements.
Q: What is the length and weight of the GL350IA antenna?
A: The antenna is 3.2 meters in length and weighs 10 kilograms.
