GLF126
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications | |
Frequency Range(MHz) | 156-165 |
Impedance(ohm) | 50 |
Gain (dBi) | 6.5 |
Polarization | Vertical |
VSWR | ≤1.5 |
Maximum input power (W) | 50 |
Mechanical specifications | |
Connector | PL259 |
Cable | RG58A/U 4m |

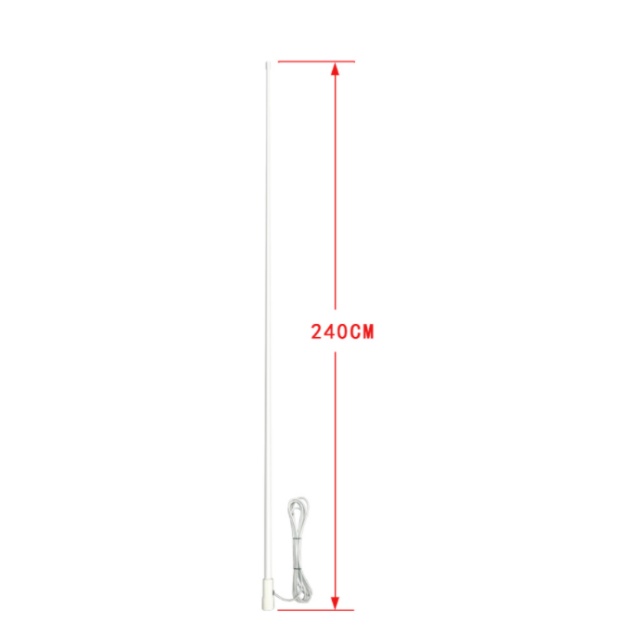

Height-m | 2.4 |
Radome Material | FRP |
Color | white |
Weight-KG | 0.6 |
Operating temperature (℃) | -50～80 |
Product Introduction
Optimal Frequency Range：The GLF126 VHF fiberglass antenna is designed to operate within the 156 - 165MHz frequency range. This makes it highly suitable for applications that rely on this specific VHF band, ensuring efficient signal transmission and reception.
Decent Gain and Low VSWR：With a gain of 6.5dBi, it can effectively strengthen signals, while the VSWR of ≤1.5 indicates efficient power transfer. This combination results in a stable and reliable connection, reducing signal loss and interference.

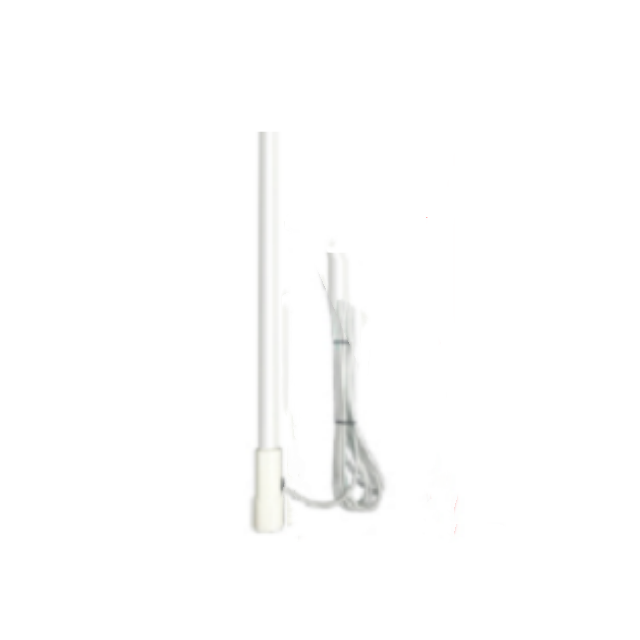

Sturdy Fiberglass Build：Constructed with an FRP (Fiberglass - Reinforced Plastic) radome, the GLF126 is durable and resistant to environmental factors. Fiberglass provides protection against moisture, UV radiation, and mechanical stress, ensuring a long - lasting performance.

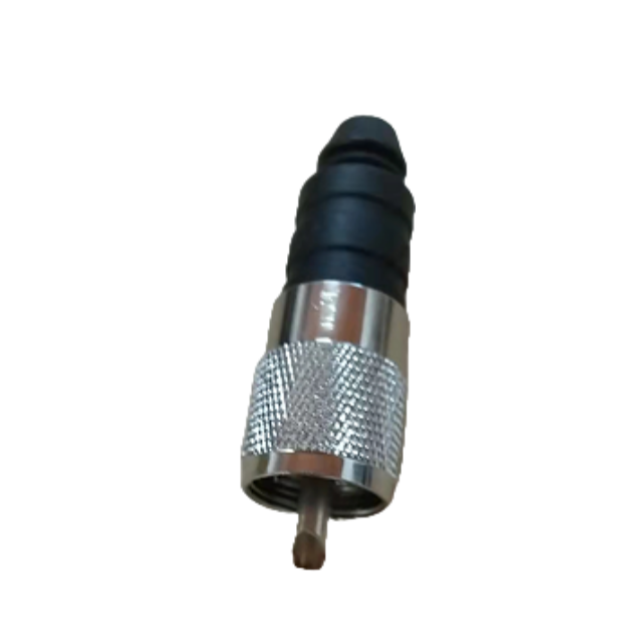

Versatile Connector and Cable：Featuring a PL259 connector and a 4m RG58A/U cable, the antenna offers flexibility in installation. The PL259 connector is widely used and easy to connect, and the 4m cable allows for convenient placement of the antenna.
Wide Operating Temperature Range：Operating within a temperature range of - 50℃ to 80℃, the GLF126 can function in diverse environmental conditions. This wide - range tolerance makes it suitable for use in different climates, from extremely cold regions to hot areas.
Application scenarios
Enhance marine communication on boats, yachts, or fishing vessels.
Strengthen emergency response systems in disaster-prone or remote regions.
Improve signal coverage for ham radio enthusiasts or off-grid communities.
Deploy in industrial sites requiring reliable VHF communication (e.g., mining, forestry).
FAQ
Q: Is this antenna suitable for saltwater environments?
A: Yes, the FRP radome resists salt corrosion, making it ideal for marine use.
Q: Can I shorten the 4m cable if needed?
A: Yes, but ensure proper sealing to maintain weatherproofing. Custom lengths are available upon request.
Q: Does it work with handheld VHF radios?
A: Yes, when paired with a compatible PL259-to-SMA adapter for handheld devices.
Q: What’s the maximum transmission range?
A: Range depends on terrain and radio power, but the 6.5dBi gain significantly boosts line-of-sight coverage.
Q: Is the antenna waterproof?
A: The radome is weatherproof, but use waterproof tape on connectors for submersion-prone areas.
Q: Can it be mounted on a vehicle?
A: Yes, its lightweight (0.6kg) design and durable build suit cars, trucks, or ATVs.
Q: Does it require a ground plane?
A: No, vertical polarization eliminates the need for a ground plane.
