GL1007
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
Frequency Range (MHz) | 470-862 |
Bandwidth (MHz) | 70 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 6-8 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Cable Length-m | 3 |
Connect Type | USB/IEC |
Working Temp(℃) | -40~85 |
Radome Color | Black |
Dimensions-mm | Ø42*130 |

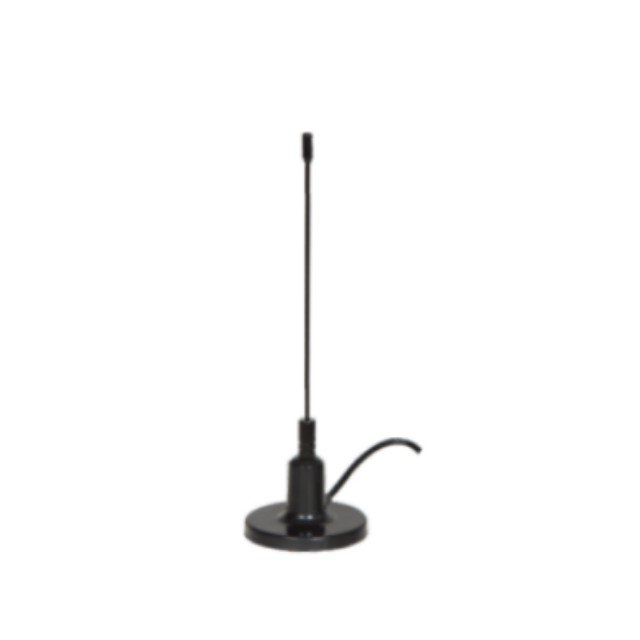

Product Introduction
Slim & Space-Saving Design
Measuring only Ø42×130 mm, this antenna features a sleek and compact design that can be easily placed anywhere—behind a TV, on a shelf, or mounted discreetly—without being obtrusive.
Wide Frequency Range for Full Channel Access
Covers 470–862 MHz, ensuring compatibility with all major digital TV broadcasts. Enjoy a wide variety of free local channels in high definition without monthly fees.
High Gain & Stable Signal Reception
With 6–8 dBi gain and vertical polarization, the antenna captures stable signals even in low-coverage areas, reducing signal drop and improving picture quality.
USB-Powered for Easy Setup
Features USB/IEC connectivity, allowing you to power the antenna directly from your TV’s USB port or a standard adapter. No external power supply or complicated wiring is needed.
Durable & All-Environment Ready
Built to operate in temperatures from -40°C to 85°C, this antenna is not only ideal for indoor use but also reliable in varying climates, including unheated spaces or hot media cabinets.
●City apartments and dormitories: Compact and discreet, ideal for spaces with limited room capacity, easily receives local HD channels.
●Rentals or temporary accommodations: Plug and play, easy to move, and doesn't damage interior décor.
●Second TV for the home: Provides a low-cost TV signal solution for bedrooms, kitchens, or studies.
●Travel or mobile scenarios: Pairs with a laptop or portable TV, suitable for temporary use in hotels, campervans, etc.
Q: How many channels can I pick up with this antenna?
A: The number of channels varies based on your location and signal environment. Use the antenna near a window for best results, and perform a channel scan on your TV to see available local broadcasts.
Q: Does the antenna require a separate power source?
A: It can be powered via the USB port on your TV or any USB adapter, making it energy-efficient and easy to install.
Q: Can I use this antenna with any TV?
A: Yes, as long as your TV has a USB port and a compatible input (IEC connector), it will work with most modern HDTVs.
Q: What is the cable length?
A: The cable is 3 meters long, providing flexibility in antenna placement.
Q: Is the antenna suitable for outdoor use?
A: It is designed primarily for indoor use, but its wide temperature tolerance allows for installation in garages, covered balconies, or other semi-protected areas.
Q: What does vertical polarization mean?
A: Vertical polarization helps minimize interference and improves signal stability, especially in urban environments where signals may be vertically oriented.
