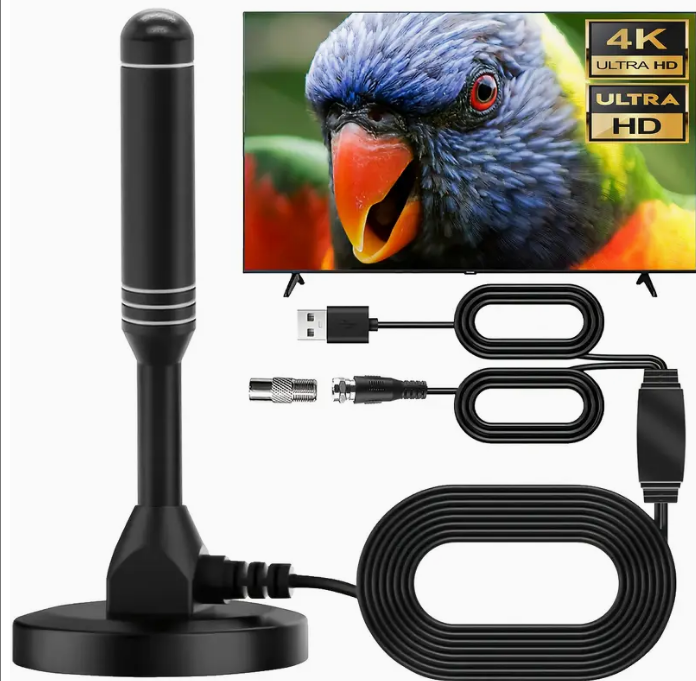

GL-DYT005
asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Description |
Frequency Range-MHz | 174-230/470-860 |
Gain-dBi | 5 |
Amplifier Gain-dBi | 21 |
V.S.W.R | ≤1.5 |
Impedance-ohm | 75 |
Connector Type | F-head |
Coaxial cable-m | 4 |
Color | black |
Mounting | 3M tape |
Radome color | black |
Operation Temperature-℃ | -45~85 |
Storage Temperature-℃ | -45~85 |
Dimension-mm | Φ62*107 |
Wide-band Frequency Coverage
Supports 174-230/470-860MHz, enabling reception of all free-to-air HD channels in VHF and UHF bands for comprehensive channel access 。
Enhanced Signal Gain
Combines 5dBi antenna gain with 21dB amplifier gain to boost weak signals, ensuring clear 1080P HD quality within a 50-mile range 。
Omni-directional Reception
Multi-directional capability eliminates the need for constant adjustment, ideal for areas with scattered broadcast towers 。
Easy Installation
Comes with 4m coaxial cable and 3M tape mounting, allowing quick setup on walls, windows, or rooftops without tools 。
Rugged Environmental Tolerance
Operates from -45℃ to 85℃, suitable for extreme climates, with a durable black radome resisting UV and moisture 。
Application scenarios
Urban Apartments: Receive nearby broadcast towers clearly despite building interference.
Suburban Homes: Access major networks 30-50 miles away without cable.
Rural/Cabin Living: Overcome distance limitations for essential news and entertainment.
RV/Camper Setup: Compact size and wide temp range make it perfect for mobile use.
Budget-Conscious Households: Eliminate cable/satellite fees while getting local HD sports and shows.
Second TV Locations: Easily add TV service to bedrooms, garages, or workshops.
FAQ
Q: What channels can I get with this antenna?
A: You'll receive all available free over-the-air (OTA) digital broadcasts in your area (ABC, CBS, NBC, FOX, PBS, CW, etc.). Use the FCC DTV Reception Maps website to check local availability.
Q: Do I need an internet connection?
A: No. This antenna receives free broadcast TV signals directly from local towers; no internet or subscription is required.
Q: How difficult is the installation?
A: It's very easy. Simply peel off the 3M tape backing, stick the antenna to a window/wall facing the general direction of broadcast towers, and connect the cable to your TV's ANT/IN port. Scanning for channels takes minutes.
Q: Will the adhesive tape damage my wall?
A: The high-quality 3M tape is strong yet removable. Follow instructions carefully (clean surface, apply pressure) for best hold and minimal residue upon removal.
Q: Does it work with all TVs?
A: Yes, if your TV has a coaxial (ANT/IN) port and a built-in digital tuner (ATSC 1.0, standard for HDTVs since 2007), it will work. For very old analog TVs, you'd need a digital converter box.
Q: Why does it need power?
A: Power is required for the built-in 21dB signal amplifier. This boosts weak signals for superior long-range reception and clearer picture quality. The included USB power adapter plugs into any outlet or TV USB port.
Q: Can it be used outdoors?
A: While primarily designed for indoor use, its weather-resistant radome (-45°C to 85°C) allows for protected outdoor placement (e.g., under an eave, patio cover, or in an attic). Avoid direct prolonged rain/sun exposure.
Q: What if I get weak signal or few channels?
A: Try repositioning the antenna (higher location, different window/wall), ensure the amplifier is powered, rescan channels on your TV, and check for local obstructions (hills, dense buildings). Use online signal checkers for tower locations near you.
