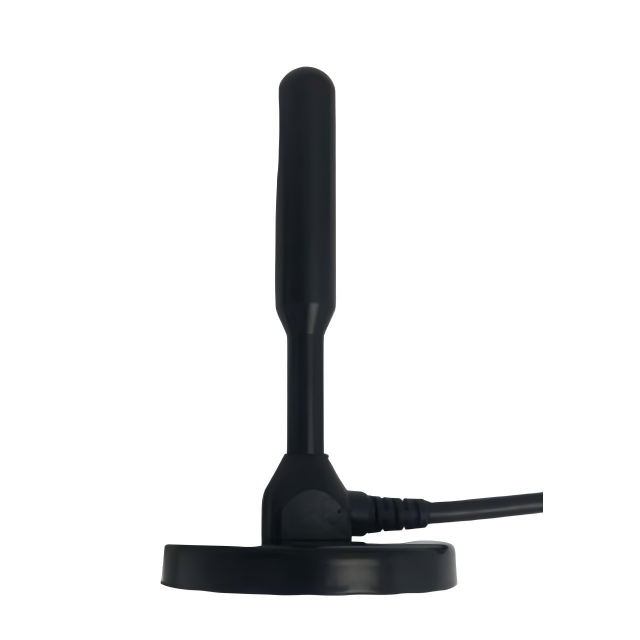

GL-DYG852
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 850/900/1800/1900/2100 |
Input Impedance (Ω) | 75 |
V.S.W.R | ≤2.0 |
Gain (dBi) | 10 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Radiation Pattern | 1/4 wavelength. |
Mechanical Specifications | |
Cable Length | RG58 5m |
Connect Type | SMA |
Working Temp(℃) | -40~85 |
Radome Color | Black |
Dimensions-mm | Φ70*127 |
Differences between similar products
P/N | GL-DYG852 | GL-DYG851 | GL-DYG850 |
Gain-dBi | 10 | 5 | 5 |
Dimensions-mm | 70*127 | 48*237 | 50*284 |
Product Introduction
1. Multi-Band Coverage
Supports 850/900/1800/1900/2100MHz frequency bands, suitable for 2G/3G/4G networks, and compatible with a wide range of communication devices.
2. High-Gain Performance
10dBi high gain enhances signal reception and transmission capabilities, improving communication stability.
3. Wide Operating Temperature Range
Can operate stably in extreme environments from -40°C to 85°C, suitable for outdoor and in-vehicle use.
4. High-Quality Cable and Connector
Equipped with a 5m RGS8 cable and SMA connector, it provides flexible installation and reliable connection.
5. Durable Design
Black UV-resistant radome, 75Ω impedance, and 50W power handling, suitable for long-term outdoor use.
Applications
In-vehicle communication systems (such as taxis, logistics vehicles, and buses)
Outdoor remote monitoring and IoT devices
Signal enhancement in rural or remote areas
Mobile base station backup antenna
Industrial-grade wireless communication equipment (such as routers and modems)
FAQ
Q: Does this antenna support 5G networks?
A: No. It is compatible with the 2G/3G/4LTE bands (850–2100MHz) and does not include the 5G band.
Q: Is the antenna waterproof?
A: Yes, the black radome is rain and dustproof and suitable for outdoor installation.
Q: Can the cable be customized in length?
A: The standard length is 5 meters. If you require a custom length, please contact customer service.
Q: Is it suitable for indoor use?
A: Yes, but it is better suited for outdoor use or in a vehicle for optimal signal quality.
Q: What devices are compatible?
A: Compatible with most 4G routers, modems, and in-vehicle terminals with an SMA connector.
