GLW10FG3B
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| |||
Frequency Range (MHz) | 950-1020 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 3 | ||
Polarization | Vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ20*300 | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||

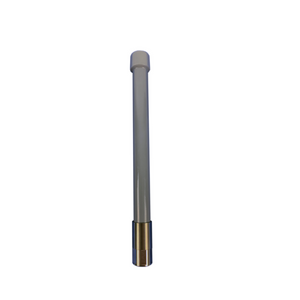

Product Introduction
1. Professional UHF Band Coverage
Specially optimized for the 950-1020MHz band, offering stable signals and suitable for professional communication systems.
2. Omnidirectional Signal Transmission
A 360° horizontal beamwidth ensures complete coverage, suitable for wide-area applications.
3. High-Strength Fiberglass Housing
Corrosion-resistant and UV-resistant, suitable for long-term outdoor use and a long service life.
4. High Power Capacity
Maximum input power of 150W, supporting high-power communication needs with stability and reliability.
5. Compact and Lightweight Design
Measuring only Φ20*300mm and weighing 0.2kg, it is easy to install and saves space.
Application Scenarios
●UHF Band Communication Base Station
●Industrial Remote Control and Telemetry Systems
●UAV Data Link Communication
●Emergency Communications and Public Safety Networks
FAQ
Q: What frequency range does this antenna cover?
A: It covers the 950-1020MHz UHF band.
Q: What is the antenna's gain? What are the advantages?
A: The gain is 3dBi, providing omnidirectional coverage while providing stronger signal transmission capabilities.
Q: Is the antenna waterproof and corrosion-resistant?
A: Yes, the fiberglass housing is waterproof and corrosion-resistant, making it suitable for outdoor use.
Q: What is the maximum supported power?
A: The maximum input power is 150W.
Q: How is it mounted?
A: It is fixed via an N-K connector.
Q: What is the operating temperature range?
A: -40°C to +70°C, suitable for extreme climates.
| |||
