GLC9FG6E
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range (MHz) | 824-960 | |
Bandwidth (MHz) | 134 | |
Horizontal Half-power Beamwidth (°) | 360 | |
Vertical Half-power Beamwidth (°) | 25 | |
Gain (dBi) | 6 | |
Polarization | Vertical | |
VSWR | ≤1.5 | |
Intermodulation IM3(2×43dBm carrier) (dBc) | ≤-150 | |
Average Power, Maximum (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Specifications | ||
Dimension (mm) | Ø32×560 | |
Net Weight (Kg) | 0.68(installation kit included) | |
Radome Material | Fiberglass | |
Radome Color | White | |
Connector | N Female | |
Environmental Specifications | ||
Application | Outdoor | |
Operating Temperature (℃) | -40 to +70 (-40 to 158℉) | |
Humidity (%) | 5 to 95 | |
Survival Wind Velocity (km/h) | 200 | |
Mounting Specifications | ||
MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | ||
Mounting Mast Diameter (mm) | Φ 40 to 70 | |
Product Introduction

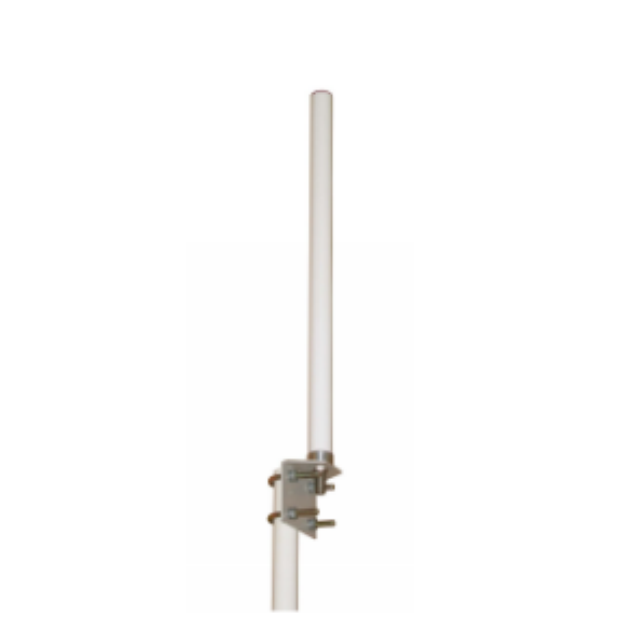

Wide Frequency Coverage：The GLC9FG6E antenna covers a frequency range of 824 - 960MHz with a bandwidth of 134MHz. This wide - band characteristic makes it suitable for various wireless communication systems operating within this frequency spectrum, providing flexibility for different applications.
High Gain and Omnidirectional Radiation：With a gain of 6dBi and a 360° horizontal half - power beamwidth, the antenna can effectively transmit and receive signals in all directions. This omnidirectional radiation pattern ensures comprehensive coverage, making it ideal for applications where a wide - area signal distribution is required.
Low VSWR：The voltage standing wave ratio (VSWR) of ≤1.5 indicates efficient power transfer. Low VSWR reduces signal reflection, which is crucial for maximizing the power delivered to the antenna and enhancing the overall performance of the communication system.
Durable Fiberglass Construction：Made of fiberglass, the antenna is both lightweight and durable. Fiberglass provides good protection against environmental factors such as moisture, UV radiation, and mechanical stress. The white fiberglass radome also gives it an aesthetically pleasing appearance.
Wide Operating Environment：Operating within a temperature range of - 40℃ to +70℃ and a humidity range of 5 - 95%, the GLC9FG6E can function in diverse environmental conditions. It can withstand a survival wind velocity of 200 km/h, making it suitable for outdoor use in various climates.
Application scenarios
Strengthen 4G/LTE signals in remote farms, villages, or mountainous regions.
Deploy as a base station antenna for industrial machinery or IoT sensors.
Enhance connectivity for outdoor security cameras or emergency communication systems.
Ideal for telecom operators expanding network coverage in harsh environments.
FAQ
Q: Is this antenna compatible with 5G networks?
A: No, it operates in the 824-960MHz range, optimized for 3G/4G and LTE networks.
Q: Can it be used in coastal areas with high salt exposure?
A: Yes, the fiberglass radome resists corrosion and environmental wear.
Q: Does it require a ground plane for installation?
A: No, its omnidirectional design eliminates the need for a ground plane.
Q: What’s the maximum mast size supported?
A: Mounting brackets fit masts with diameters of 40-70mm.
Q: Is the N-female connector waterproof?
A: While the antenna is weatherproof, use a waterproofing tape or sealant for connectors in exposed areas.
Q: Can it handle lightning strikes?
A: Pair with a surge protector for lightning-prone regions to safeguard equipment.
Q: Is the cable included?
A: No, only the antenna and mounting kit are included. Purchase RG-rated cables separately.
