GLV2FG3B
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 200-270 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 3 | ||
Polarization | Vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ32*800 | ||
Antenna weight (Kg) | 0.6 | ||
Radome material | fiberglass | ||
Radome color | grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||

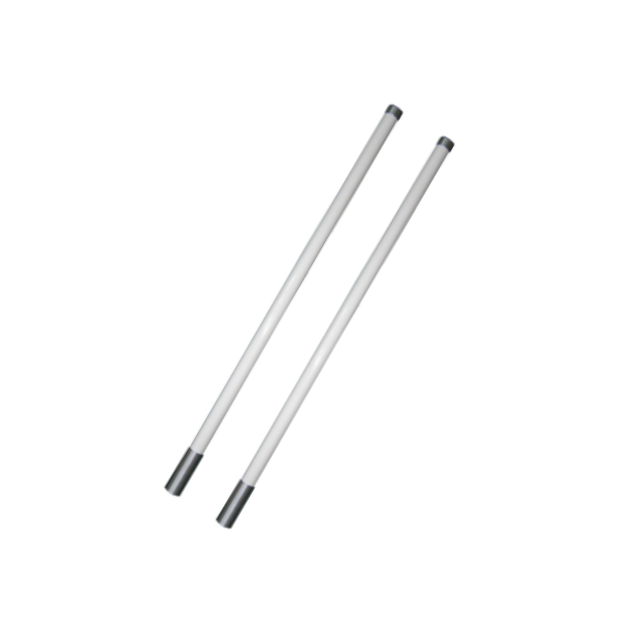

Product Introduction
1. High Gain in the Low-Frequency Band, Enhanced Signal Coverage
Designed for the 200-270MHz low-frequency band, 3dBi gain maintains the inherent advantages of low-frequency signals, offering strong penetration and long transmission distance, while also enhancing signal strength through gain boost.
2. Omnidirectional Signal Transmission
360° horizontal beamwidth provides comprehensive coverage, suitable for a wide range of areas.
3. High-Strength Fiberglass Housing
Abrasion-resistant, corrosion-resistant, and UV-resistant, suitable for long-term outdoor use.
4. High-Power Input Support
Maximum input power of 150W, suitable for high-power communication systems.
5. Wide Temperature Compatibility and High Stability
Operating temperature range: -40°C to +70°C, humidity range: 5%-95%, suitable for extreme climates.
Application Scenarios
Outdoor Base Stations and Repeaters
Maritime and Ship Communication Systems
Remote Monitoring and Data Backhaul
Emergency Rescue and Public Safety Communications
FAQ
Q: What is the gain of this antenna? What applications is it suitable for? A: With a gain of 3dBi, it's suitable for medium-range communications, such as base stations, ships, and remote monitoring.
Q: Is the antenna waterproof and corrosion-resistant?
A: Yes, the fiberglass housing is waterproof and corrosion-resistant.
Q: What is the maximum supported power?
A: The maximum input power is 150W.
Q: What are the dimensions and weight of the antenna?
A: The dimensions are Φ32*800mm and the weight is approximately 0.6kg.
Q: Does it support vertical polarization?
A: Yes, only vertical polarization is supported.
