EnglishEnglish
GL-DYG827
Asialeren
85177100000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

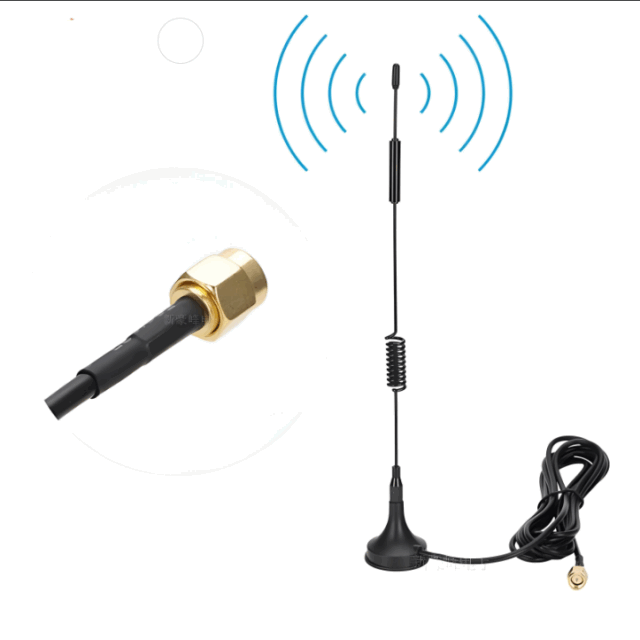

3G Magnet Antenna | |
GL-DYG827 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170 |
VSWR | ＜1.5 |
Gain-dBi | 5 |
Normal Impedance -Ω | 50 |
Polarization | RHCP |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | SMA male |
Antenna Dimension-mm | 45*315 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
9dbi Full Band LTE SMA Male Magnetic Base Antenna for Signal Boost
The LTE full band 9dBi gain magnetic base antenna is an essential tool for enhancing signal strength and improving network connectivity. With its impressive gain, this antenna ensures a stable and reliable connection, even in areas with weak signal coverage. Its magnetic base allows for easy installation on any metal surface, providing flexibility and convenience. Whether you are at home, in the office, or on the go, this antenna will significantly boost your signal reception, allowing for faster data speeds and better call quality. Say goodbye to dropped calls and slow internet connections with the LTE full band 9dBi gain magnetic base antenna. Experience seamless connectivity like never before.
Application Scenarios
1. Radio Communication & Broadcasting
Used in AM/FM radios for improved signal reception, especially in portable or car radios where directional tuning enhances clarity.
Suitable for shortwave (SW) and medium-wave (MW) receivers, leveraging its magnetic core for better sensitivity.
2. Direction Finding (DF) & Signal Detection
Applied in lightning detection systems to measure electromagnetic fields from lightning strikes by analyzing induced voltages in orthogonal coils
Used in geophysical surveys and military/commercial DF systems for locating electromagnetic signal sources.
3. Industrial & Scientific Measurement
Deployed in magnetic field strength measurement devices for research or industrial monitoring.
Utilized in power grid monitoring to detect geomagnetically induced currents (GICs) caused by solar storms, helping prevent transformer damage.
FAQ
Q: What is the GL-DYG827 magnet antenna used for?
A: Typically, this type of antenna is used for vehicle-mounted communications, such as CB radio, GMRS, amateur radio (HAM), 4G/LTE, GPS, or mobile signal boosting.
Q: What frequency range does it support?
A: The exact frequency range depends on the model, but similar antennas often cover:
VHF (136-174 MHz)
UHF (400-520 MHz)
LTE/4G (700-2700 MHz)
GPS (1575 MHz)
Check the product specifications for exact details.
Q: How strong is the magnetic base?
A:Most magnetic-mount antennas have a strong neodymium magnet that provides a secure hold on vehicle roofs or metal surfaces.
It should withstand high speeds (100+ km/h) but may lose grip if hit by branches or in extreme conditions.
Q: Can it be used on a non-metal surface?
A:No, the magnetic base requires a ferrous (metal) surface for proper attachment.
For fiberglass or non-metal vehicles, consider a ground plane-independent antenna or an adhesive mount.
Q: What is the cable length and connector type?
A:Common cable lengths: 3m, 5m, or 6m (check product details).
Connector type: Usually SMA, NMO, or TNC (ensure compatibility with your radio).
Q:. Is it waterproof?
A: Most magnetic antennas are IP67 or IPX5 rated, meaning they resist rain and splashes but should not be submerged.
